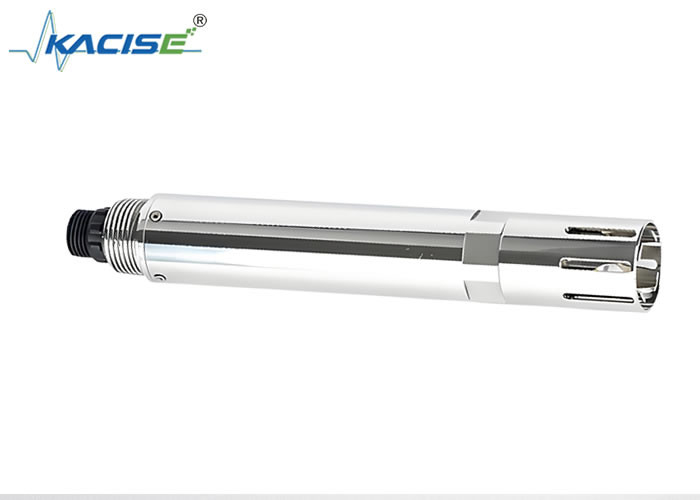

Industrial-Grade Online Ozone Content Sensor
Product Introduction
KACISE’s Industrial-Grade Online Ozone Content Sensor is designed for continuous ozone monitoring in industrial water treatment processes. With a wide measurement range of 0-20.00 mg/L and automatic temperature compensation, it delivers accurate results in varying conditions. The sensor features a durable 316L stainless steel body and IP68 protection, ensuring reliability in harsh environments. Its low power consumption and easy installation make it a cost-effective solution for industrial applications.
| Model | KWS-652 | |
| Measurement principle | Constant voltage method | |
| Range and resolution | 0~2.000mg/L | 0.001mg/L |
| 0~20.00mg/L | 0.01mg/L | |
| Accuracy | 0~2.000mg/L | ±5%,±0.3℃ |
| 0~20.00mg/L | ±0.05,±0.3℃ | |
| Cleaning method | / | |
| Temperature compensation | Automatic temperature compensation (Pt1000) | |
| Output method | RS-485 (Modbus RTU), 4-20 mA | |
| Storage temperature | -5~65℃ | |
| Working conditions | 5~50℃, <0.1MPa, pH: 4~9 | |
| Casing material | 316L | |
| Installation method | Flow cell installation, 3/4 NPT | |
| Power consumption | 0.2W@12V | |
| Power supply | 12~24V DC | |
| Protection level | IP68 | |
Dimensions
Note: The sensor connector is a male M16-5-core waterproof connector.
