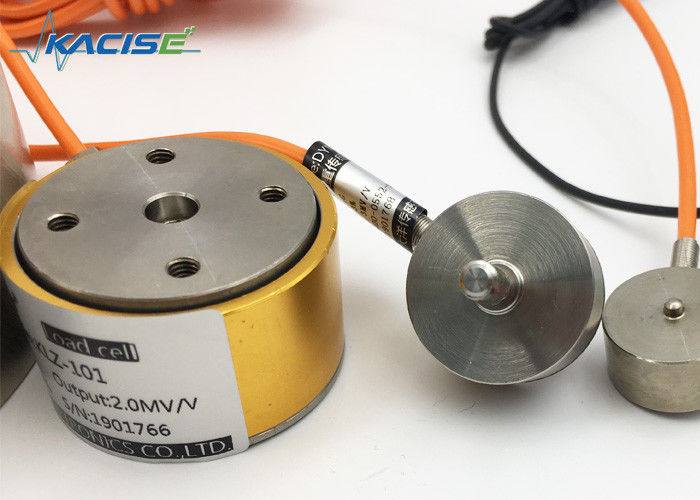

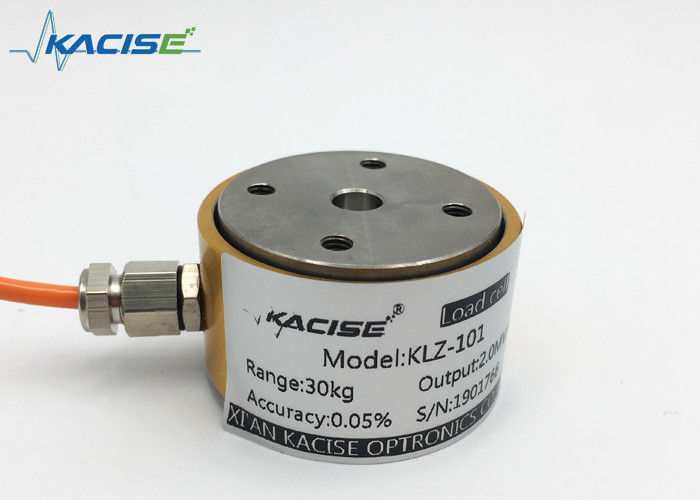

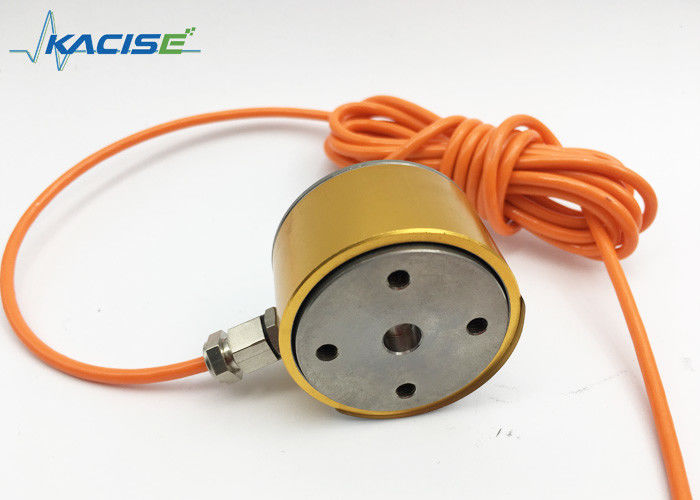

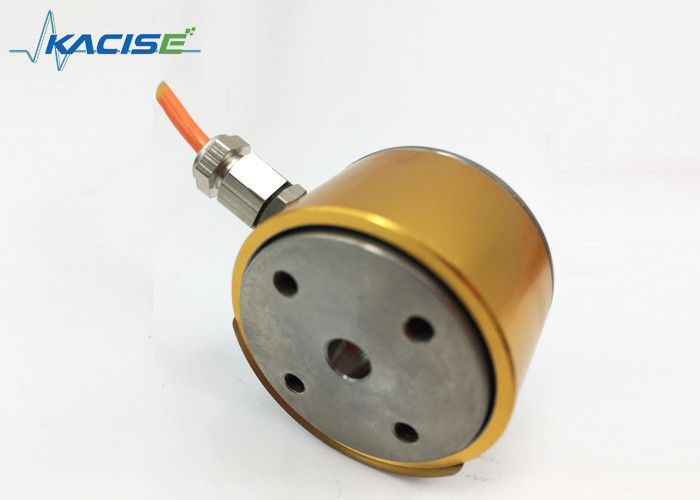

High Accuracy Load Cell Sensor Column Type Stainless Steel Material

High Accuracy Load Cell Sensor Column Type Stainless Steel Material

  • High Accuracy Load Cell Sensor Column Type Stainless Steel Material
  • High Accuracy Load Cell Sensor Column Type Stainless Steel Material
  • High Accuracy Load Cell Sensor Column Type Stainless Steel Material
  • High Accuracy Load Cell Sensor Column Type Stainless Steel Material
High Accuracy Load Cell Sensor Column Type Stainless Steel Material
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KCZ-401
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Carton / Wooden box
Delivery Time: 7 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Capacity: 5, 10, 20, 50, 100kN Sensitivity: 1.0±10%mV/V
Hysteresis: 0.2%F.S Non-linearity: 0.2%F.S
Zero Balance: ±0.05mV/V Material: Stainless Steel
High Light:

load cell weight sensor

,

Tension Load Cell

,

strain gauge weight sensor

High Accuracy Stainless Steel Column Type Load Cell



Features And Applications



Low profile, small deflection and mini dimension;

Made of stainless steel;

IP66 protection, customizable;

Suitable for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics and other industrial testing and control system



Technical Specifications



Capacity 5, 10, 20, 50, 100kN
Sensitivity 1.0±10%mV/V
Zero balance ±0.05mV/V
Non-linearity 0.2%F.S
Hysteresis 0.2%F.S
Repeatability 0.1%F.S
Creep (30min) 0.1%F.S
Temp.effect on output 0.05%F.S/10℃
Temp.effect on zero 0.05%F.S/10℃
Input impedance 780±20ohm
Output impedance 700±10ohm
Insulation ≥5000M ohm/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60℃
Operation temp range -20~80℃
Safe overload 150%F.S
Ultimate overload 200%F.S
Cable size Φ5x4m
Material Stainless steel
IP class IP66
Capacity 5, 10, 20, 50, 100kN
Sensitivity 1.0±10%mV/V





Dimensions and Connection



High Accuracy Load Cell Sensor Column Type Stainless Steel Material 0High Accuracy Load Cell Sensor Column Type Stainless Steel Material 1
