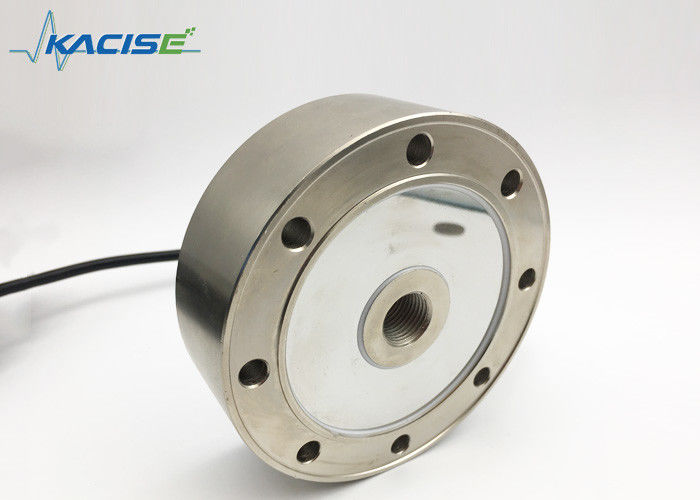

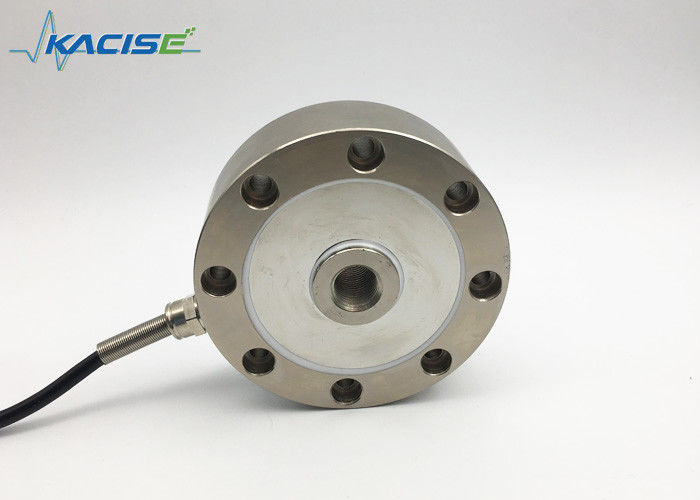

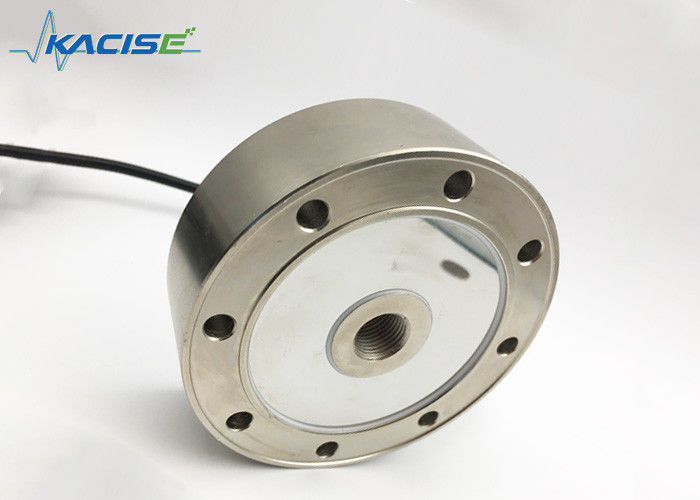

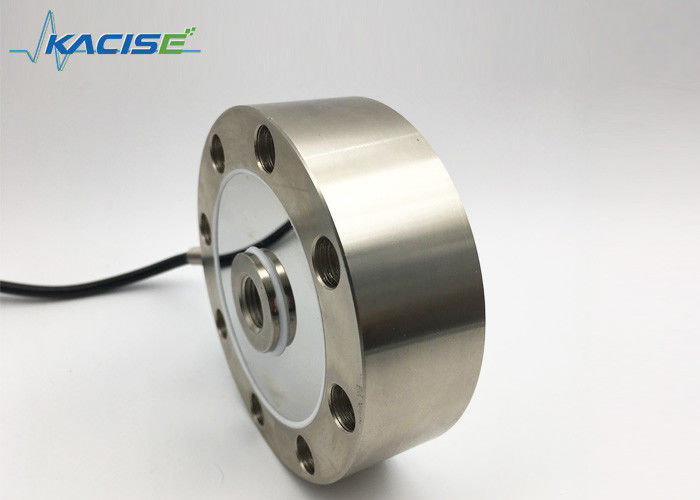

IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity

IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity

  • IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity
  • IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity
  • IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity
  • IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity
IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KCZ-201
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Carton / Wooden box
Delivery Time: 7 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Capacity: 50, 100, 200, 300, 500kg Rated Output: 2.0±0.1%mV/V
Zero Balance: ±2%F.S. Non-linearity: 0.03%F.S
Hysteresis: 0.03%F.S Repeatability: 0.03%F.S
High Light:

load cell weight sensor

,

Tension Load Cell

,

strain gauge weight sensor

KCZ-201 Spoke load cell



1.Features and Applications



Low profile with small deflection .Made of stainless steel Suitable for automotive press fit, automated assembly, 3CS products testing, new energy product accembly, medical testing, robotics, mold assembly and other industrial testing and controlling system.



2.Technical Specifications



Capacity 50, 100, 200, 300, 500kg
Rated output 2.0±0.1%mV/V
Zero balance ±2%F.S.
Non-linearity 0.03%F.S
Hysteresis 0.03%F.S
Repeatability 0.03%F.S
Creep (30min) 0.03%F.S
Temp.effect on output 0.03%F.S/10℃
Temp.effect on zero 0.03%F.S/10℃
Input impedance 780±20ohm
Output impedance 700±10ohm
Insulation ≥5000M ohm/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60℃
Operation temp range -20~80℃
Safe overload 150%F.S
Ultimate overload 200%F.S
Cable size Φ5x4000mm
IP class IP69
Capacity 50, 100, 200, 300, 500kg
Rated output 2.0±0.1%mV/V
Zero balance ±2%F.S.



3.Dimensions and Connection



IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity 0

4.Mounting dimension



Cap (t) A B C D E F G H J K M
0.11~1.76 133.4 76.2 25.4 15.4 30.7 30.2 57.7 14.2 13 20.6 M12
2.2 136.7 76.2 25.4 18.4 36.8 36.6 55.6 16.6 13 12.5 M12
4.4 171.5 95.3 38.1 21.4 43.9 432.9 73.8 22.9 20.5 22.2 M20






5.Product Details
IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity 1
