IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range

IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range

  • IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range
  • IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range
  • IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range
  • IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range
IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KUA-34-12FC-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 9 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Frequency: 34KHz±5% Range: 0.5~12m
Minimum Impedance: 930Ω±20% Capacitance: 6900pF±20% @1KHz
Pressure: ≤3kg Or 0.3MPa Housing Materia: PTFE
IP Grade: IP68 Working Temperature: -40~+80℃
High Light:

waterproof ultrasonic sensor

,

ultrasonic fuel level sensor



12m Range anti-corrosion Transducer Model C(remote: KUA-34-12FC-F)





Item Parameters
Name 12m Range anti-corrosion Transducer Model C
Model KUA-34-12FC-F
Frequency 34KHz±5%
Range 0.5~12m
Minimum
impedance
930Ω±20%
Capacitance 6900pF±20% @1KHz
Sensitivity emits voltage:650Vpp,distance 0.6m,
echo amplitude 350mV
Working voltage Peak point voltage<1500VPP
Working
temperature
-40~+80℃
Pressure ≤3kg or 0.3MPa
Angle (Beam width) half-power angle@-3dB:8°±2,
Sharpness angle: 18°±4
Housing material PC, PTFE
Usage ultrasonic level sensor, monitor,
anti-collision, security
IP grade IP68
Weight 1370g±5%(cable length: 10m)

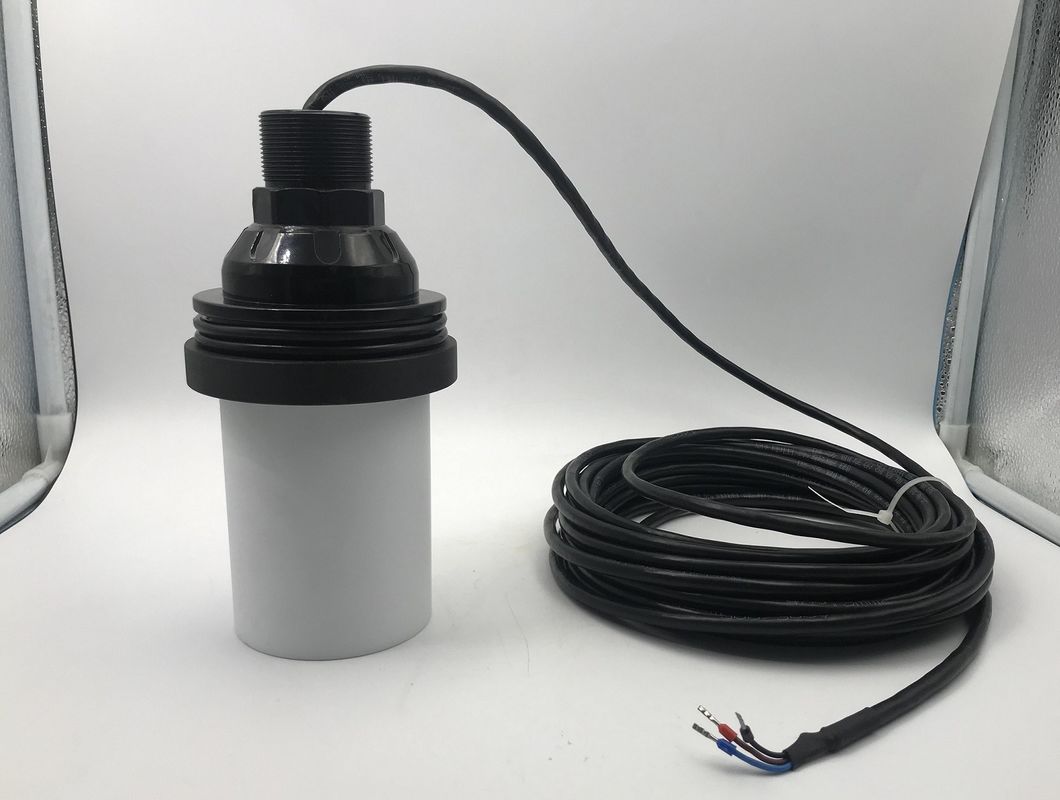

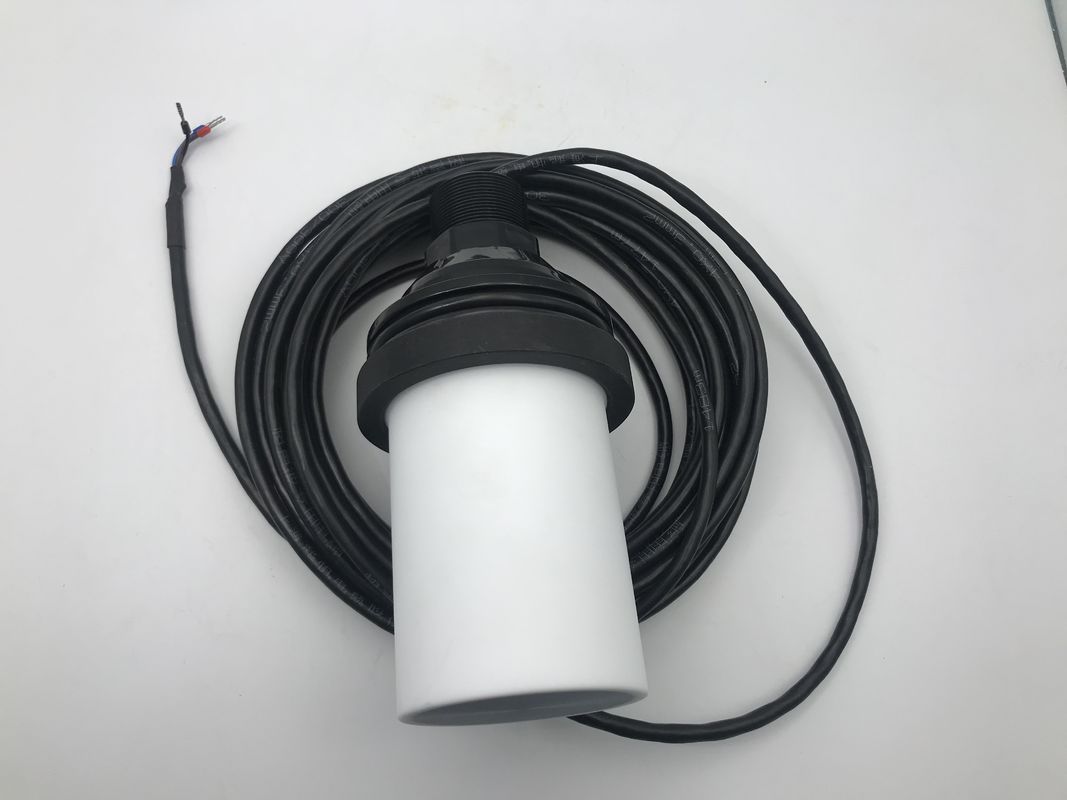

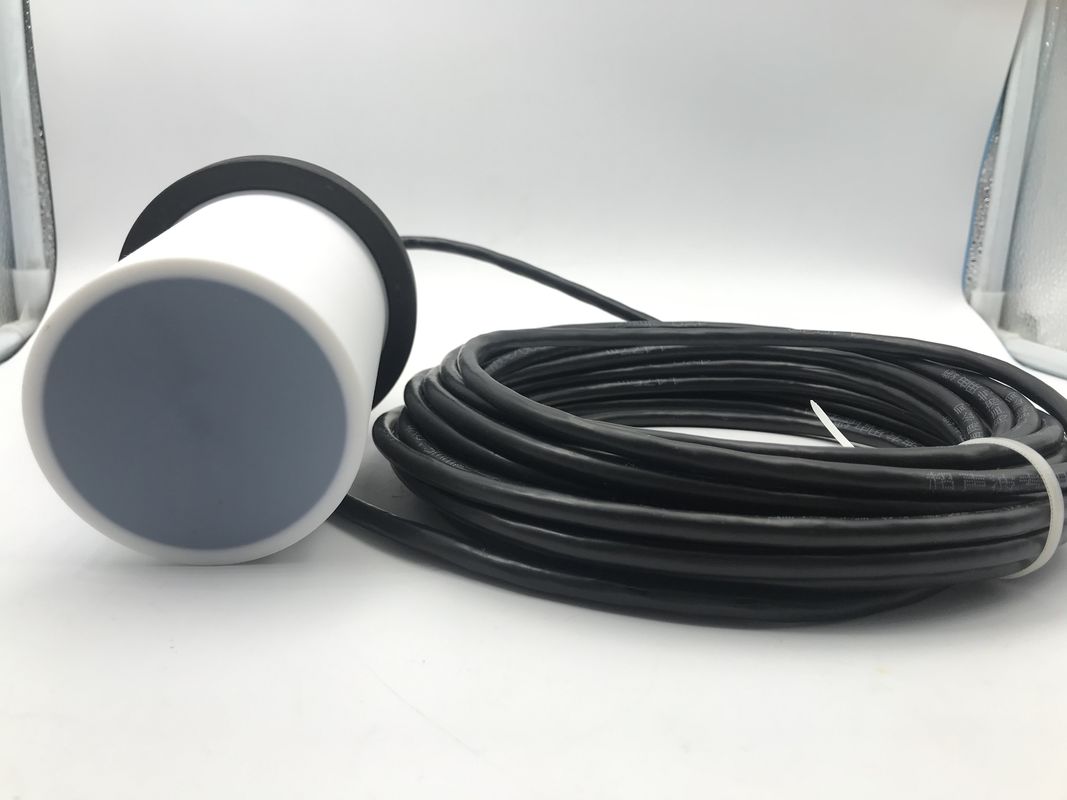

IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range 0

IP68 Waterproof Ultrasonic Sensor PTFE Housing Material With 0.5 - 12m Range 1



Company Information

Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years.
