Name: KUFS2000A2 Wall Mount Inline Ultrasonic Flow Meter Model: KUF2000
Brand: KACISE Accuracy: High Accuracy Within ±0.5%
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

       KUF2000 Series Inline Ultrasonic Flow Meter





Introduction



KUF2000 series inline ultrasonic flow meter is consist of the main unit and inline ultrasonic sensor.

The measuring range of π type inline ultrasonic flow meter is D N15mm~DN32mm,by flange

connection or thread connection. IP68 protection level. measuring temperature range -30℃~160℃, P/N

0~4.0Mpa, high accuracy within ±0.5%.

The measuring range of Standard inline type ultrasonic flow meter is DN40mm~DN1000mm, with high protection class of IP68, measuring fluid temperature of -30℃~160℃, pressure range of 0~2.5Mpa, high accuracy within ±0.5%.

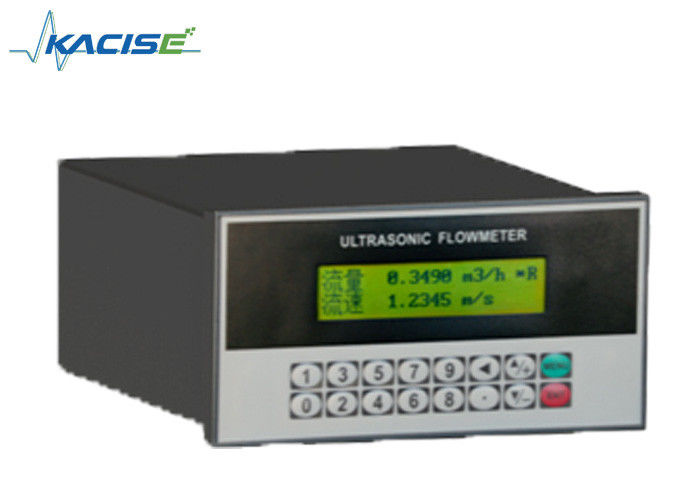

KUFS2000A2 Wall  Mount Inline Ultrasonic Flow Meter



The KUFS2000A2 flow meter can be installed on the wall or in instrument box, protection grade is IP67. Suitable for pipe sizes from DN15mm to DN6000mm.





KUF2000 Ultrasonic Flow Meter High Protection Class For Industrial Automation 0



KUF2000 Ultrasonic Flow Meter High Protection Class For Industrial Automation 1



Working Condition

  Main Unit Sensor
Protection IP67 IP68
Humidity ≤85%RH
Temperature -20~60℃ -30~160℃



Basic Parameters

Accuracy ±1%
Velocity Range 0~±10m/s, Bi-directional measurement
Pipe Size DN15~DN6000
Temperature - 30~160℃
Type of Liquid

Single liquid can transmit sound wave. such as water,

sea water, sewage, oil, chemicals , alcohol, etc

Pipe Material

Carbon steel, stainless steel 304, stainless steel 316.

Flange standard GB/T9119-2000, GB/T81-94

Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)

1 way OCT pulse output( Pulse width 6 ~ 1000ms)

1 way relay output

Signal Input

3 way 4-20mA input, achieve to heat measurement by

connecting PT100 platinum resistor.

Interface RS485, support MODBUS
Data Storage SD card regularly store the pre-set results (optional)
Power Supply DC8~36V or AC85~264V



KUFS2000B Panel Mount Inline Ultrasonic Flow Meter



The KUFS2000B flow meter can be installed in instrument box. Suitable for pipe sizes from DN15mm to DN6000mm.



KUF2000 Ultrasonic Flow Meter High Protection Class For Industrial Automation 2



Working Condition

  Main Unit Sensor
Protection None IP68
Humidity ≤85%RH
Temperature -20~60℃ -30~160℃



Basic Parameters

Accuracy ±1%
Velocity Range 0~±10m/s, Bi-directional measurement
Pipe Size DN15~DN6000
Temperature - 30~160℃
Type of Liquid

Single liquid can transmit sound wave. such as water,

sea water, sewage, oil, chemicals , alcohol, etc

Pipe Material

Carbon steel, stainless steel 304, stainless steel 316.

Flange standard GB/T9119-2000, GB/T81-94

Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)

1 way OCT pulse output( Pulse width 6 ~ 1000ms)

1 way relay output

Signal Input

3 way 4-20mA input, achieve to heat measurement by

connecting PT100 platinum resistor.

Interface RS485, support MODBUS
Data Storage SD card regularly store the pre-set results (optional)
Power Supply DC8~36V or AC85~264V



KUFS2000C Explosion-Proof Inline Ultrasonic Flow Meter



The KUFS2000C flow meter adopts isolated explosion proof, grade DΙ Ι BT5

After gluing and sealing, grade will be Intrinsically safe explosion. Suitable for pipe sizes from DN15mm to DN6000mm.



KUF2000 Ultrasonic Flow Meter High Protection Class For Industrial Automation 3



Working Condition

  Main Unit Sensor
Protection IP65 IP68
Humidity ≤85%RH
Temperature -20~60℃ -30~160℃



Basic Parameters

  Main Unit Sensor
Protection IP65 IP68
Humidity ≤85%RH
Temperature -20~60℃ -30~160℃



Optional  Inline Sensors



π Type Inline Sensors

KUF2000 Ultrasonic Flow Meter High Protection Class For Industrial Automation 4



1. Thread Connection



Nominal



Diameter

(DN)

Pressure



Level



P

Length



L

Connection



Thread

Thread



Length

Thread Standard
DN15 2.5 320 G3/4 18 GB/T7307-2001
DN20 2.5 360 G1B 15
DN25 2.5 390 G1 1/4B 16
DN32 2.5 450 G1 1/4B 22.5



2. Flange Connection



Nominal



Diameter

(DN)

Pressure



Level



P

Length



L

Flange Dimension

Thread



Standard

Normal



Size



D

Bolt Hole Centers

D1

Bolt Hole



X Quantity

X n

Sealing Surface Diameter

D2

Flange



Thickness

Bolts



Dimension

C f
DN15 2.5 320 95 65 14X4 46 14 2 M12X50 GB/T9119-2000
DN20 2.5 360 105 75 14X4 56 16 2 M12X50
DN25 2.5 390 115 85 14X4 65 16 2 M12X60
DN32 2.5 450 140 100 18X4 76 18 2 M16X60



Optional Inline Sensors



Standard Inline Sensors

KUF2000 Ultrasonic Flow Meter High Protection Class For Industrial Automation 5





Nominal



Diameter

(DN)

Pressure



Level



P

Length



L

Flange Dimension

Thread



Standard

Normal



Size



D

Bolt Hole Centers

D1

Bolt Hole



X Quantity

X n

Sealing Surface Diameter

D2

Flange



Thickness

Bolts



Dimension

C f
DN40 1.6 300 150 110 18X4 84 18 2 M16X60 GB/T9119-2000
DN50 1.6 300 165 125 18X4 99 20 2 M16X70
DN65 1.6 300 185 145 18X4 118 22 2 M16X60
DN80 1.6 115 200 160 18X8 132 20 2 M16X70
DN100 1.6 250 220 180 18X8 156 22 2 M16X80
DN125 1.6 275 250 210 18X8 184 22 2 M16X80
DN150 1.6 300 285 240 22X8 211 24 2 M20X8
DN200 1.6 350 340 295 22X12 266 26 2 M20X8
DN250 1.6 450 405 355 26X12 319 28 2 M20X90
DN300 1.6 500 460 410 26X12 370 32 2 M22X90
DN350 1.0 550 500 460 23X16 428 28 4 M20X80 JB/T81-94
DN400 1.0 600 565 515 25X16 482 30 4 M22X90
DN450 1.0 700 615 565 25X20 532 30 4 M22X90
DN500 1.0 800 670 620 25X20 585 32 4 M22X90
DN600 1.0 1000 780 725 30X20 685 36 5 M27X110
DN700 0.6 1100 860 810 25X24 775 32 5 M22X90
DN800 0.6 1200 975 920 30X24 880 32 5 M27X100
DN900 0.6 1300 1075 1020 30X24 980 34 5 M27X100
DN1000 0.6 1400 1175 1120 30X28 1080 36 5 M27X110
