| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | GXPS500D |
| Minimum Order Quantity: | 1 Piece/Pieces negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Stability: | Typical Value 0.25%F.S, Max.: 0.5%F.S | Operating Temperature: | －40℃~85℃ (OEM－40℃~120℃) |
|---|---|---|---|
| Output Signal: | 4~20mA 0~5V 0~10V | Power Supply: | 10~30Vdc 8~30Vdc/ac 11~30Vdc/ac |
| Pressure Range: | ±5kPa……±10000kPa | Pressure Type: | Differential Pressure |
| High Light: | high accuracy pressure sensor,explosion proof pressure transmitter |
||

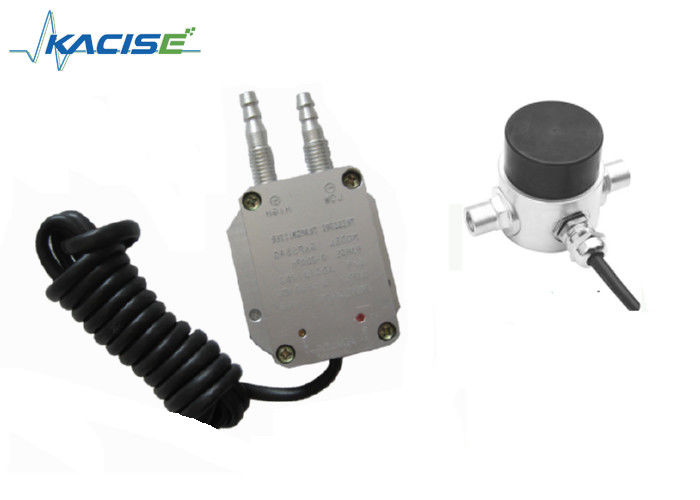

GXPS500D Against severe electromagnetic interference Small size Differential Pressure Transmitter
Introduction
Pressure sensor is a device or device that can feel pressure signal and convert it into usable output electrical signal according to certain rules.
Pressure sensor usually consists of pressure sensor and signal processing unit. According to different test pressure types, pressure sensors can be divided into gauge pressure sensor, differential pressure sensor and absolute pressure sensor.
Pressure sensor is the most commonly used sensor in industrial practice, which is widely used in a variety of industrial automatic control environment, involving water conservancy and hydropower, railway traffic, intelligent buildings, production automatic control, aerospace, military, petrochemical, oil Wells, electric power, ships, machine tools, pipelines and other industries.
GXPS 500D series differential pressure transmitter is a kind of high precision, high range, high reliability, high stability of differential pressure transmitter, widely used in differential detection of liquid, gas. This product is made of brass or 1Cr18Ni9Ti stainless steel construction.anti-high voltage, high current, high magnetic field, non-polarized outlet and other features.Passed the intrinsically safe certificate; Isolation explosion-proof; CE certificate.This product can adjust the control mode according to user requirements, so as to change the zero point and span, depending on the situation on the site.Two-wire system circulation output leads non-polar; three-wire system the voltage output of the AC and DC.
Application
Feature
Electronic interface and signals definition
Parameter
| Spec. | Value | ||
| Pressure range | ±5kPa……±10000kPa | ||
| Overload pressure | 1.5time nominal pressure | ||
| Pipeline pressing | 3,5,10 times nominal pressure | ||
| Accuracy | ±0.25%F.S, ±0.5%F.S | ||
| Stability | Typical value 0.25%F.S, Max.: 0.5%F.S | ||
| Operating temperature | －40℃~85℃ (OEM－40℃~120℃) | ||
| Compensated Temperature Range | －10℃~70℃ | ||
| Medium | All Caustic Medium Compatible with 1Cr18Ni9Ti or brass | ||
| Electrical properties | 2 wire system | 3 wire system | |
| Output signal | 4~20mA | 0~5V | 0~10V |
| Power supply | 10~30Vdc | 8~30Vdc/ac | 11~30Vdc/ac |
| load resistance | (U-10)/0.02(Ω) | ＞100kΩ | |
| Min. isolation between case & terminations | ＞100M Ω@50V | ||
| surge immunity | ＞500Vac@60 second | ||
| Shock and vibration | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||
| Pressure durable | 2×106 Pressure circle @25℃ | ||
| Electrical Connections | Waterproof cable, 1.5meter length, IP65 | ||
| Pressure port | Inner and outer G1/4, inner and outer NPT1/4, | ||
| Response time | 10ms | ||
| Pressure type | differential pressure | ||
| Certificate | insulation explosion proof, CE | ||
| EMI/ EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||
