| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | KACISE |
| Certification: | CE, ISO |
| Model Number: | KWS5000 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton or customers requests available |
| Delivery Time: | 5 working days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Output: | RS485 | Power Supply: | 5V |
|---|---|---|---|
| Resolution: | 0.1mg/L | Protection Level: | IP68 |
| Operating Temperature: | 0 ~ 80°C | Accurate: | ±20ppm/±50ppm/±300ppm |
| High Light: | water turbidity sensor,oil in water sensor |
||

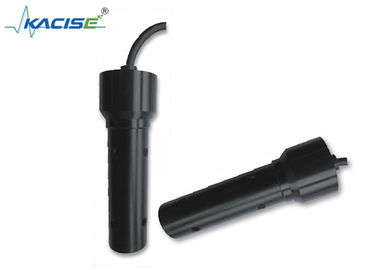

Dissolved CO2 Sensor In Water For Water Quality Analysis And Monitoring
1, Introduction
The KWS5000 is a gas detection module for detecting the concentration of carbon dioxide in an aqueous solution. Patented optical cavity, imported light source and dual channel detector for spatial double reference compensation. KWS5000 has good selectivity, anaerobic dependence and long life. It also has UART, IIC digital output, analog voltage output and PWM frequency output mode, which is convenient for customers to choose applications. The KWS5000 provides customers with zero calibration, sensitivity calibration and clean air calibration commands, and provides customers with manually calibrated MCDL pins. The customer can conveniently use the external free-flowing clean air to perform a relative zero calibration of the sensor module. The KWS5000 uses a convection-diffusion venting method and a protective cover to accelerate the gas convection diffusion rate and protect the gas permeable membrane. Removable construction for easy cleaning of the sensor housing. The KWS5000's unique waterproof construction is removable for easy maintenance and cleaning. KWS5000 can be used to measure the concentration of dissolved CO2 gas in water. It can also be used for HVAC and indoor air quality monitoring, agricultural and livestock production process monitoring, and agricultural product storage status monitoring. It can be installed in home networks, ventilation systems and controllers. Wall-mounted, robotic and automotive applications can also be applied to other equipment to control air quality or hypoxia monitoring.
2, Technical Specifications
Working conditions
|
Description
|
Symbol |
Value |
Unit |
|
Storage temperature |
Tstg |
-20 to 80 |
C |
|
Operating temperature |
TA |
-20 to +60 |
C |
|
Operating humidity |
HA |
0 to 90 |
% RH |
|
Operating pressure |
PA |
0.8 to 1.2 |
atm |
Note: The pH range of KWS-5000 working environment is: PH value: 3~12
Electrical characteristics
| Description | Symbol | Min. | Typical | Max. | Unit |
| Power supply | Vs | 5 | 5 | 5.5 | V |
| Current | Iavg | 100 | 120 | 150 | mA |
Note: RS485, 4-20mA power supply is 12V
Performance characteristics
| Description | Min. | Typical | Max. | Unit | |
| Range | 2000 | ppm | |||
| Accuracy | ±20ppm or ±5% | ppm | |||
| T90 | diffusion | - | 20 | 60 | Second |
|
Repeatability |
Zero point | <±50 | ppm | ||
| 50% FS | - | <±5% | - | ||
| life | 3 | 5 | 10 | year | |
4,Signal output
Signal output: analog voltage output, IIC output, UART output, PWM output, 485 output/4-20mA. Users can customize the output according to their needs. Outgoing lines 1, 2, 3, and 4 are standard outputs, and 5, 6 users can customize according to their needs.
