Wall Mount KPH500 14PH Orp Water Quality Sensor Probe

Wall Mount KPH500 14PH Orp Water Quality Sensor Probe

  • Wall Mount KPH500 14PH Orp Water Quality Sensor Probe
  • Wall Mount KPH500 14PH Orp Water Quality Sensor Probe
Wall Mount KPH500 14PH Orp Water Quality Sensor Probe
Product Details:
Place of Origin: CHINA
Brand Name: kacise
Certification: CE,FDA
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Depending on quantity
Packaging Details: Common package or custom package
Delivery Time: 10-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0-14PH;-2000mv-2000mv Resolution: 0.01PH;1mv
Precision: 2% Calibration Accuracy Signal Output: 485 Communication/4-20mA Analog Output/support HART Protocol/NB.GPRS.LORA Communication (function Option)
Material: PVC Protection Level: IP65/67
High Light:

KPH500 Water Quality Probe

,

14PH Water Quality Sensor

,

Orp Water Quality Sensor

KPH500 Ph Orp Meter Water Quality Probe Water Quality Monitoring Equipment Wall Mount Sensor Water Quality Probe

KPH500 Ph orp meter water quality probe water wuality controller wall mount sensor Production Introduction

The PH/ORP meter is a precision meter used to detect the pH/oxidation-reduction potential of liquids. It is designed with a microcomputer based on the principle of the primary battery and is simple to operate and easy to maintain. Not affected by color, turbidity, colloidal substances, oxidants and reducing agents, it is suitable for the determination of various media such as clean water, wastewater, industrial water, chemical reagents, etc., and is widely used in agriculture, environmental protection and industry.





PH/ORP size structure chart



Host size

Wall Mount KPH500 14PH Orp Water Quality Sensor Probe 0





Sensor size



Wall Mount KPH500 14PH Orp Water Quality Sensor Probe 1

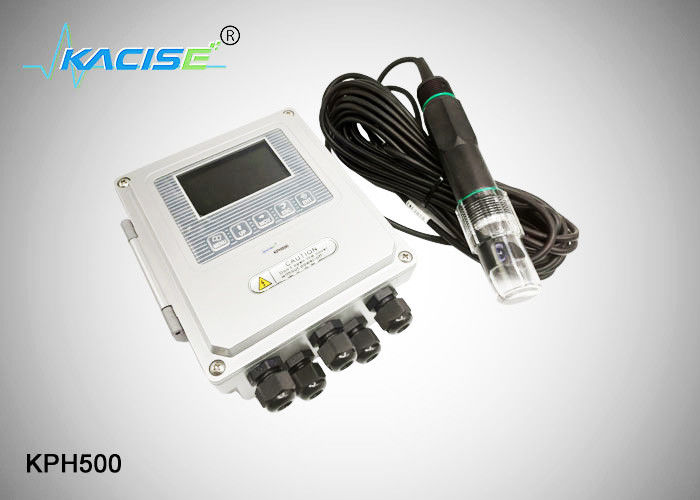

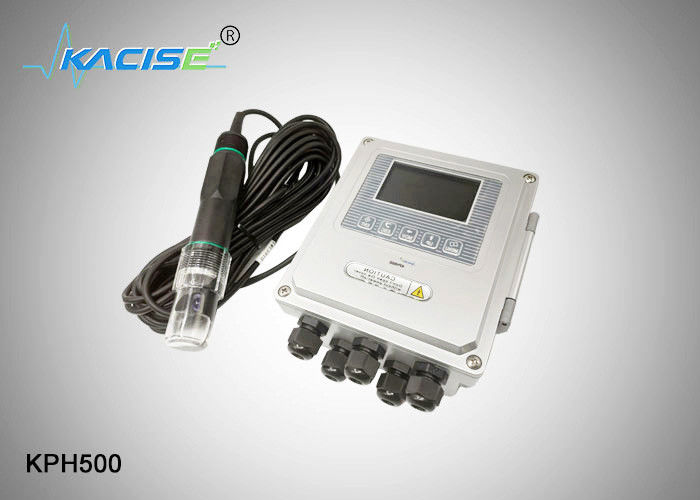

PH/ORP host and glass sensor picture.





Wall Mount KPH500 14PH Orp Water Quality Sensor Probe 2



PH/ORP technical parameters


Class Performance PH parameter OPR parameter
Host Measuring range 0-14PH -2000mv-2000mv
Resolution 0.01PH 1mv
Precision 2% Calibration accuracy
Operating Temperature Transmitter 0-65℃
Material PVC
Protection Level I65/IP67(customized version)
Signal Output

485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA

Communication (function option)

Supply Voltage AC220V or DC24V (choose one of the two)
Power Consumption <1W
Display LCD Chinese display/TFT color LCD (customized version)
Installation Method Wall mount
Sensor Temperature Compensation Automatic temperature compensation
Protection Level ip68
Temperature 0-60℃
Sensor Material PVC
Cable Length Dedicated PH cable, standard 5 meters (extendable)
Operating Temperature 0-60℃
Storage Temperature -10-60℃
Installation Method Bracket drop-in installation
