| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE |
| Model Number: | KEC300 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $0-$700 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 3-10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measurement Parameter: | Conductivity, Salinity, Temperature | Method Of Measurement: | Four Wire Graconductivityite Electrode Method |
|---|---|---|---|
| Measurement Mode: | Immersion Measurement | Measuring Range: | Conductivity: (0 ~ 500mS/cm), Salinity: (0-100) Ppt Temperature: (0 ~ 60) °C |
| Accuracy: | ≤ ± 1% | Repeatability: | ≤1% |
| High Light: | 0.01s/cm Conductivity Water Quality Sensor,Immersion Online Conductivity Sensor,POM Online Conductivity Sensor |
||
The conductivity sensor is a sensitive element used to detect the change in the resistance of a solution (i.e. the measurement of resistance). It consists of an electrode and a reference electrode connected with the electrode. When the conductivity of the measured solution changes (for example, the temperature increases or decreases), the voltage at both ends will also change accordingly. By measuring the difference of this change you can calculate parameters such as the concentration of ions in the solution or the total solid concentration.

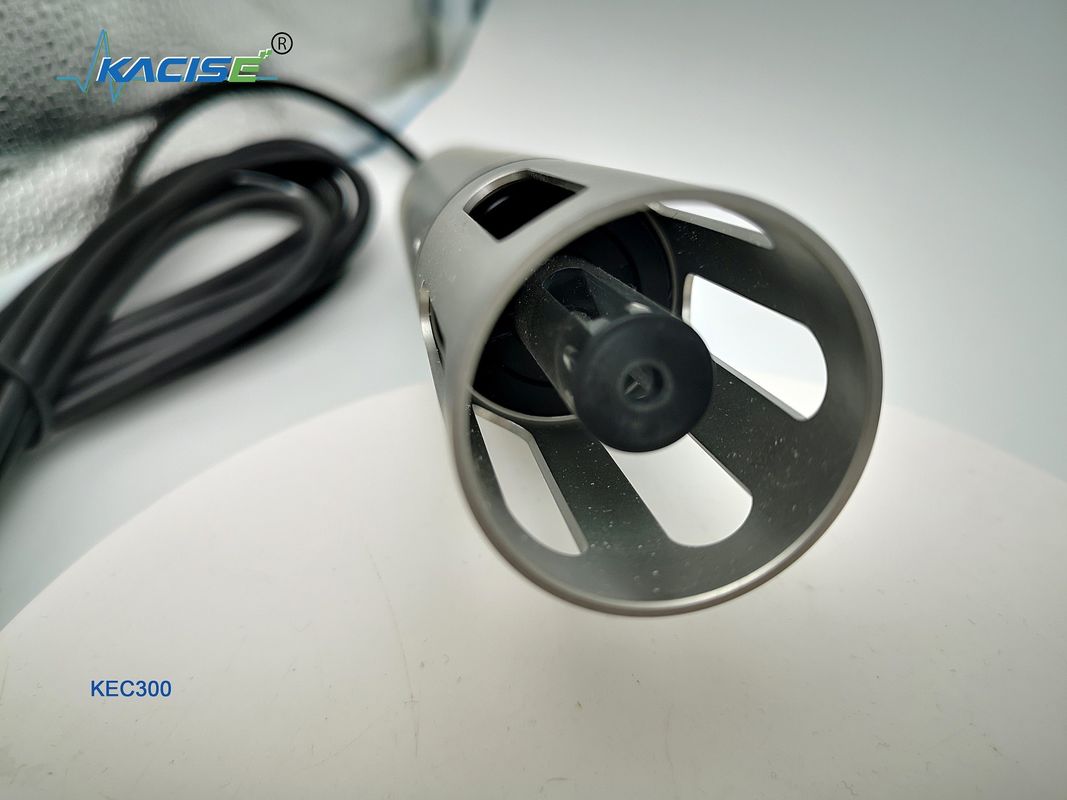

KEC300 online conductivity/salinity Sensor is an online water quality Sensor developed on the basis of digital water quality analysis platform. Integrated design, using industrial on- line electrode, digital, intelligent sensor design concept. The functions of electrode signal detection, temperature detection, automatic compensation and digital signal conversion are realized in the instrument. RS485 signal output, easy networking and system integration, widely used in surface water, pollution sources and other industries.
| Water Quality Sensor Model number | KEC300 |
| Water Quality Sensor Measurement parameter | Conductivity, salinity, temperature |
| Water Quality Sensor Method of measurement | Four wire graconductivityite electrode method |
| Water Quality Sensor Measurement mode | Immersion measurement |
| Water Quality Sensor Measuring range |
Conductivity: (0 ~ 500mS/cm), salinity: (0-100) ppt Temperature: (0 ~ 60) °C |
| Water Quality Sensor Accuracy | ≤ ± 1% |
| Water Quality Sensor Repeatability | ≤1% |
| Water Quality Sensor Resolution | Conductivity: 0.01 s/cm, salinity: 0.01 PPT |
| Water Quality Sensor Response time | ≤20s |
| Water Quality Sensor Zero Drift (24h) | ≤ ± 1% F.S. |
| Water Quality Sensor Range Drift (24h) | ≤ ± 1% F.S. |
| Water Quality Sensor Accuracy of temperature compensation | ≤ ± 1% |
| Water Quality Sensor Calibration period | Six months |
| Water Quality Sensor Temperature range | (0 ~ 60) °C |
| Water Quality Sensor Protection level | IP68 |
| Water Quality Sensor MTBF | ≥1440h/Time |
|
Water Quality Sensor Means of communication |
RS485(Modbus RTU), maximum baud rate 115200 bps |
| Water Quality Sensor Supply voltage | (12/24) V DC |
| Water Quality Sensor Power consumption | < 1W |
| Water Quality Sensor Material Quality | Stainless steel, POM |
| Water Quality Sensor Weight | 0.5 kg |
| Water Quality Sensor Contour dimension | 205 mm × φ40 mm |
