| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE |
| Model Number: | KAN300 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $0-$700 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 3-10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Model Number: | KAN300A KAN300B | Measurement Parameter: | NH4-N, PH,temperature NH4-N, PH, K+, Temperature |
|---|---|---|---|
| Method Of Measurement: | Ion Selective Electrode Method | Measurement Mode: | Immersion Measurement |
| Measuring Range: | NH4-N:(0.1-1) Mg/l, (1-10) Mg/l, (10-100) Mg/l, (100-1000) Mg/L PH: 0 ~ 14 K+: (1~1000) Mg/L Temperature:(0 ~ 60) ℃ | Accuracy: | ≤±3% |
| Repeatability: | ≤2% | Resolution: | NH4-N (minimum Range): 0.01 Mg/L K+: 0.01mg/L Ph: 0.01 |

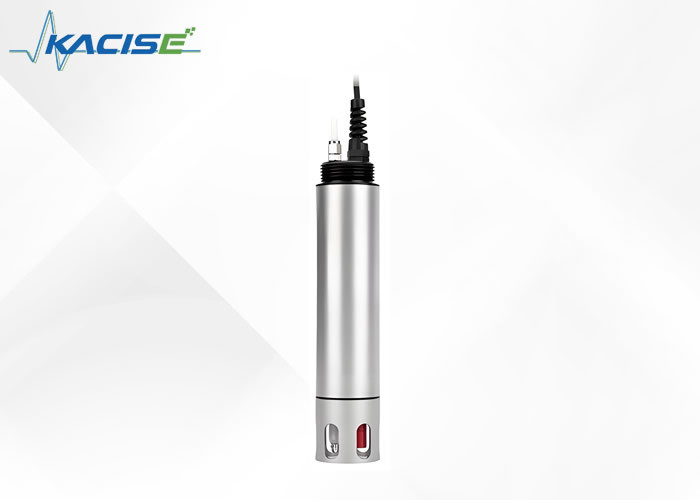

KAN300 series online ammonia nitrogen Sensor is an online water quality Sensor developed on the basis of digital water quality analysis platform. Integrated design, using industrial Online ion selective electrode, digital, intelligent sensor design concept.
The functions of electrode signal detection, pH compensation, temperature detection and automatic compensation, digital signal conversion are realized in the instrument. RS485 signal output, easy networking and system integration, widely used in surface water, pollution sources and other industries.
Integrated design, anti-electromagnetic interference
Industrial online ion-selective electrode, can work stably for a long time
pH, temperature, potassium ion (K +) and other multi-parameter compensation algorithm to ensure the accuracy of measurement
Built-in Air Purge automatic cleaning system, greatly reducing the maintenance workload
Stainless steel case, IP68 waterproof grade, suitable for various working conditions
RS485 signal output, Standard Modbus protocol, easy integration, networking
| Water Quality Sensor Model number | KAN300A | KAN300B |
| Water Quality Sensor Measurement parameter | NH4-N, pH,temperature | NH4-N, pH, K+, temperature |
| Water Quality Sensor Method of measurement | Ion selective electrode method | |
| Water Quality Sensor Measurement mode | Immersion measurement | |
| Water Quality Sensor Measuring range |
NH4-N:(0.1-1) mg/l, (1-10) mg/l, (10-100) mg/l, (100-1000) mg/L PH: 0 ~ 14 K+: (1~1000) mg/L Temperature:(0 ~ 60) ℃ |
|
| Water Quality Sensor Accuracy | ≤±3% | |
| Water Quality Sensor Repeatability | ≤2% | |
| Water Quality Sensor Resolution |
NH4-N (minimum range): 0.01 mg/L k+: 0.01mg/L Ph: 0.01 |
|
| Water Quality Sensor Detection limit | 0.1 mg/L | |
| Water Quality Sensor Response time | ≤60s | |
| Water Quality Sensor Zero Drift (24h) | ≤3% F.S. | |
| Water Quality Sensor Range Drift (24h) | ≤3% F.S. | |
| Water Quality Sensor Calibration period | Three months | |
| Water Quality Sensor Temperature range | (0 ~ 60) °C | |
| Water Quality Sensor Protection level | IP68 | |
| Water Quality Sensor Cleaning mode | Compressed air bar | |
| Water Quality Sensor MTBF | ≥1440h/Time | |
| Water Quality Sensor Means of communicatio n | RS485(Modbus RTU) , maximum baud rate 115200 bps | |
| Water Quality Sensor Supply voltage | (12/24) V DC | |
| Water Quality Sensor Power consumption | < 0.5W | |
| Water Quality Sensor Material Quality | Stainless steel, POM | |
| Water Quality Sensor Weight | 1.0 kg | |
| Water Quality Sensor Contour dimension | 270 mm × φ60 mm | |
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
