| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE |
| Model Number: | KOI300 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $0-$700 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 3-10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measurement Parameter: | Oil In Water (crude), Temperature | Model Number: | KOI300 |
|---|---|---|---|
| Method Of Measurement: | Fluorimetry | Measurement Mode: | Immersion Measurement |
| Measuring Range: | Oil In Water: (0 ~ 500) Mg/L Temperature: (0 ~ 60) °C | Accuracy: | ≤ ± 3% |
| Repeatability: | ≤2% | ||
| High Light: | Anti Electromagnetic Interference Water Quality Sensor,Fluorimetry Oil In Water Sensor,IP68 Waterproof Oil In Water Sensor |
||

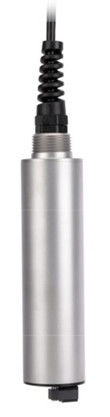

KOI300 online oil in water sensor is an online water quality sensor based on OSA optical water quality analysis platform. In an integrated design, high brightness UV leds of a specific wavelength excite the Polycyclic aromatic hydrocarbon to make them fluoresce, and high sensitivity photoelectric sensors capture weak fluorescence signals that can be converted into oil concentrations in water. Digital, intelligent sensor design concept, can automatically compensate for voltage fluctuations, device aging, temperature changes on the impact of measured values. RS485 signal output, easy networking and system integration, widely used in surface water, pollution sources and other industries.
Integrated design, anti-electromagnetic interference
Using high brightness UV LED as excitation light source, can work stably for a long time
The unique optical and electronic filtering technology is used to eliminate the influence of ambient light on the measurement
Cleaning brush automatic cleaning, greatly reducing the maintenance workload
Stainless steel case, IP68 waterproof grade, suitable for various working conditions
RS485 signal output, Standard Modbus protocol, easy integration, networking
| Water Quality Sensor Model number | KOI300 |
| Water Quality Sensor Measurement parameter | Oil in water (crude), temperature |
| Water Quality Sensor Method of measurement | Fluorimetry |
| Water Quality Sensor Measurement mode | Immersion measurement |
| Water Quality Sensor Measuring range |
Oil in water: (0 ~ 500) mg/L Temperature: (0 ~ 60) °C |
| Water Quality Sensor Accuracy | ≤ ± 3% |
| Water Quality Sensor Repeatability | ≤2% |
| Water Quality Sensor Resolution | 0.01 mg/L |
| Water Quality Sensor Detection limit | Based on the actual oil sample |
| Water Quality Sensor Response time | ≤10s |
| Water Quality Sensor Zero Drift (24h) | ≤ ± 1% F.S. |
| Water Quality Sensor Range Drift (24h) | ≤ ± 1% F.S. |
| Water Quality Sensor Calibration period | Six months |
| Water Quality Sensor Temperature range | (0 ~ 60) °C |
| Water Quality Sensor Protection level | IP68 |
| Water Quality Sensor Cleaning mode | Automatic cleaning of mechanical brush |
| Water Quality Sensor MTBF | ≥1440h/Time |
| Water Quality Sensor Means of communication | RS485(Modbus RTU) , maximum baud rate 115200 bps |
| Water Quality Sensor Supply voltage | (12/24) V DC |
| Water Quality Sensor Power consumption | < 1W (in non-cleaning mode) |
| Water Quality Sensor Material Quality | Stainless steel, POM |
| Water Quality Sensor Weight | 0.5 kg |
| Water Quality Sensor Contour dimension | 160 mm × φ40 mm |
