Electrode Conductivity Online Conductivity Sensor POM Material

Product Details:

Place of Origin:	CHINA
Brand Name:	kacise
Certification:	CE
Model Number:	KEC300

Payment & Shipping Terms:

Minimum Order Quantity:	0-100
Price:	$0-$700
Packaging Details:	Common package or custom package
Delivery Time:	3-10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100

Contact Now

Detailed Product Description

Measurement Parameter:	Conductivity, Salinity, Temperature	Method Of Measurement:	Four Wire Graconductivityite Electrode Method
Measurement Mode:	Immersion Measurement	Measuring Range:	Conductivity: (0 ~ 500mS/cm), Salinity: (0-100) Ppt Temperature: (0 ~ 60) °C
Accuracy:	≤ ± 1%	Repeatability:	≤1%
High Light:	Fourelectrode conductivity Water Quality Sensor , IP68 Online Conductivity Sensor , POM Online Conductivity Sensor

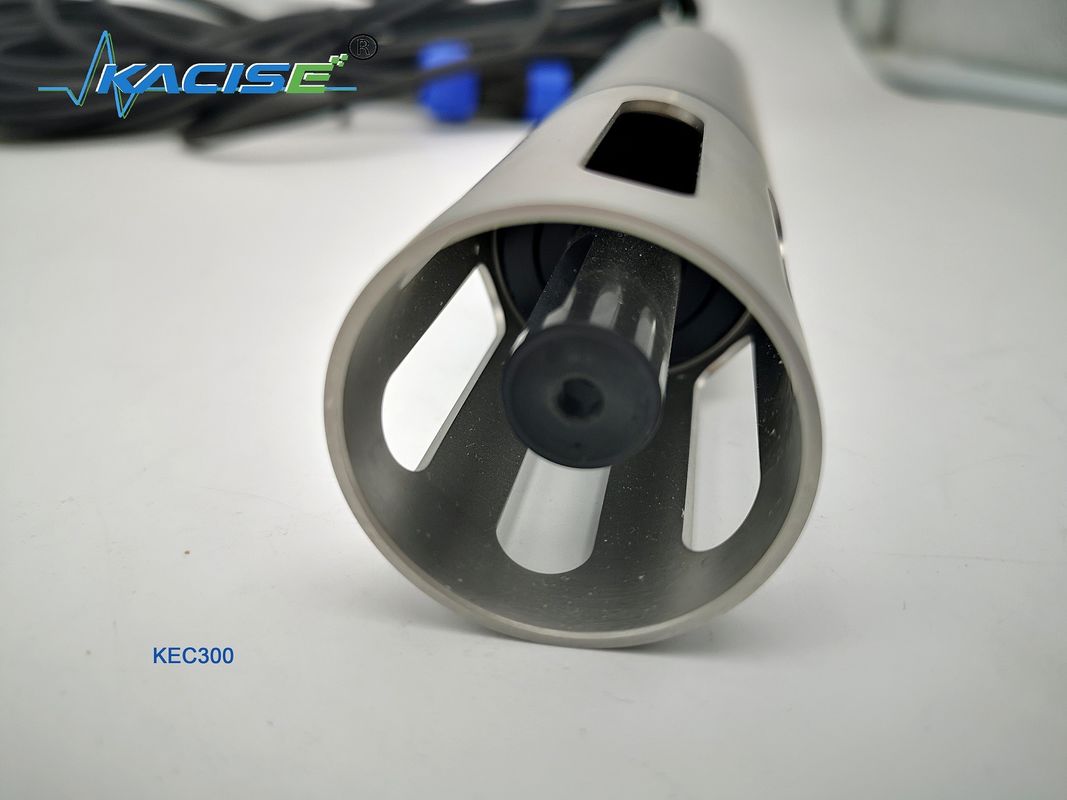

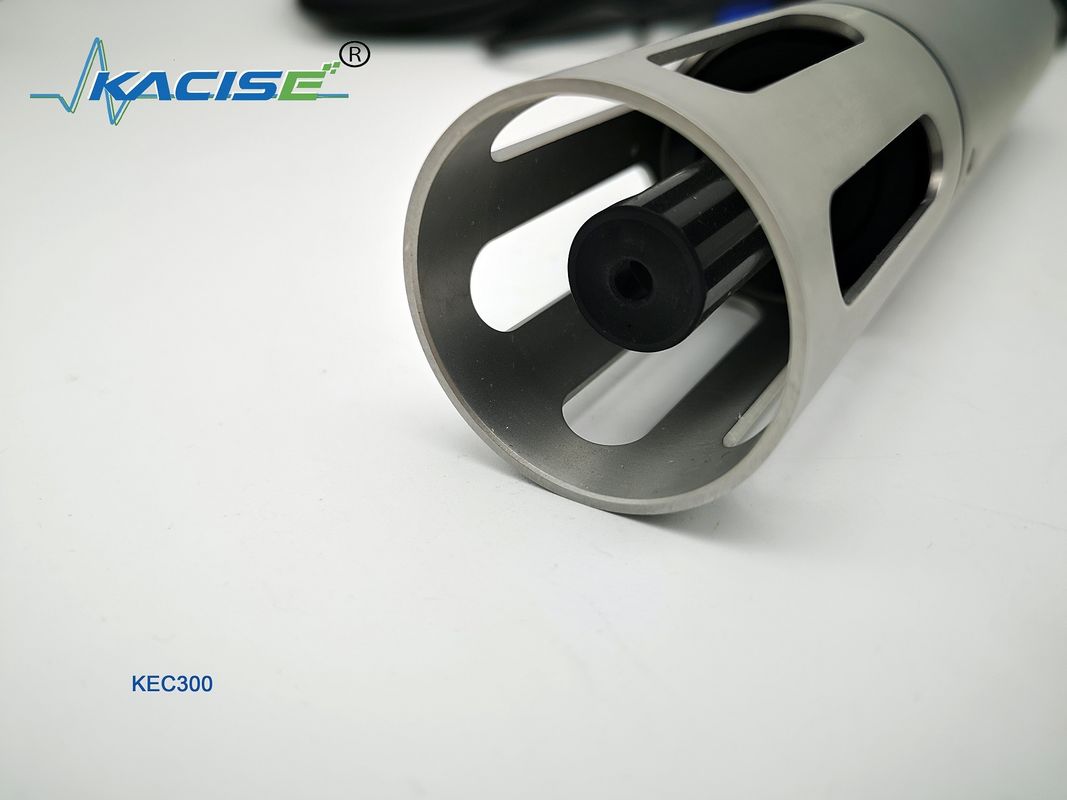

KEC300 Online Conductivity Sensor Water Quality Sensor

Name: Electrode Conductivity Online Conductivity Sensor POM Material
Brand: kacise
SKU: KEC300
Price: 700 USD
Availability: InStock
Rating: 5 (105 reviews)

Current status and characteristics of the four-electrode conductivity sensor
Four electrode conductivity pool by two current electrode and voltage electrode, electrode coaxial electrode voltage and current, when measuring the liquid to be tested in two current between the electrode gap, impose an ac signal current electrodes at both ends and by electric current, establish the electric field in the liquid medium, two voltage electrode voltage induction, make two voltage at the ends of the electrode voltage constant, by two current electrodes has a linear relationship between current and liquid conductivity.
In order to meet the needs of Marine research and development, China's national ocean technology center li Jianguo to open four-electrode conductivity sensor is a research and development, successfully developed a four-electrode conductivity sensor used in seawater conductivity measurement, its performance index has reached the international advanced level, measurement range of 0 ~ 65 mS/cm; The measurement accuracy is ±0.007 mS/cm.
At present, the mature four-electrode conductivity sensor has a measuring range of 0-2S/cm, and different electrode constants have different measuring ranges.
The four-electrode conductivity sensor has the following characteristics: 1) the current electrode is separated from the voltage electrode, and the current electrode is powered by a constant current source, which effectively avoids the influence of polarization impedance;2) High sensitivity and strong anti-pollution ability;3) The four-electrode conductance cell has the characteristics of ultrastructure, large diversion space and short distance, which is suitable for long-term field measurement.

Characteristics

Integrated design, immune to electromagnetic interference
Industrial conductivity electrode, electrode constant stability, not affected by polarization, pollution
Built-in temperature sensor, real-time temperature compensation Stainless steel case, IP68 waterproof grade, suitable for various
working conditions
RS485 signal output, Standard Modbus protocol, easy integration, networking

Technical Specifications

Water Quality Sensor Model number	KEC300
Water Quality Sensor Measurement parameter	Conductivity, salinity, temperature
Water Quality Sensor Method of measurement	Four wire graconductivityite electrode method
Water Quality Sensor Measurement mode	Immersion measurement
Water Quality Sensor Measuring range	Conductivity: (0 ~ 500mS/cm), salinity: (0-100) ppt Temperature: (0 ~ 60) °C
Water Quality Sensor Accuracy	≤ ± 1%
Water Quality Sensor Repeatability	≤1%
Water Quality Sensor Resolution	Conductivity: 0.01 s/cm, salinity: 0.01 PPT
Water Quality Sensor Response time	≤20s
Water Quality Sensor Zero Drift (24h)	≤ ± 1% F.S.
Water Quality Sensor Range Drift (24h)	≤ ± 1% F.S.
Water Quality Sensor Accuracy of temperature compensation	≤ ± 1%
Water Quality Sensor Calibration period	Six months
Water Quality Sensor Temperature range	(0 ~ 60) °C
Water Quality Sensor Protection level	IP68
Water Quality Sensor MTBF	≥1440h/Time
Water Quality Sensor Means of communication	RS485(Modbus RTU), maximum baud rate 115200 bps
Water Quality Sensor Supply voltage	(12/24) V DC
Water Quality Sensor Power consumption	< 1W
Water Quality Sensor Material Quality	Stainless steel, POM
Water Quality Sensor Weight	0.5 kg
Water Quality Sensor Contour dimension	205 mm × φ40 mm
