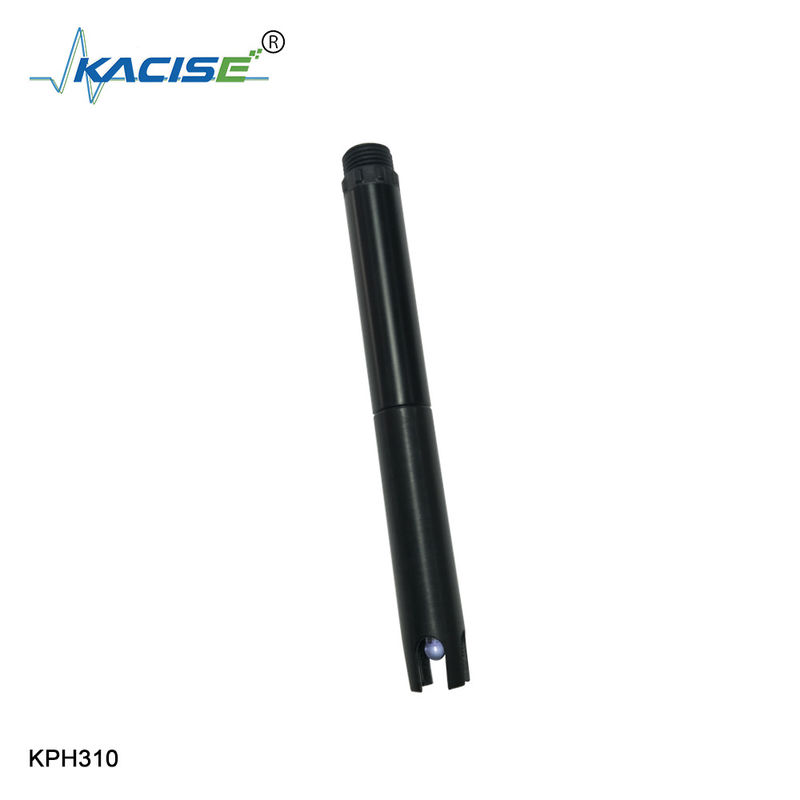

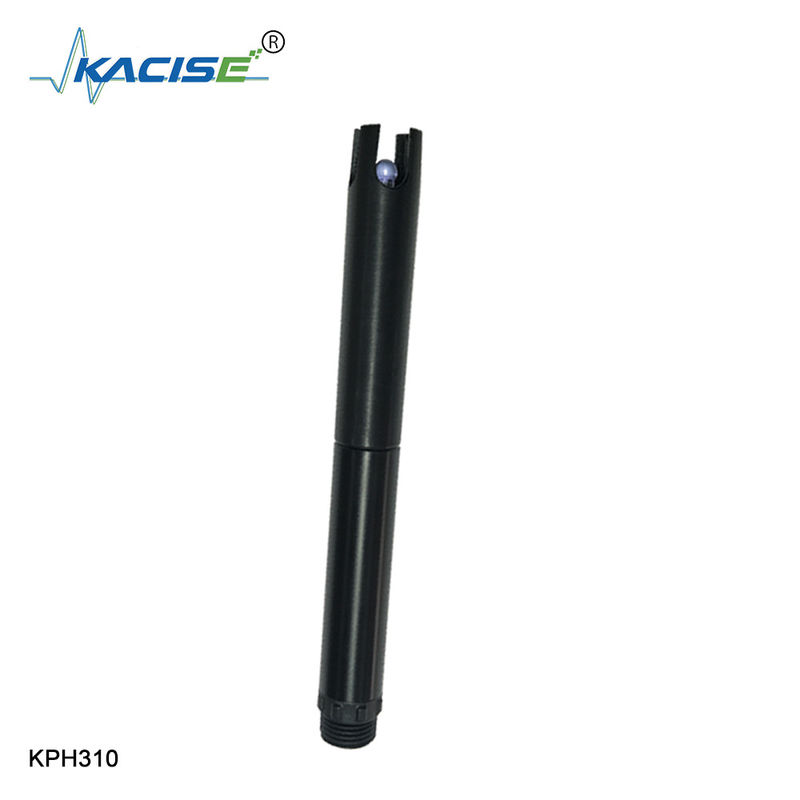

Ip68 Submerged Water PH Sensor With Double High Impedance

Ip68 Submerged Water PH Sensor With Double High Impedance

  • Ip68 Submerged  Water PH Sensor With Double High Impedance
  • Ip68 Submerged  Water PH Sensor With Double High Impedance
Ip68 Submerged  Water PH Sensor With Double High Impedance
Product Details:
Place of Origin: CHINA
Brand Name: kacise
Certification: CE
Model Number: KPH310
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: $0-$2000
Packaging Details: Common package or custom package
Delivery Time: 3-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Contact Now
Detailed Product Description
Range Range: 0 ~ 14 Ph Resolution: 0.01 Ph
Precision: ± 0.1 Ph Operating Temperature: 0 ~ 65 °C
Working Pressure: < 0.2 Mpa Temperature Compensation: Automatic Temperature Compensation (NTC)
High Light:

Double High Impedance Water PH Sensor

,

Submerged Online PH Probe

,

Ip68 Water PH Sensor

Double High Impedance Online PH Sensor Immersion Mounting

KPH310 Online PH Sensor Signal Output: RS-485 Double High Impedance Differential Amplifier Ip68

1.Application Environment

For environmental water quality monitoring, acid/alkali/salt solution, chemical reaction process, industrial production process, can meet the majority of industrial applications on-line pH measurement requirements.

2.Feature

  • Signal Output: RS-485(Modbus/RTU protocol).
  • Convenient to connect to PLC, DCS, Industrial Control Computer, General Controller, paperless recording instrument or touch screen and other third-party equipment.
  • Double high impedance Differential amplifier, strong anti-interference, fast response.
  • The patented pH probe, with an internal reference fluid at a pressure of at least 100 kpa (1 bar), oozes extremely slowly from the microporous salt bridge, with a forward exudation lasting more than 20 months. Such a reference system is very stable, electrode life than ordinary industrial electrode times longer.
  • Easy to install: submerged installation.
  • Ip68, protection level.

3.Technical Specifications

Model Number KPH310
Range Range 0 ~ 14 Ph
Resolution 0.01 ph
Precision ± 0.1 ph
Operating Temperature 0 ~ 65 °C
Working Pressure < 0.2 mpa
Temperature Compensation Automatic temperature compensation (NTC)
Power Supply 12 ~ 24 VDC ± 10%
Signal Output RS-485(Modbus/RTU)
Contact Material Pom
Installation Mode Immersion mounting
Cable Length 5 meters, other length can be customized
Calibration Mode Two-point calibration
Power Consumption < 0.05 W
Protection Level IP68






4.Dimensional Drawing



Ip68 Submerged  Water PH Sensor With Double High Impedance 0

Tips: Q&A

1.Does lemon make water alkaline?

Fresh lemons: If you prefer not to use baking soda, a fresh lemon added to your drinking water will also, eventually, make your purified drinking water more alkaline. ... Once you drink the acidic lemon water, it will become alkaline as your body reacts with the lemons' anions during the digestive process.



2.What happens if pH is too high in the pool?

If the pH gets higher than 7.8, the water is becoming too alkaline. When water is too alkaline, it reduces the effectiveness of chlorine — the pool chemical that kills pathogens. Water with a pH that's too high also can cause skin rashes, cloudy water, and scaling on pool equipment.



3.Can I use vinegar to lower pH in the pool?

Lowering pH with Vinegar Commercially distilled white vinegar, often 5 percent acetic acid, has a pH of 2.4 and can be used to lower the pH in saltwater aquariums. This amount should lower the tank pH by about 0.3 points. ... Most pool experts recommend a pool pH between 7.2 and 7.8.
