Sewage Treatment Ultrasonic Tank Level Sensor For Food Industry KUS650

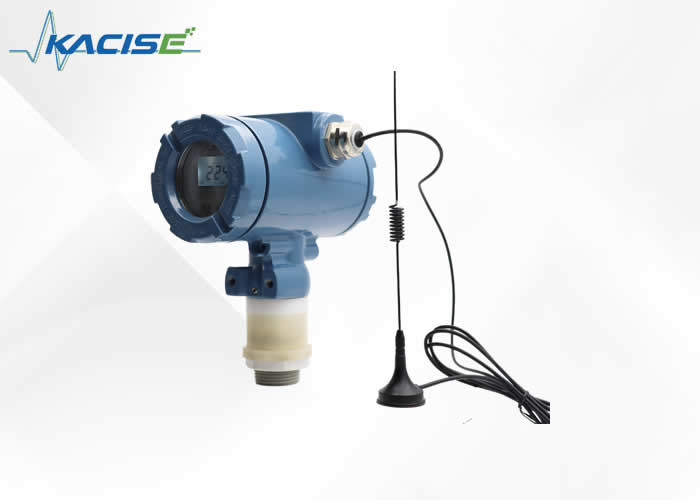

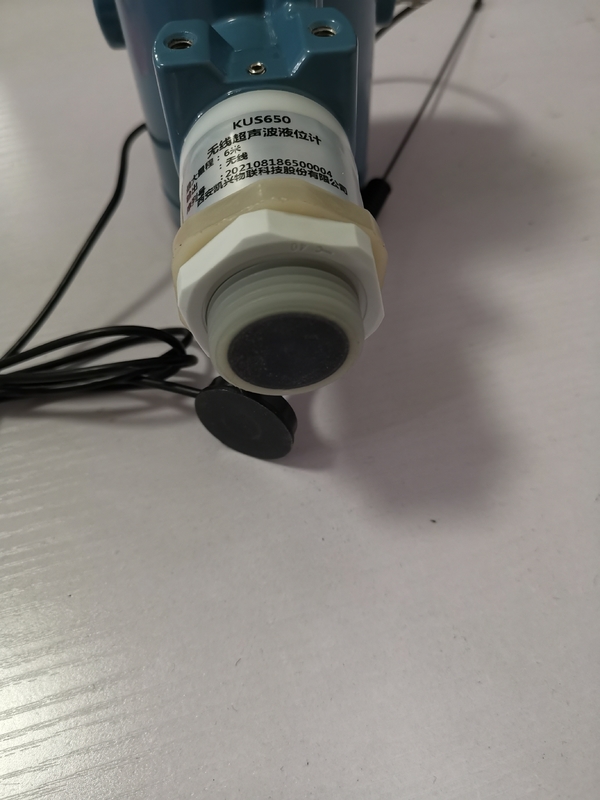

KUS650 ultrasonic tank level sensor

Application field
KUS650 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:

• Fire water system
• City water supply
• Sewage treatment
• Long-distance heating
• Food industry
• Chemical, energy


parameter settings

1 Sending time setting
Operation code: 2121 units (minutes)
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2121"; press the "M" key to confirm, Display "S_TIM", press "M" key, display "00000" (last setting value), and set the value (range 1) by "up" key (data left key) and "down" key (data increase key) ～09999), press "M" key to confirm and save after adjustment is completed.
2 Collection time interval setting
Operation code: 2122 units (seconds)
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2122"; press the "M" key to confirm, Display "S_FrE", press "M" key, display "00000" (last setting value), set the value (range 1～09999) with "up" and "down" keys, press "M" after adjustment is completed Press to confirm and save. On time interval setting.
3 Data upload method setting
Operation code: 2124
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2124"; press the "M" key to confirm, Display "S.MOdE", press "M" key, display "Last set value", set by "Up" and "Down" keys, press "M" key to confirm and save after adjustment is completed.
4 Alarm interval time setting
Operation code: 2125 units (minutes)
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2125"; press the "M" key to confirm, Display "S_ErT", press "M" key, display "00000" (last setting value), set the value (range 1～09999) by "up" and "down" keys, press "M" after adjustment is completed Press to confirm and save.
5 Liquid level/material level alarm upper limit setting
Operation code: 2311
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2311"; press the "M" key to confirm, Display "Ad1H", press the "M" key to set the upper limit alarm value, set the value through the "up" and "down" keys, the "Ad1F" alarm upper limit return difference, the "Ad1d" alarm upper limit delay, all adjustments After completion, press the "M" key to confirm and save.
6 Liquid level/level alarm lower limit setting
Operation code: 2312
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2312"; press the "M" key to confirm, Display "Ad2H", press the "M" key to set the upper limit alarm value, set the value through the "up" and "down" keys, the "Ad2F" alarm upper limit return difference, the "Ad2d" alarm upper limit delay, all adjustments After completion, press the "M" key to confirm and save.
7 Instrument zero
Operation code: 1000
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "1000"; press the "M" key to confirm, Display "bd_0" and press the "up and down" keys to select "NO (exit without calibration) or YES (calibrate zero)". Press the "M" key to confirm saving and exit.
8 Meter zero cut
Operation code: 1511
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "1511"; press the "M" key to confirm, Display "CUTO", press "M" key, display "00000" (last setting value), set the value (range 1～29999) by "up" and "down" keys, press "M" after adjustment is completed Press to confirm and save.
9 Meter offset setting
Operation code: 1510
In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "1510"; press the "M" key to confirm, Display "OFSET", press "M" key, display "00000" (the last set value), set the value (range -19999～29999) with "up" and "down" keys, press "M" after adjustment "Key to confirm and save.
parameters



way of communication
1 MODBUS communication
There are two types of MODBUS protocol: MODBUS-RTU (commonly used in China)
MODBUS-ASCII
The communication protocol of this instrument complies with the MODBUS-RTU communication protocol
Assuming that the instrument parameters are: The address of the instrument is set to 1; the communication baud rate is 9600; the invalid check digit; the decimal point is 0; the unit is KPa;
2 Wireless communication(NB-IoT/4G/LoRa)
According to different user needs, wireless communication has different transmission methods and protocol contents. Please consult for specific content.

Installation and maintenance
1 Installation
1) The meter should be installed on a vertical horizontal plane.
2) Pay attention to the range matching when using with other instruments.
3) Before installing the digital meter on the equipment, first check whether the meter head is clean. During use, the pipeline should be kept clean.
2 Maintenance
1) The instrument is a high-precision instrument and should be placed in a place with air circulation, easy to observe, easy to maintain and operate.
2) Although the digital sensor can exceed the range during use, long-term use will affect the accuracy of the measurement and may damage the meter. It is recommended that the user use the meter according to the range.
3) When the LCD screen of the wireless digital meter displays the battery voltage as blank, please replace the battery to ensure the normal operation of the measurement.
Note: The rechargeable battery can be charged, and the charging time is 3~4 hours.
