| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KPS110 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Pressure Range: | -0.1MPa┅0Mpa~0.01Mpa┅100Mpa | Overload: | 2 Times Full Scale Pressure Or 110MPa (whichever Is The Smaller) |
|---|---|---|---|
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure | Temperature Resistance: | PT100 Or PT1000 Platinum Resistance |
| Output Type: | RS485 Temperature And Pressure Output | Power Supply: | 12~30V DC |
| Load Resistance: | ≥10k | Insulation Resistance: | 100MΩ,100V DC |
| Case: | Stainless Steel | Sensor: | 316L Stainless Steel |
| Sealing Ring: | Fluororubber | Cable: | ∅7.5mm Polyethylene Special Cable |
| Degree Of Protection: | IP65 (plug Type);IP68 (cable Type) | ||
| High Light: | Compensated Pressure Temperature Transmitter,Intrinsically Safe Pressure Temperature Transmitter,KPS 110 Precision Pressure Sensor |
||
1. Description

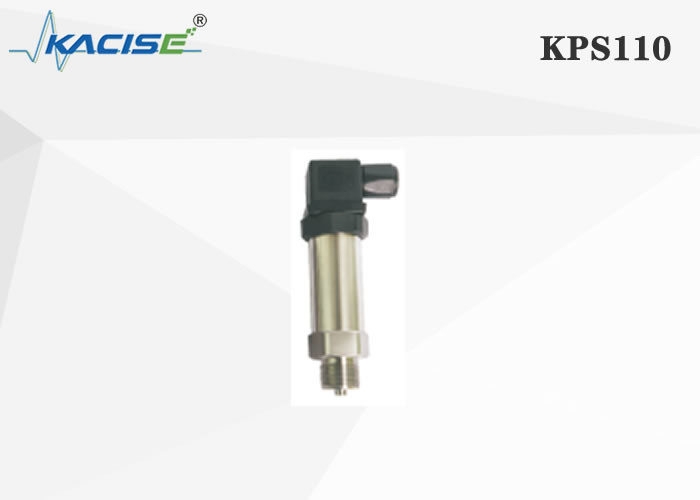

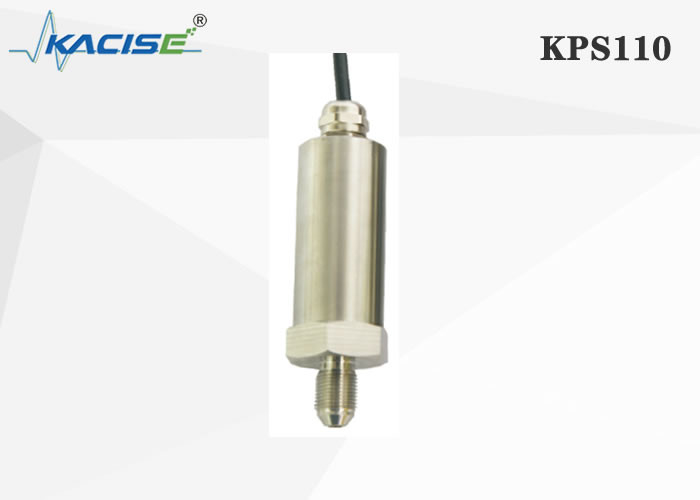

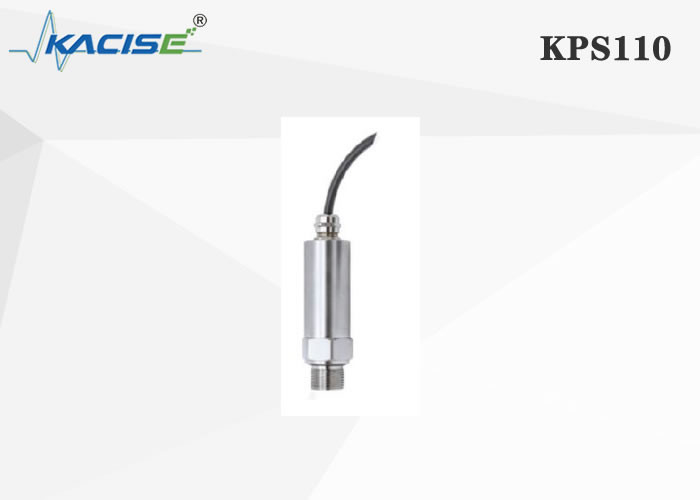

KPS110 pressure and temperature integrated transmitter is a temperature and pressure dual output sensor developed and produced by KACISE. It uses high stability and high reliability piezoresistive temperature and pressure integrated sensor and high-performance dual output transmitter. circuit, the overall performance is stable and reliable.
The products can be widely used in the detection and control of fluid pressure in petroleum, chemical, electric power, hydrology, geology and other industries.
2. Features
3. Application
4. Specifications
| Pressure Range | -0.1MPa┅0Mpa~0.01Mpa┅100Mpa | |
| Temperature Range | ||
| Overload | 2 times full scale pressure or 110MPa (whichever is the smaller) | |
| Pressure Type | Gauge pressure, absolute pressure, sealed gauge pressure | |
| Temperature Resistance | PT100 or PT1000 platinum resistance | |
| Output Type | RS485 temperature and pressure output | |
| Power Supply | 12~30V DC | |
| Load Resistance | ≥10k | |
| Insulation Resistance | 100MΩ,100V DC | |
| Case | stainless steel | |
| Sensor | 316L stainless steel | |
| Sealing Ring | fluororubber | |
| Cable | ∅7.5mm polyethylene special cable | |
| Degree of Protection | IP65 (plug type) | IP68 (cable type) |
| Compensation Temperature | -10℃～+80℃ | |
| Operating Temperature | -25℃～+80℃ | |
| Accuracy | 0.5% | |
| Zero Temperature Coefficient | 0.03%FS/℃(≤100kPa); 0.02%FS/℃(＞100kPa) | |
| Full Temperature Coefficient | 0.03%FS/℃(≤100kPa); 0.02%FS/℃(＞100kPa) | |
| Long-Term Stability | ±0.3%FS/year (max.) | |
5. Drawing
6.Ordering Information
| KPS110 | Pressure and Temperature Transmitter | ||||||
|
|
Pressure Range | -0.1MPa┅0MPa～0.01 MPa┅100MPa | |||||
| ［0～X］KPa or MPa | X: the actual pressure range | ||||||
| Temperature Range | -25℃~80℃ | ||||||
| ［0～Y］℃ | Y: the actual temperature range | ||||||
| Code | Output | ||||||
| V | RS485 | ||||||
| Material | |||||||
| Code | Diaphragm | Interface | Casing | ||||
| 22 | Stainless steel 316L | Stainless steel | Stainless steel | ||||
| 24 | Stainless steel 316L | Stainless steel 316L | Stainless steel 316L | ||||
| Code | Other function | ||||||
| B1 | Hirschmann connection | ||||||
| B2 | Fixed cable | ||||||
| PC3 | G1/2 male thread with flush film | ||||||
| PC5 | M20×1.5 male thread with flush film | ||||||
| C3 | G1/2 male thread | ||||||
| C5 | M20×1.5 male thread | ||||||
| G | gauge pressure | ||||||
| A | absolute pressure | ||||||
| S | sealed gauge pressure | ||||||
| KPS110 -［0～100］kPa -［0～50］℃ - V - 22 - B1C5G | |||||||
