| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KWS series water quality sensor |
| Price: | $100.00 - $299.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 2000 Piece/Pieces per Week pressure transducer transmitter |
| Usage: | Water Quality Sensor | Output: | Support RS-485, MODBUS Protocol, Support RS-485, MODBUS Protocol |
|---|---|---|---|
| Brand: | PH Sensor | Accuracy: | 5%F.S |
| Corrosive Medium: | Usable | Power Supply: | DC 5~12V, Current <50mA |
| Application: | Oil In Waste Water | Port: | Shanghai Or Other |

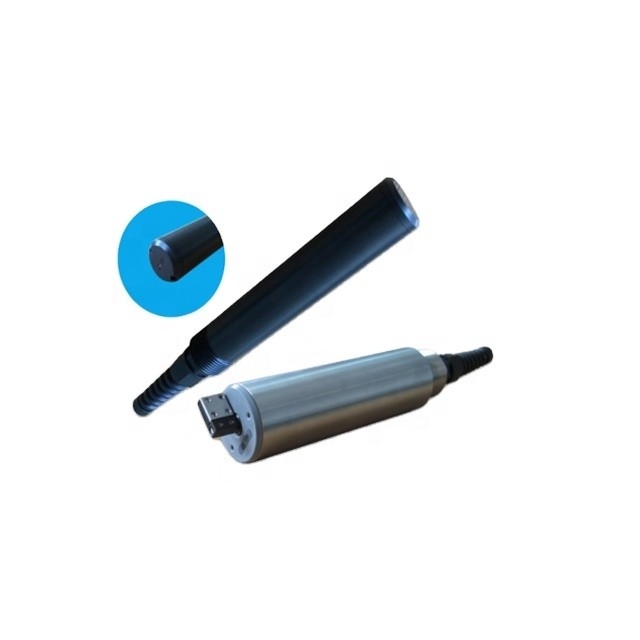

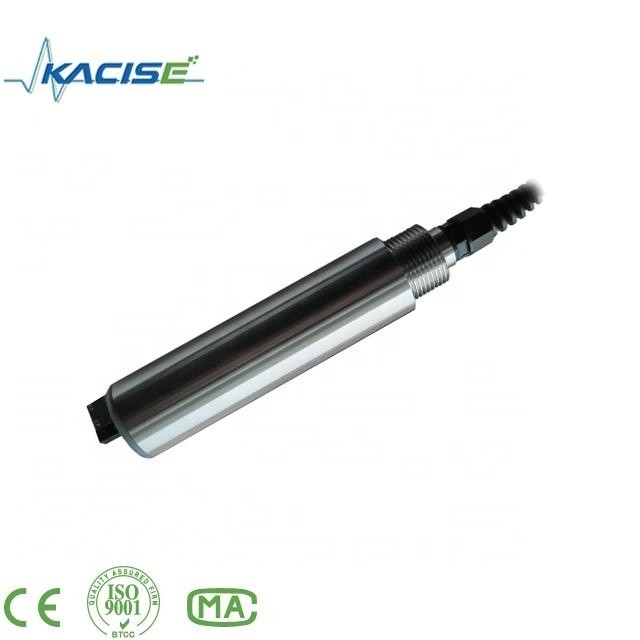

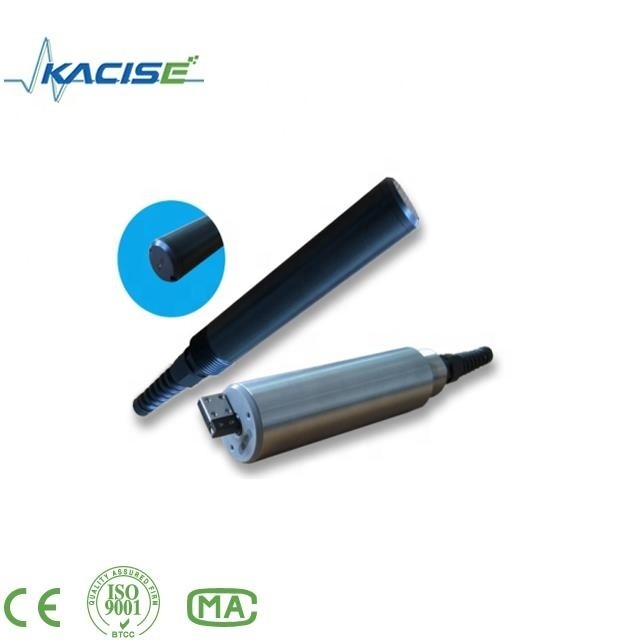

Oil in water analyzer sensor for waste water treatment
1. Feature
Digital sensor, RS-485 output, support MODBUS. Optional automatic cleaning brush to eliminate the impact of oil on the measurement, this product uses a unique optical and electronic filtering technology to eliminate the impact of ambient light on the measurement, not affected by suspended solids.
2. Application
The oil sensor in the water uses the principle of ultraviolet fluorescence analysis and has high sensitivity for detecting soluble and emulsifiable oil. were able
Use a self-cleaning brush to effectively eliminate the effect of oil on the measurement. Suitable for oil field monitoring, industrial circulating water, condensed water, wastewater treatment,
Various water quality monitoring programs, such as surface water stations.
3.Technical Specifications
| product | oil-in-water sensor | Self-cleaning oil-in-water sensor |
| principle | Ultraviolet fluorescence method | |
| Measuring range | 0-500ppb or 0-5000ppb | |
| Resolution | 0.1ppb | |
| accurate | 5% | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | DC 5~12V, current <50mA (when not cleaned) |
| size | Φ22mm*120mm | Φ33mm*156mm |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| product material | POM | |
| Self-cleaning system | exist | NO |
| Optical window | optical fiber | |

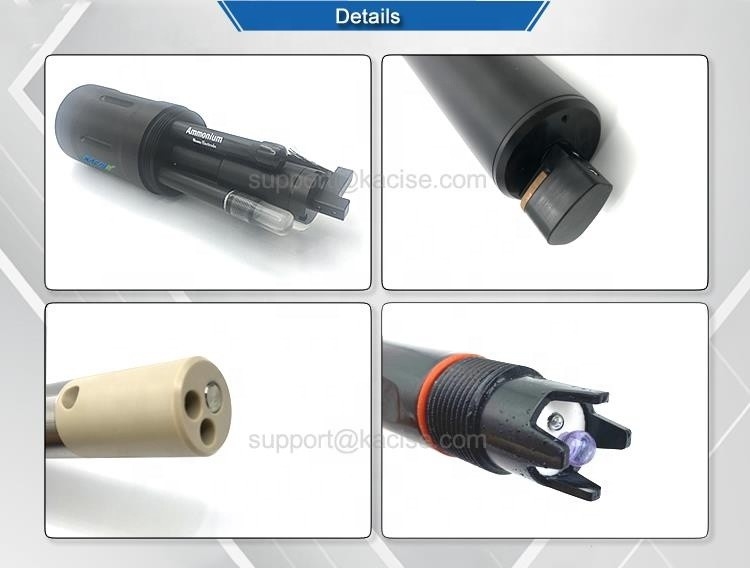

4.Application Picture
5.Packaging
Our Services
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
| 4.Any import fees or charges are afed by the buyers |
| Service : |
| 1.Provide you one-stop service of electronic components |
| 2.Competitive price advantage help to save your purchase cost and bring in you more profits |
| 3.Having advanced e-commerce capabilities |
| 4.Quick and accurate delivery and flexible logistics support |
| 5. Personalized service, based on your programs and ideas to serve you |
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
