| Price: | $800.00 - $1,400.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 500 Piece/Pieces per Month |
| Product Name: | Optical Fiber Chlorophyll Sensor | Type: | KWS-400 |
|---|---|---|---|
| Range: | 0~400ug/L Or 0~100RFU | Resolution: | 0.1 Ug/L Or 0.1% RFU |
| IP Grade: | IP68 | Linearity: | R2>0.99 |
| Port: | Xi'an Or Other |

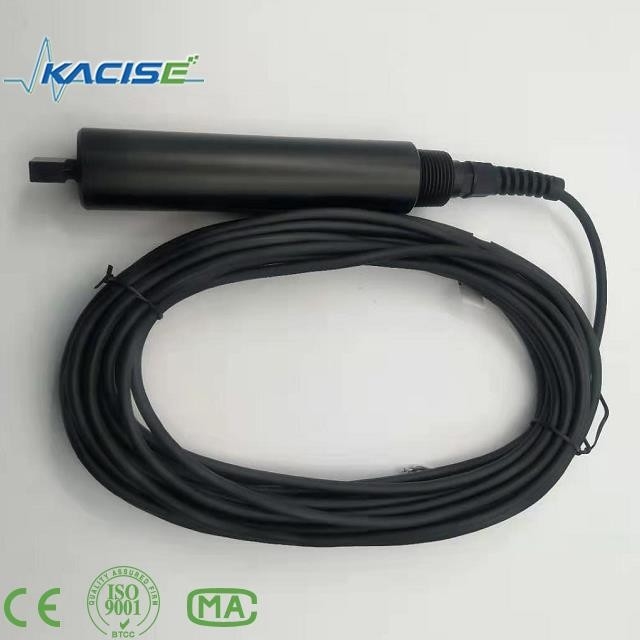

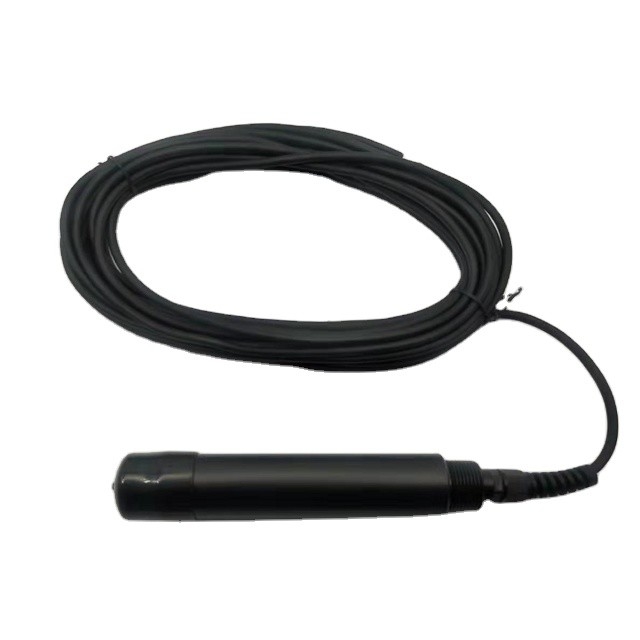

RS485 Water Chlorophyll Sensor KWS-400
Applications
Kacise fiber optic chlorophyll sensor measures the concentration of chlorophyll A in the water by using fluorescence principle. According to spectral absorption characteristic of chlorophyll A, the water body is illuminated by a high-energy LED light, chlorophyll A in water body is stimulated to produce fluorescence of specific wavelength. The sensor adopts fiber optic structure, which has excellent repeatability and stability. It does not affected by ambient light. With automatic cleaning brush, it can eliminate bubbles, reduce the impact of contamination on measurement. The sensor has the longer maintenance cycle. It has excellent stability after long-term online use.
Feature
Technical Specifications
Product | Fiber chlorophyll sensor | Self-cleaning chlorophyll sensor |
Model Type | KWS-400A | KWS-400B |
Principle | fluorescence principle | |
Measuring range | 0~400ug/L or 0~100RFU | |
Resolution | 0.1 µg/L or 0.1% RFU | |
Linearity | R2>0.99 | |
Protection level | IP68 | |
Deepest depth | Underwater 60 meters | underwater 10 meters |
temperature range | 0 ~ 50℃ | |
Output | Support RS-485, MODBUS protocol | |
Power supply | DC 5~12V, current <50mA | DC 5~12V, current <50mA (when not cleaned) |
Installation | Input type, circulation type | Input type |
size | Φ22mm*120mm | Φ33mm*156mm |
Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
Self-cleaning system | No | Yes |
Optical window | POM | |
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
Q: What information need to be provided to choose a suitable pressure sensor?
A: Medium, medium temperature, pressure range, output signal, power supply, pressure port, pressure type, electric connection, cable length.
Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments. OEM & ODM service are available.
Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
Q: What is your payment terms?
A: For mass production order, it is 30% deposit in advance and 70% balance before shipment.
