Place of Origin: | Shaanxi, China |
Brand Name: | KACISE |
Price: | $100.00 - $700.00/pieces |
---|---|
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Supply Ability: | 100 Piece/Pieces per Month |
Principle: | 90° Scattered Light | 90° Scattered Light: | 0-1000NTU |
---|---|---|---|
Resolution: | 0.1NTU | Accurate: | 0.3NTU |
Protection Level: | IP68 | Deepest Depth: | Underwater 60 Meters, |
Temperature Range: | 0 ~ 50℃ | Output: | Support RS-485, MODBUS Protocol |
Power Supply: | DC 5~12V, Current <50mA | Product Material: | POM |
Port: | Xi'an | ||
High Light: | Online Optical Turbidity Sensor,Industrial Wastewater Treatment Optical Turbidity Sensor,Industrial Online Tss Sensor |

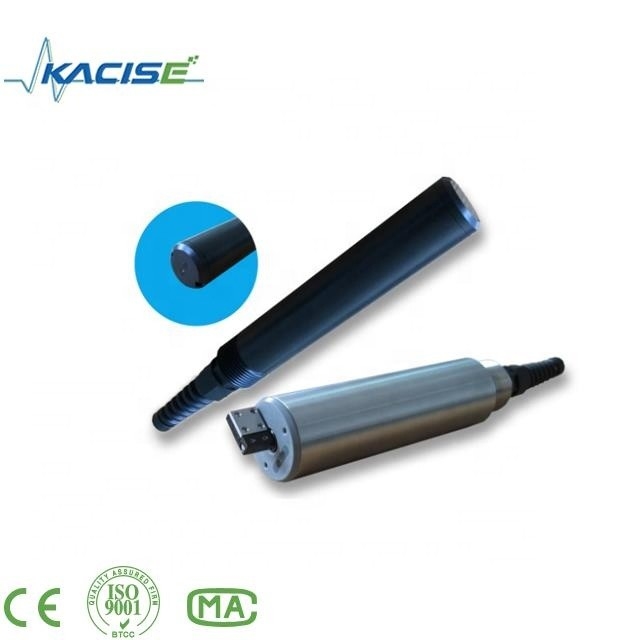

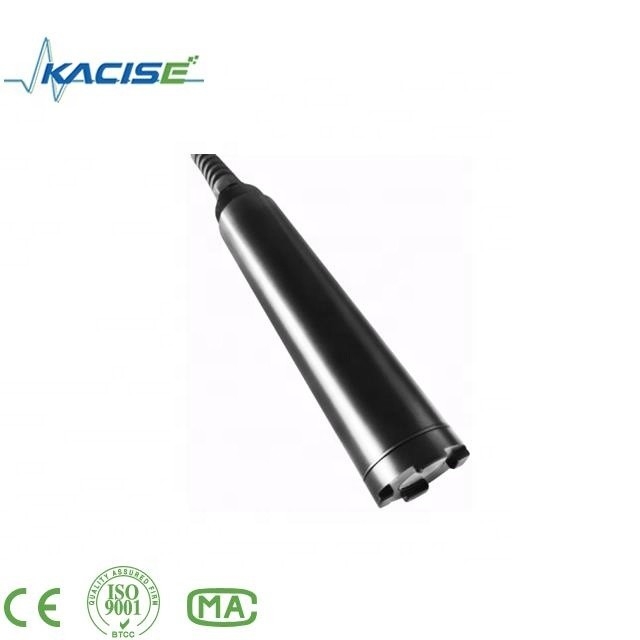

online rs485 industrial wastewater treatment optical turbidity sensor industrial online tss sensor
1. Applications
Kacise Sensing applies fiber technology to the turbidity sensor to make the sensor
Better repeatability and stability, not susceptible to ambient light. coordination
The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement.
Long-term online use, longer maintenance intervals and better stability.
2. Feature
Digital sensor, RS-485 output, support MODBUS, with automatic cleaning brush, prevent pollution, eliminate air bubbles, strong anti-interference ability, no ambient light and chromaticity, 90° scattered light principle, better fiber technology repeatability.
3.Technical Specifications
product |
Fiber turbidity sensor |
Self-cleaning turbidity sensor |
principle |
90° scattered light |
|
Measuring range |
0-1000NTU |
|
Resolution |
0.1NTU |
|
accurate |
0.3NTU |
|
Protection level |
IP68 |
|
Deepest depth |
Underwater 60 meters |
underwater 10 meters |
temperature range |
0 ~ 50℃ |
|
Output |
Support RS-485, MODBUS protocol |
|
Power supply |
DC 5~12V, current <50mA |
DC 5~12V, current <50mA (when not cleaned) |
size |
Φ22mm*120mm |
Φ33mm*156mm |
Probe cable length |
10 m, customizable 5 m, 15 m and 30 m cable |
|
product material |
POM |
|
Self-cleaning system |
exist |
No |
Optical window |
optical fiber |
