| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KWS-130, KWS-131 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 500 Piece/Pieces per Month |
| Features: | Self-cleaning Brushes, Optical Detection | Product Name: | Online COD Sensor |
|---|---|---|---|
| Application: | COD Analysor, Water Quality Sensor, Waste Water Treatment | Testing: | SAC, COD, BOD, TSS And Temperature |
| Output: | RS-485, Modbus | COD Range: | 0 To 500mg/L Equiv. KHP, 0 To 1500mg/L Equiv. KHP |
| COD Resolution: | 0.01mg/L | Accuracy: | 0.5 % |
| Material: | 316L (Titanium Customizable) | IP Rating: | IP68 |
| Port: | Xi'an Or Other | ||
| High Light: | Wastewater Treatment Online COD Sensor,Digital RS485 Online COD Sensor,Digital RS485 Water Quality Monitor |
||

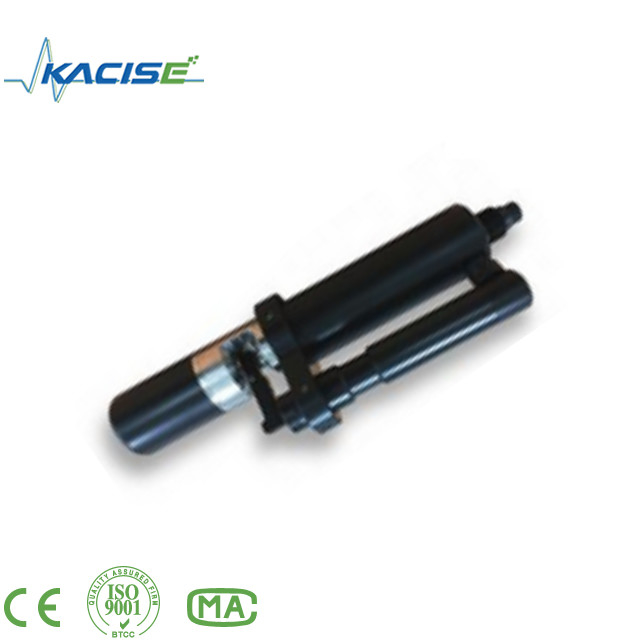

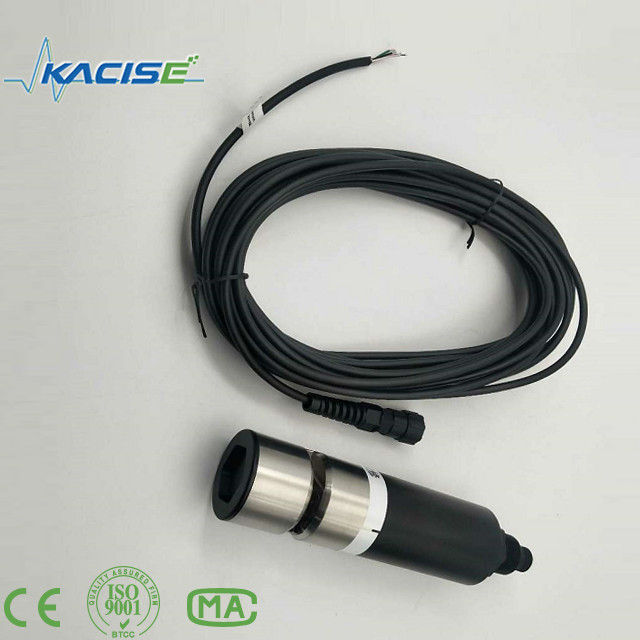

The KWS-130 / KWS-131 model UV254 COD sensor does not require reagents, is pollution-free, and is more economical and environmentally friendly. It can monitor water quality online for a long time, measure and output COD, BOD, TSS and temperature at the same time. The sensor integrates a TSS detection light source, which can automatically compensate for the interference of the water sludge to be measured. The sensor is equipped with an automatic cleaning brush device, and it still has excellent stability even for long-term monitoring.
No reagents, no pollution, more economical and environmentally friendly;
It can measure parameters such as COD, BOD, TSS and temperature;
Automatically compensates for sludge disturbance, with excellent test performance;
With self-cleaning brushes to prevent biofouling and longer maintenance intervals.
| Model | KWS-130 | KWS-131 |
| COD Range | 0 to 500mg/L equiv. KHP | 0 to 1500mg/L equiv. KHP |
| COD Accuracy | ±5% | ±5% |
| COD Resolution | 0.01mg/L | |
| BOD Range | 0 to 400mg/L | 0 to 1200mg/L |
| BOD Resolution | 0.01mg/L | |
| TSS Range | 0-3000mg/L | 0-5000mg/L |
| TSS Accuracy | ±5% | ±5% |
| TSS Resolution | 0.01 mg/L | |
| Material |
316L (Titanium customizable) |
|
| Operating Temperature | 0~50℃ (no freezing) | |
| IP Rating | IP68 | |
| Output | RS485, Modbus | |
| Power Supply | DC12V-24V, ≥1A | |
| Calibration | Support one point and two-points calibration | |
| Max. Pressure | 3 bar | |
| Cable Length | 10m | |
Dimension
