| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KWS600 |
| Price: | $100.00 - $1,000.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 500 Piece/Pieces per Month |
| Usage: | Water Quality Sensor | Theory: | Ultraviolet Fluorescence Method |
|---|---|---|---|
| Output: | RS485 | Product Brand: | KACISE |
| Product Model: | KWS-600 | Application: | Aquaculture And Fisher |
| Principle: | Ultraviolet Fluorescence Method | Operating Temprature: | 0~45℃,<0.2MPa |
| Housing Material: | POM And 316SS | Measuring Range: | 0~20mg/L(0~200%saturation) |
| Power Supply: | 12~24VDC ±10% | Port: | Alibaba.com Ocean Shipping Service From China To U.S |
| High Light: | Aquaculture DO Water Quality Sensor,Dissolved Oxygen Sensor Rs485,Fisher Dissolved Oxygen Sensor |
||

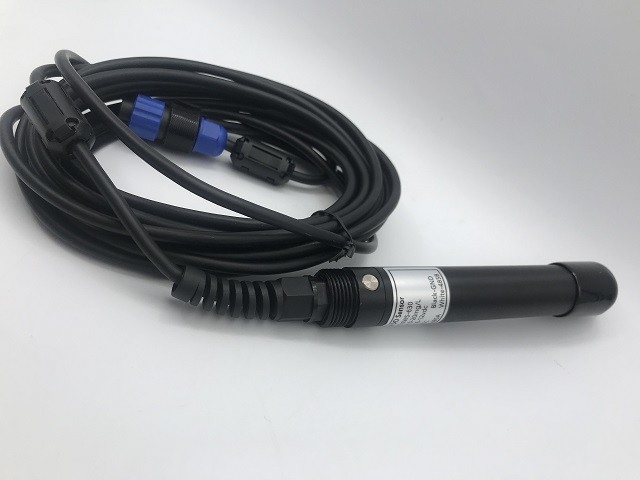

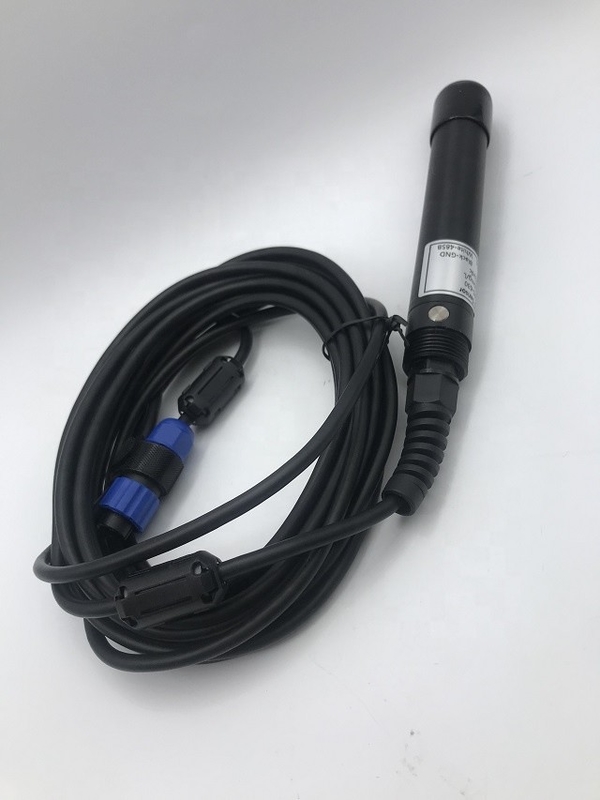

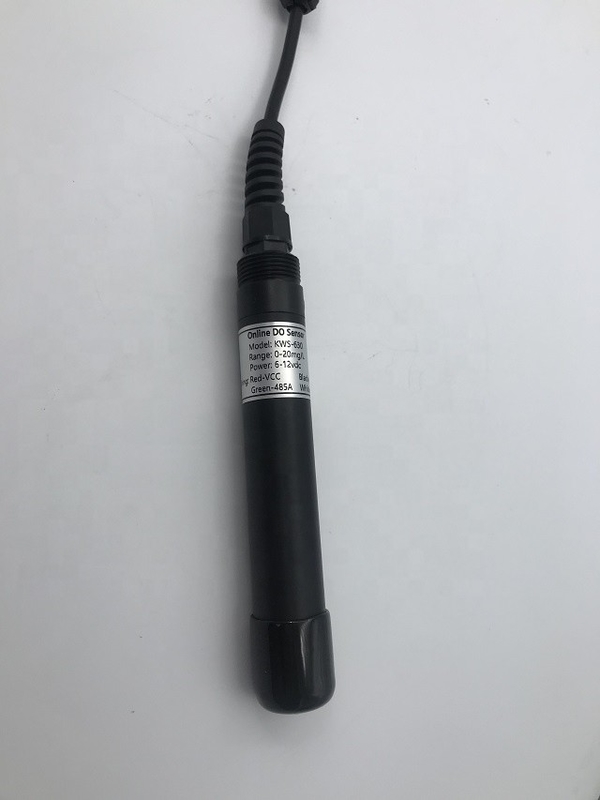

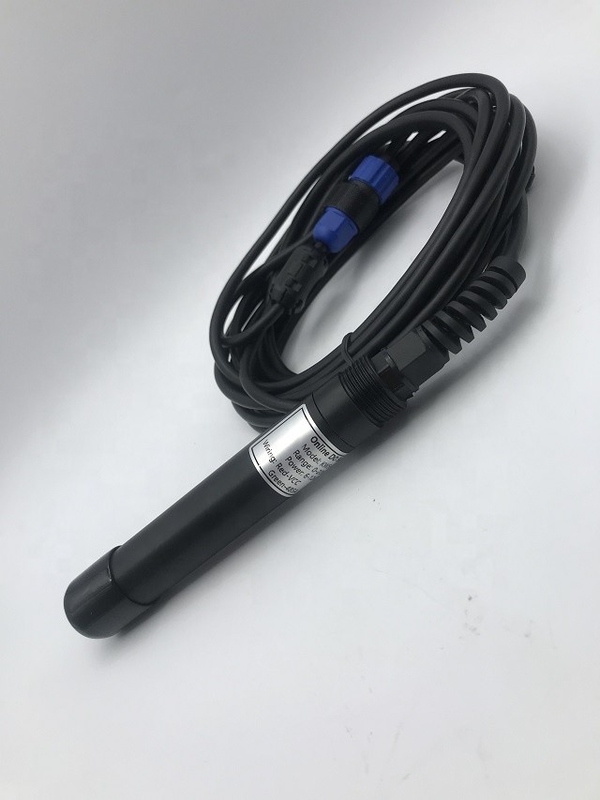

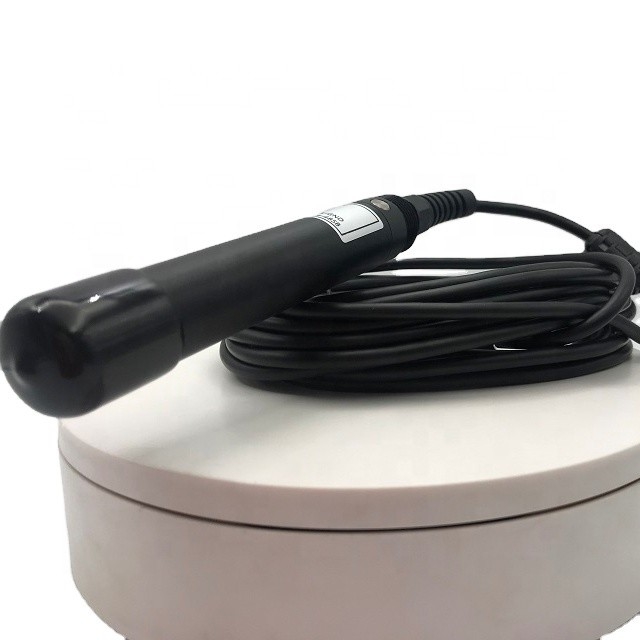

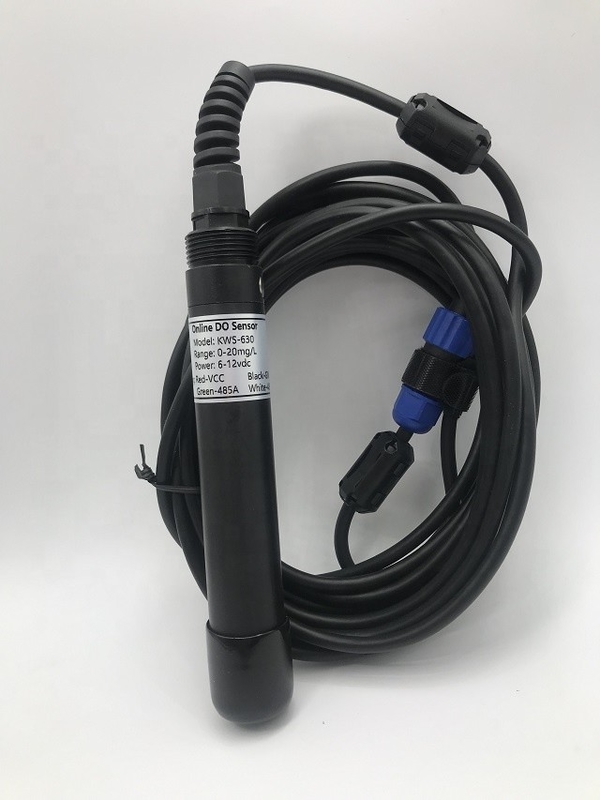

Online fluorescence dissolved oxygen sensor
1. Applications
The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. Kacise independently develops high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.
Features
Technical Specifications
|
product |
Online fluorescence dissolved oxygen sensor
|
|
|
principle |
Ultraviolet fluorescence method |
|
|
Measuring range |
0~20mg/L |
|
|
Response time |
10 sec |
|
|
accurate |
1% |
|
|
Protection level |
IP68 |
|
|
Deepest depth |
Underwater 60 meters |
underwater 10 meters |
|
temperature range |
0 ~ 50℃ |
|
|
Output |
Support RS-485, MODBUS protocol |
|
|
Power supply |
DC 5~12V, current <50mA |
|
|
size |
Φ26*177.5 mm |
|
|
Probe cable length |
10 m, customizable 5 m, 15 m and 30 m cable |
|
|
Fluorescent cap life |
1 year |
|
|
Maximum working pressure |
6bar |
|
|
product material |
POM or 316 ss |
|
Installation and electrical connection
1. The temperature sensing part of the installation should be immersed below the liquid level to avoid collision with the surface of the membrane head. The membrane head portion should be protected from deposits.
2. Electrical connection
Red line - power cord (12 ~ 24V)
Black line - ground (GND)
Blue line - 485A
White line - 485B
Bare wire - shield
After wiring is completed, it should be carefully checked to avoid incorrect connections before powering up.
Cable specification: Considering that the cable is immersed in water (including sea water) for a long time or exposed to the air, the cable has certain corrosion resistance. The outer diameter of the cable is Φ6 mm and all interfaces are waterproof.
