| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | kws |
| Price: | $100.00 - $299.00/pieces |
|---|---|
| Packaging Details: | Carton |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Measuring Range: | 1uS/cm~200 MS/cm | Response Time: | 10 Sec |
|---|---|---|---|
| Temperature Range:: | 0 ~ 50℃ | Output Signal: | RS-485/ MODBUS Protocol |
| Probe Cable Length: | 5m, 1m, 15m, 30m | Product Material: | Peak |
| Accuracy: | <1% | Protection Level: | IP68 |
| Port: | Shanghai, Tianjin | ||
| High Light: | Anti Interference Four Electrode Conductivity Sensor,MODBUS Protocol Four Electrode Conductivity Sensor |
||

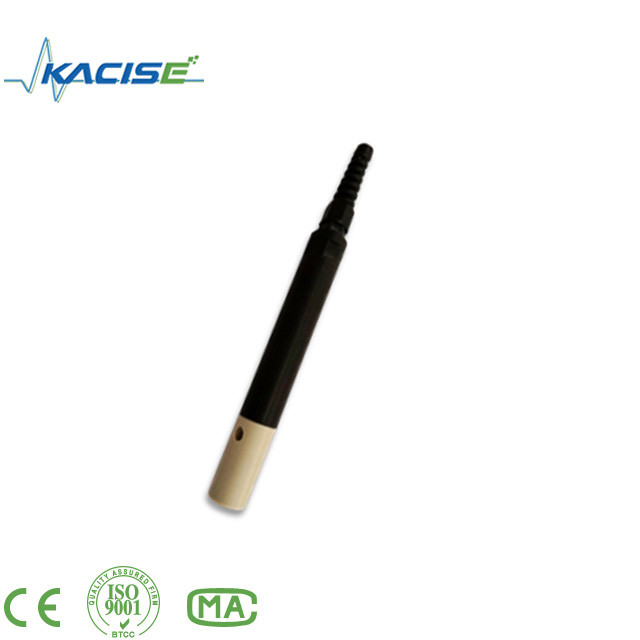

Four-electrode conductivity sensor
1. Applications
Kacise Sensor launched a new generation of four-electrode conductivity sensor, using international leading four-electrode technology, RS485 digital interface, support MODBUS protocol, environmentally friendly design. Compared to traditional two-electrode conductivity sensors, it offers higher accuracy, wider measurement range and excellent stability. The four-electrode conductivity sensor also has unique advantages in terms of number: one is to completely solve the polarization problem in the high conductivity test; the other is to completely solve the polarization problem in the high conductivity test; the other is to solve the problem of inaccurate reading caused by electrode contamination.
2. Feature
1uS / cm~200 mS / cm, accuracy <1%
RS485 output, support Modbus, open communication protocol
0~50°C, protection class IP68, maximum pressure 6bar
Will not be polarized and can be used continuously online
Wide range of applications and a wider range of applications
Very resistant to pollution and strong anti-interference
Very stable measurement and higher precision
Robust construction and long service life
3.Technical Specifications
| Measuring range |
1uS/cm~200 mS/cm
|
| Response time | <10 sec |
| Protection level | IP68 |
| accuracy | <1% |
| Electrode material | nickel |
| product material | peak |
| temperature range | 0 ~ 50℃ |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 5~12V, current <50mA |
| Temperature sensor | NTC |
| Shell diameter | 22mm |
| Shell length | 146.5 mm |
| Probe cable length | 10 meters, customers can choose 5 meters, 15 meters and 30 meters cable |
| Optical window | optical fiber |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply high quality Oil in water sensor, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for Oil in water sensor?
A: Yes, we have the warranty of 12 months.
