| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | KF Series |
| Price: | $100.00 - $299.00/pieces |
|---|---|
| Packaging Details: | Carton |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Measuring Range: | 0-1000mg/L | Response Time: | 10 Sec |
|---|---|---|---|
| Accurate: | <5% | Output Signal: | RS-485/ MODBUS Protocol |
| Probe Cable Length: | 5m, 1m, 15m, 30m | Power Supply: | Power Supply |
| PH Range: | 4-10 | PH Accurate: | ±0.1 |
| Protection Level: | IP68 | Port: | Shanghai, Tianjin |
| High Light: | Online Ammonia Nitrogen Sensor,NH4-N Ammonia Nitrogen Sensor |
||

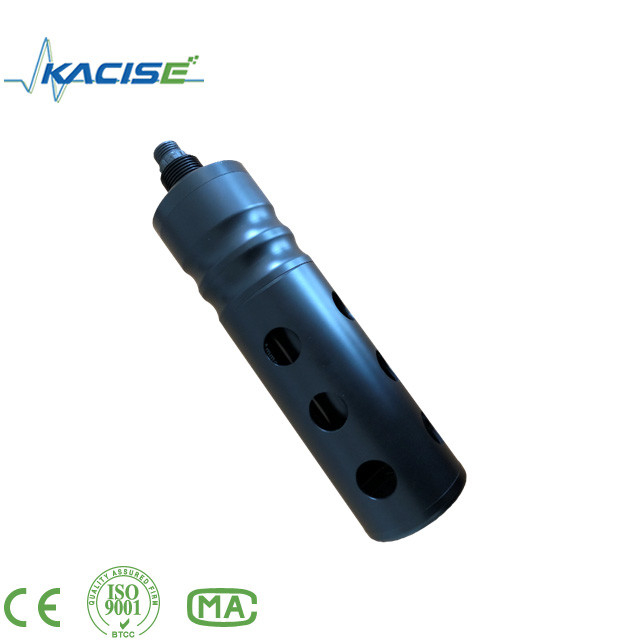

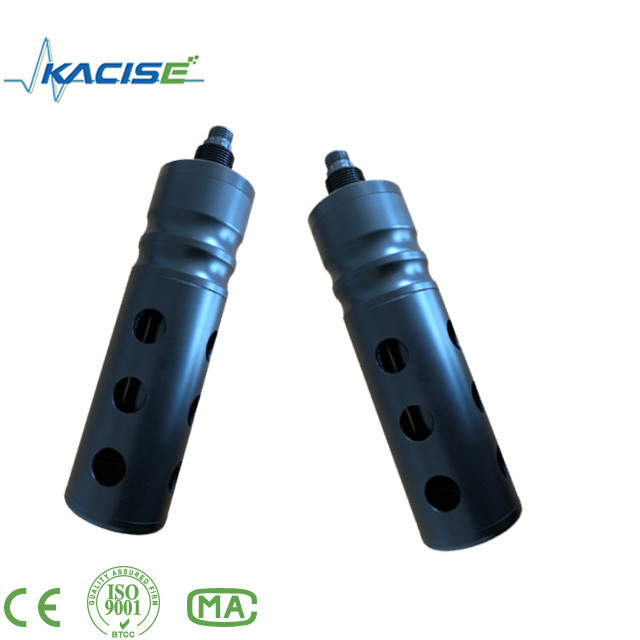

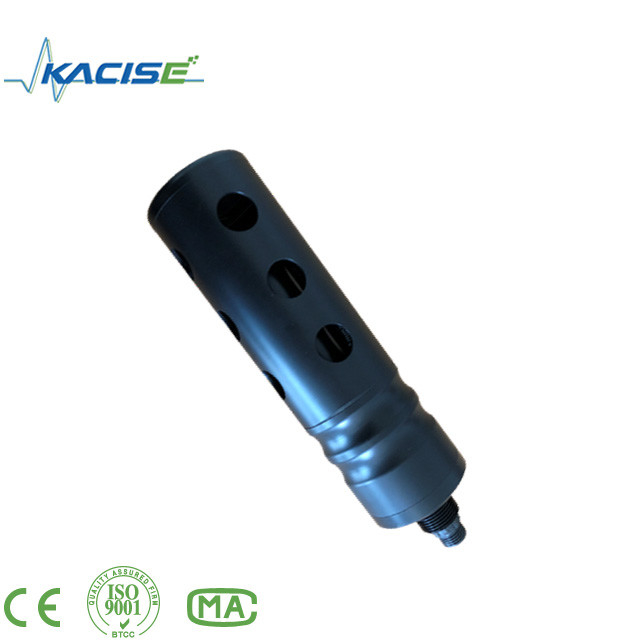

Online NH4-N ammonia nitrogen sensor
1. Applications
Kacise introduces an online ammonia nitrogen sensor that requires no reagents, is green and non-polluting, and can be monitored online in real time. Integrated ammonium, potassium (optional), pH and reference electrodes automatically compensate for potassium (optional), pH and temperature in water. It can be directly put into installation, which is more economical, environmentally friendly and convenient than traditional ammonia nitrogen analyzer. The sensor has a self-cleaning brush that prevents microbial adhesion, resulting in longer maintenance intervals and excellent reliability. It adopts RS485 output and supports Modbus for easy integration.
2. Feature
Digital sensor, RS-485 output, support MODBUS
No reagents, no pollution, more economical and environmentally friendly
Automatically compensates for pH and temperature in water
Self-cleaning brush to prevent microbial adhesion and longer maintenance intervals
3.Technical Specifications
| product | parameter | |
| Measuring range | 0-1000mg/L NH4-N | |
| Response time | 10 sec | |
| accurate | 5% | |
| pH range | 4-10 | |
| pH accurate | ±0.1 | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | |
| size | Φ26*177.5 mm | |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| product material | POM | |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply high quality Oil in water sensor, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for Oil in water sensor?
A: Yes, we have the warranty of 12 months.
