| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | KEF Series |
| Price: | $80.00 - $200.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 3000 Piece/Pieces per Month negotiable |

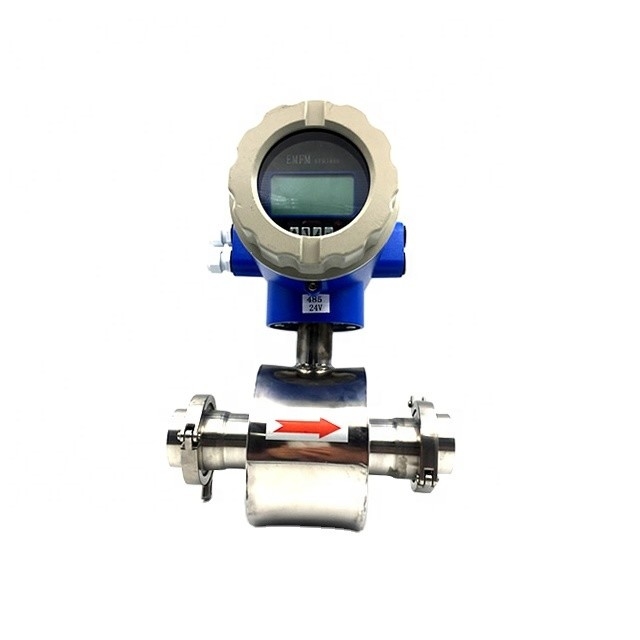

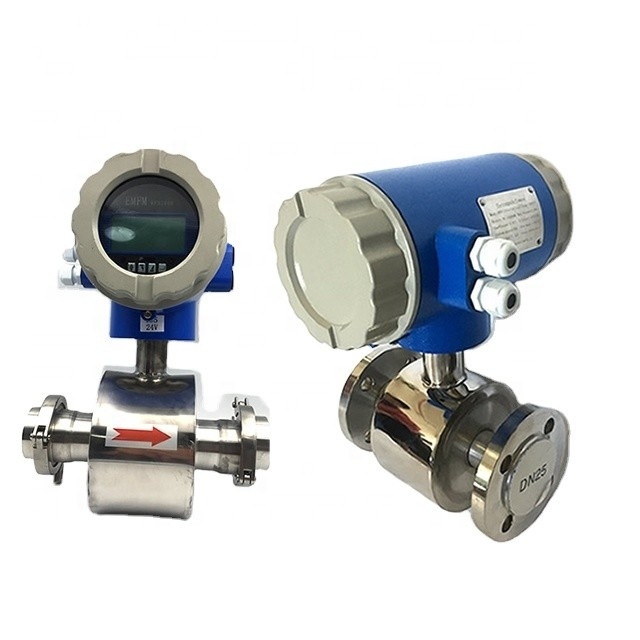

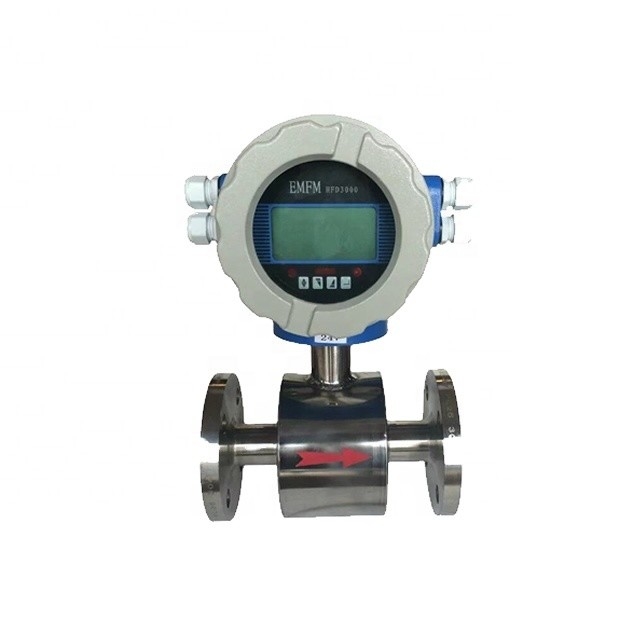

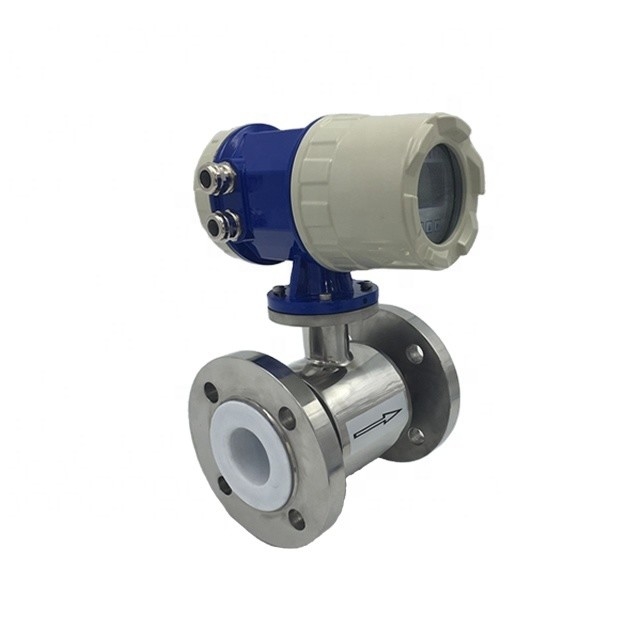

| Power: | Electronic | Product Name: | Ecnomical Digital Flange Type Ethanol Flow Meter |
|---|---|---|---|
| Accuracy: | Up To 1.0% | Type: | Magnetic Flow Meter |
| Power Supply: | 220V 50Hz /24Vdc | Output: | 4~20mA/ RS485 / Hart |
| Warranty: | 12 Months | Certificate: | ISO/CE/FCC/3C/ROHS |
| Port: | Shanghai Or Other |
Introduction
ntelligent Electromagnetic Flowmeter is a kind of induction instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube. It adopts the technology of insertion of single chip to realize digital excitation and employs CAN local fieldbus.
Intelligent Electromagnetic Flowmeter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc. It does not have any moving parts and is ideal for wastewater applications or any dirty liquid which is conductive or water based.
Besides measuring flow of general conductive liquid electromagnetic flow meter can measure flow of liquid-solid mixed fluid, high-viscosity fluid and salt, strong acid and strong alkali.
Features
1. Simple structures, firm, no movable parts and long operation life.
2. No intercepting fluid parts, no pressure loss and fluid clogging.
3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.
4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.
5. Employ Teflon or rubber liner and different combination of electrode material such as Hastelloy C, Hastelloy B, 316L, and Titanium and adapt the need of different mediums.
6. Supply many styles of flow meters such as inline type and insertion type, etc.
Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.
7. Integral type electromagnetic flow meters and remote type electromagnetic flow meters.
8. LCD back light display with high clearness. (Option: LED display is optional).
Items | Description | |
Suitable Diameter | DN25~DN2600 (below DN25 non-standard) | |
Suitable Fluid | Liquid with conductive ratio more than 5 μs/cm | |
Upper Limit of Span | 0.5~10m/s. 1~5m/s recommended | |
Accuracy | 0.3% (Option), 0.5%, 1.0% of F.S.. | |
Repeatability | Below 0.25% | |
Power | AC: 220V, 50-60Hz; DC: +24V(Option) | |
Output Signals | 4~20m ADC, load ≤ 750ohm, 0~3kHz, 5V with source and changeable width. High terminal and effective frequency output Voltage output:0-5 V DC | |
Communication Interface | RS-232; RS-485; HART | |
Operation Pressure | 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special) | |
Fluid Temperature | -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material | |
Ambient Temperature | Sensor -40°C ~80°C. transducer -15°C ~50°C | |
Cable Outlet Size | M20×1.5 | |
Power Supply | 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years) | |
Protection Ratings | Integral type: IP65. Remote type: sensor IP68, transducer IP65. | |
EX-proof protection | Exde ib ii BT2 | |
Quality control | ISO9001-2008, CE | |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply high quality Sanitary Hygienic Stainless Steel Electromagnetic Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
