| Place of Origin: | Shaanxi, China |
| Brand Name: | GXSENSOR support OEM |
| Model Number: | GXSENSORS-PS540 |
| Price: | $55.00 - $68.00/pieces |
|---|---|
| Packaging Details: | 1pc/box, many boxes/ carton, some carton/wooden case, or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Certificate:: | CE |
| Warranty: | 12 Months Exchange | Type: | Adjustable Differential Pressure Switch |
| Protection: | IP65 | Medium Measurement: | Non-corrosive Dry Gas; Weak Corrosive And Damp Gas |
| Output Signal: | 4~20mA, 1~5V, 0~5V Optional | Accuracy: | ±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional |
| Operating Voltage: | 24VDC | Port: | Shanghai Or Other |
| High Light: | Water Differential Air Pressure Sensor IP65,Boiler Differential Air Pressure Sensor |
||
Feature
High sensitivity
High accuracy and high stability
Mini outline, easy to install
Application
Boiler
Dust precipitator
Air duct pressure
Differential and negativepressure
Instruction

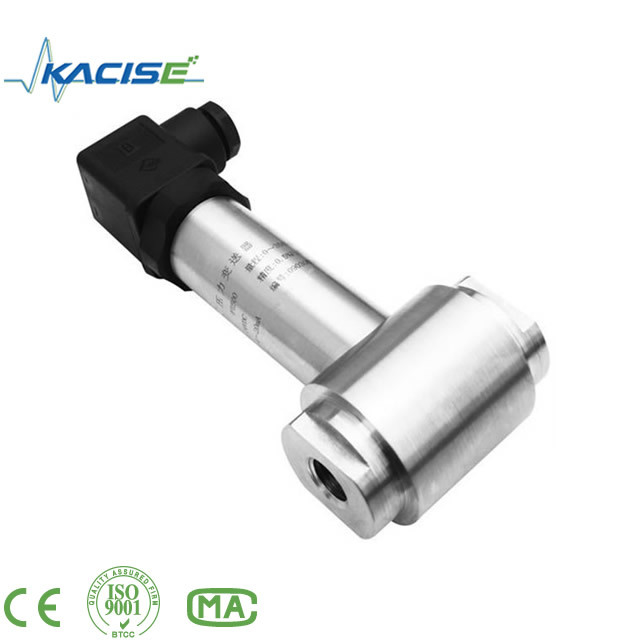

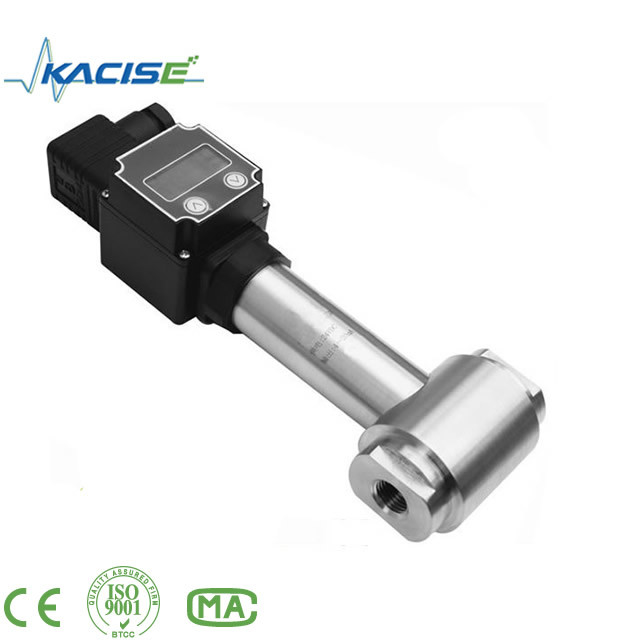

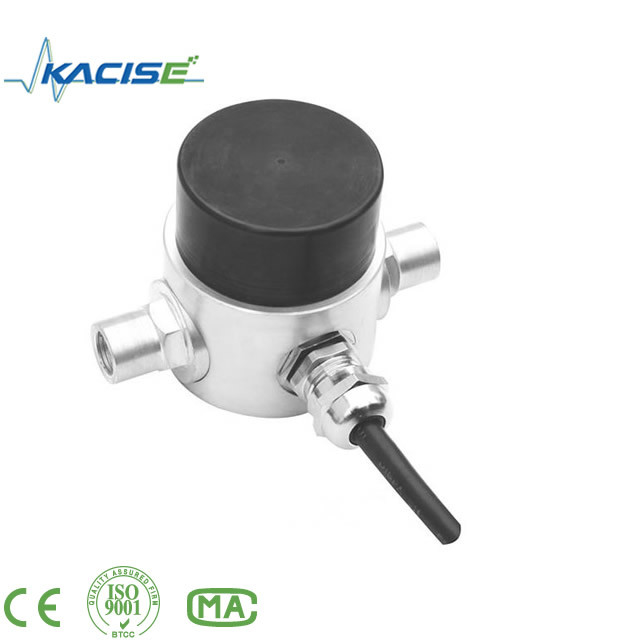

GXPS540 series adjustable differential pressure switch Wind Pressure & Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.
Parameter of 2014 low cost high quality adjustable differential pressure switch
|
Measuring range: |
0-100Pa~100Kpa; -50KPa~-50Pa-50Pa~50Kpa |
|
Protection: |
IP65 |
|
Medium Measurement: |
Non-corrosive dry gas; weak corrosive and damp gas |
|
Output signal: |
4~20mA, 1~5V, 0~5V Optional |
|
Operating voltage: |
24VDC |
|
Accuracy: |
±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional |
|
Adjustment |
Zero and range are adjustable externally |
|
Medium temperature: |
-10~100°C |
|
Ambient temperature : |
-20~80°C |
|
Electric Interface: |
outlet cable |
|
Shell material: |
Aluminum alloy |
Dimension
Ordering information
|
GXPS540 |
|
Product Serial |
||||
|
|
X (Pa or KPa) |
|
Pressure Range |
|||
|
|
0.3 |
|
±0.3%FS Accuracy |
|||
|
0.5 |
|
±0.5%FS Accuracy |
||||
|
1.0 |
|
±1%FS Accuracy |
||||
|
|
4mA |
|
4~20mA Output |
|||
|
V0 |
|
0~5VDC Output |
||||
|
V1 |
|
1~5VDC Output |
||||
|
RSV |
|
reserved |
||||
|
|
F8 |
|
Φ8 tower-type interface |
|||
|
RSV |
|
reserved |
||||
|
|
CX |
X meters Cable |
||||
|
RSV |
reserved |
|||||
|
GXPS540 |
1KPa |
0.3 |
4mA |
F6 |
C2 |
Example |

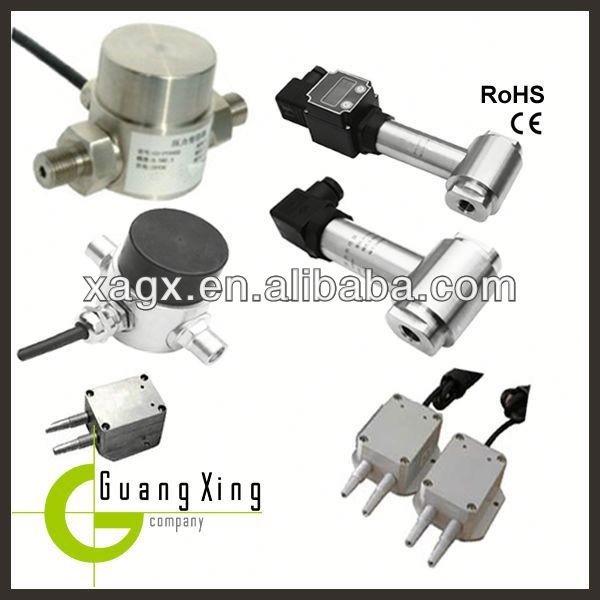

Other adjustable differential pressure switch for your choice
**************************************************************************************************
More excellent product for pressure transducer please refer to:
http://xagx.en.alibaba.com/productgrouplist-213203032/Pressure_Transducer.html
High temperature pressure transducer please refer to:
http://xagx.en.alibaba.com/product/1251576180-213203032/GXPS800HAB_High_temperature_400C_550C_probe_pressure_transmitter.html
