| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA11 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Scale Factor One-month Composite Repeatability: | ≤80 (1σ) (ppm) | Weight: | ≤50(g) |
|---|---|---|---|
| Storage Temperature: | -55~ +80(℃) | Bias Temperature Sensitivity: | ≤40(μg/℃) |
| Range: | ±30g | Vibration Peak Sine: | 20g@20Hz ~ 2000Hz |
| Size: | Ø25×25(mm) | Operating Temperature: | -45 ~ +100(℃) |
| High Light: | 25×25mm Quartz Accelerometer,Measurement While Drilling Accelerometer Sensor,Oil Drilling Quartz Accelerometer |
||

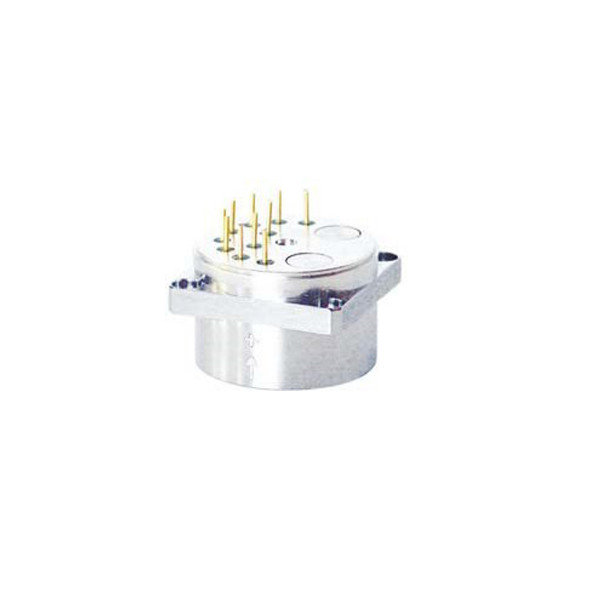

The KSQA11 Quartz Accelerometer is designed for oil and gas applications, offering exceptional anti-shock capabilities and high-temperature resistance. Its reliable performance makes it suitable for both static and dynamic acceleration measurements, extending its use beyond aviation and aerospace inertial tests. Widely employed in aerospace inertial navigation, guidance and control, as well as industrial measurement, the product is also utilized for measurement-while-drilling (MWD) in oil and gas fields.
● Small size and light weight
● Analog output
● Excellent index repeatability
● Shock and vibration resistance
● Wide load resistance range
● Square precision mounting flanges
● Wide temperature range
| Performance | KSQA11 |
| Input Range (g) | ±30 |
| Bias (mg) | ≤8 |
| Temperature Sensitivity (μg/℃) | ≤40 |
| One-month Composite Repeatability (1σ) (μg) | ≤50 |
| Scale Factor (mA/g) | 1.0 ~ 1.6 |
| Temperature Sensitivity (10-6/℃) | ≤80 |
| One-month Composite Repeatability (1σ) (10-6) | ≤80 |
| Linearity (μg/g2) | ≤40 |
| Input Voltage (V) | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +100 |
| Size (mm) | Ø25×25 |
| Weight (g) | ≤50 |
 |
|

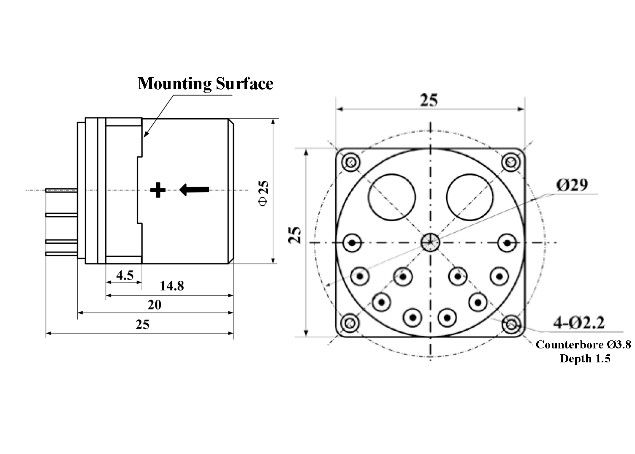

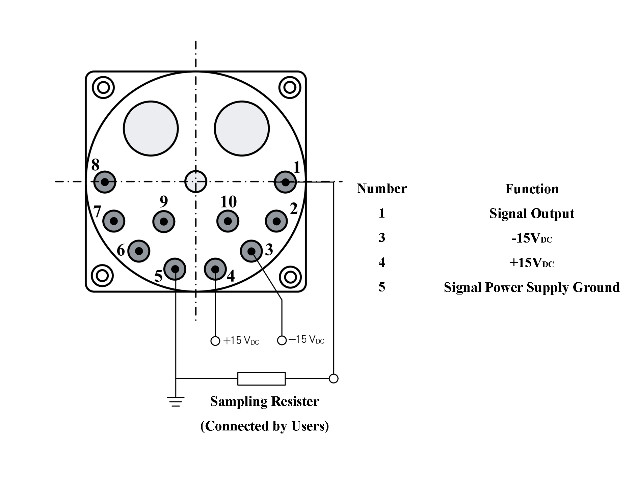

| KSQA11 Configuration Drawings | KSQA11 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 25g@30Hz ~ 500Hz |
| Shock | 500g, half-sine, 1ms ~ 3ms |
| Storage Temperature | -55℃ ~ +80℃ |
The Kacise KSQA11 Accelerometer Sensor is suitable for a wide range of applications, most notably in industrial and medical settings. It can be used to detect and measure the motion velocity and gravity force of objects in manufacturing, automotive, and aerospace industries. It can also be used in medical diagnostics and research to measure body movement and position. Additionally, its high precision and accuracy make it perfect for vibration analysis in a variety of industries.
Our technical support and service staff are passionate about providing the highest quality customer service. We are committed to providing quality, timely solutions for all your Accelerometer Sensor needs.
If you experience any technical difficulties, our team is available to provide guidance and assistance. Our knowledgeable and friendly staff are available to answer any questions or concerns you may have about your Accelerometer Sensor. We strive to provide a comprehensive suite of resources and tools to help you get the most out of your Accelerometer Sensor.
If you ever need assistance with your Accelerometer Sensor, our expert technicians can provide remote or on-site support. We are committed to resolving any issues you may have quickly and efficiently.
We are available to provide technical support Monday through Friday, from 9am to 6pm. Our team can also be reached via email or phone for any questions or concerns.
Accelerometer Sensor will be packaged in a secure and sturdy box. The box will be labeled with the product name, product number, and the company logo. The box will also include a user manual and the necessary cables.
The product will be shipped via a reliable courier service. All shipments will be insured and tracked for delivery. The customer will receive a tracking number that can be used to monitor the progress of the shipment.
