| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KXV9721 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Sleep Current Iop3: | 3μA Typ | Storage Temperature TSTG: | Storage Temperature TSTG |
|---|---|---|---|
| Bias ZRL: | ±1°/s (0 LSB Typ) | Bias Variation Over Temperature A ZRLta: | ±0.25°/h |
| Scale Factor Variation Over Temperature Spt: | ±3% | Bias Variation Over Temperature B ZRLtb: | ±1°/h |
| Rate Range I: | ±400°/s | Current Consumption Iop1: | 900μA Typ |
| High Light: | Iop3 3μA Electronic Gyroscope Sensor,CS 5% Electronic Gyroscope Sensor |
||

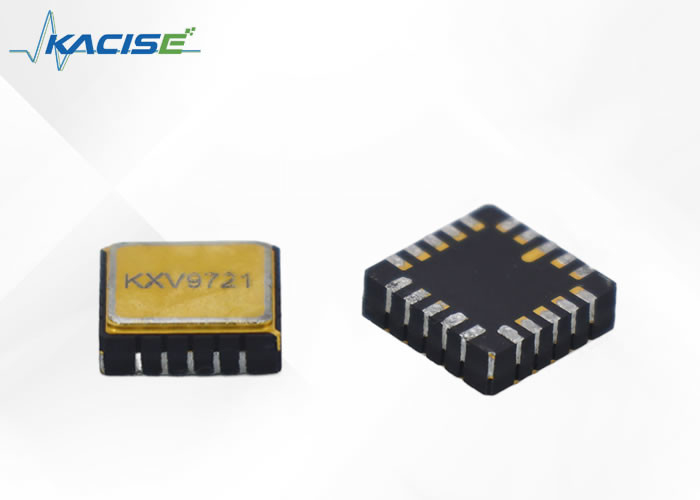

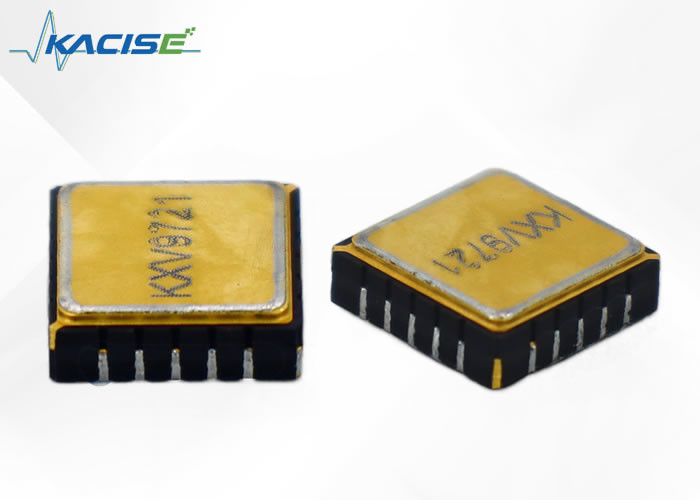

The KXV9721 boasts superior stability in output bias and generates low noise. Additionally, this digital quartz gyroscope is based on the innovative quartz MEMS technology, which is completed through the use of semiconductor processing technology.
Furthermore, these sensors feature compatibility with a broad range of digital output interfaces (such as SPI and I2C) and allow for independent interface power supply voltage settings to establish communication with different interfaces. The low-pass and high-pass filters can be user-selected to enable a variety of cut-off frequencies suitable for different applications. These sensors are designed to consume low power and are ideal for use in a vast range of products, varying from wearable devices and consumer electronics to industrial machinery.
● Excellent bias temperature coefficient 0.0016 (°/s)/°C Typ
● Low angle random walk 0.065 °/√h Typ
● Integrated user-selectable digital filter and detuning frequency eliminate filter
● SPI or I2C serial interface
● Angular rate output (16 bits or 24 bits resolution)
● Operating temperature -20 °C to +80 °C
● Embedded temperature sensor
● Low current consumption 900 μA Typ
| Parameter | KFOGD020A | Explanation | |
| Power supply parameter | |||
| Supply voltage VDDM | +2.7V~+3.6V | ||
| Supply voltage for interface VDDI | +1.65V~+3.6V | ||
| Product performance | |||
| Scale factor So | 70 LSB/(°/s) ±2% | 16 bits,Ta=+25℃ | |
| 17920 LSB/(°/s) ±2% | 24 bits,Ta=+25℃ | ||
| Scale factor variation over temperature Spt | ±3% | VDDM=3V,Ta=+25℃ reference | |
| Bias ZRL | ±1°/s (0 LSB Typ) | Ta=+25℃ | |
| Bias variation over temperature A ZRLta | ±0.25°/h | -10℃~+50℃,Ta=+25℃ reference | |
| Bias variation over temperature B ZRLtb | ±1°/h | -20℃~+80℃,Ta=+25℃ reference | |
| Bias temperature coefficient ZRLs | 0.0016(°/s)/℃ (Typ) | VDDM = 3v,Average of absolute value,ΔT=1℃ | |
| Rate range I | ±400°/s | ||
| Non-linearity NI | ±0.5%FS | Ta=+25℃ | |
| Cross-axis sensitivity CS | ±5% | Ta=+25℃ | |
| Current consumption Iop1 | 900μA Typ | ||
| Sleep current Iop3 | 3μA Typ | ||
| Noise density Nd | 0.0015 (°/s)/√Hz | @ 10Hz, LPF default setting | |
| Angle random walk N | 0.065 °/√h | ||
| Environment | |||
| Operating temperature TOPR | -20℃～+80℃ | ||
| Storage temperature TSTG | -40℃～+85℃ | ||
Dimensions
Our company is dedicated to providing anti-vibration and attitude control solutions for industrial applications, including but not limited to aerospace, automotive, and defense industries. With our cutting-edge technology and expertise, we ensure that the equipment and machinery can operate smoothly and safely in demanding environments.
We also specialize in motion detection technology for human machine interface (HMI) purposes. Our sensors are designed to accurately detect and track human motion, enabling seamless interaction between humans and machines. This technology has a wide range of uses in various fields, including gaming, healthcare, and security.
In addition, we offer solutions for wearable devices that require motion detection and tracking capabilities. Our devices are small, lightweight, and efficient, making them ideal for integration into various wearable technologies such as fitness trackers, smartwatches, and virtual reality headsets.
We have also developed specialized medical motion detection equipment that can be used for a variety of purposes, such as monitoring patient movement during rehabilitation or supporting mobility research. Our equipment is precise and reliable, making it a valuable tool for medical professionals.
Our anti-vibration and attitude control solutions are not limited to industrial and medical applications. We also provide stabilization solutions for optical, photography, and other platforms. Our technology can help stabilize images and improve image quality for a variety of industries, including film, photography, and broadcasting.
Last but not least, we also produce high-quality inertial measurement instruments. These instruments are critical for measuring the movement and orientation of objects in space and have applications in aviation, navigation, and robotics. We utilize advanced technology and precision manufacturing to ensure that our instruments are accurate, reliable, and efficient.
Our Electronic Gyroscope Sensor is designed to provide precise motion sensing in a variety of applications. Our product technical support and services are dedicated to ensuring that you can integrate and use our gyroscope sensor effectively in your projects.
Technical Support:
- Comprehensive online documentation: Access detailed product specifications, integration guides, and troubleshooting articles to assist you with any technical queries regarding our Electronic Gyroscope Sensor.
Services:
- Email support: Reach out to our dedicated support team for personalized assistance with any technical issues you may encounter.
We are committed to providing you with the support you need to utilize our Electronic Gyroscope Sensor to its fullest potential.
Product Packaging:
The electronic gyroscope sensor will be securely packaged in a cardboard box with appropriate cushioning material to prevent any damage during transit.
Shipping:
Orders will be shipped within 24 hours of purchase via standard shipping. Expedited shipping options are available at an additional cost. Customers will receive a tracking number via email once the order has been shipped.
