| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KXV9721 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Coss-axis Sensitivity CSr: | ±5% | Non-linearity NI: | Non-linearity NI |
|---|---|---|---|
| Angle Random Walk N: | 0.065 °/√h | Scale Factor Variation Over Temperature Spt: | ±3% |
| Bias Temperature Coefficient ZRLs: | 0.0016(°/s)/℃ (Typ) | Bias Variation Over Temperature A ZRLta: | ±0.25°/h |
| Supply Voltage VDDM: | +2.7V~+3.6V | Rate Range: | ±400°/s |
| High Light: | Optional Filtered MEMS gyroscope chip,Digital Quartz MEMS Gyroscope Chip |
||

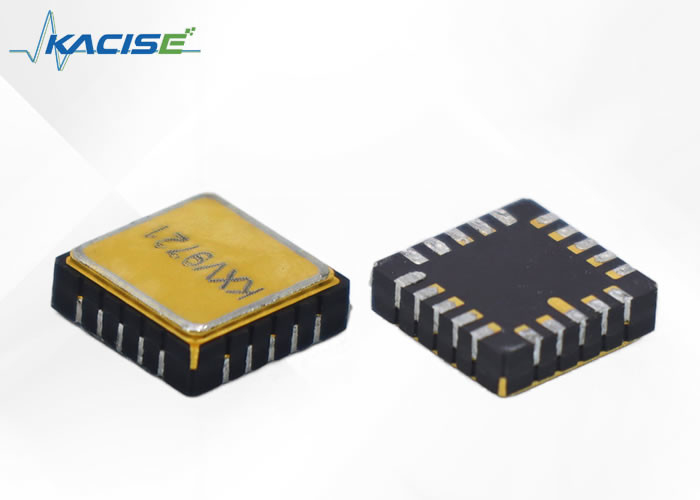

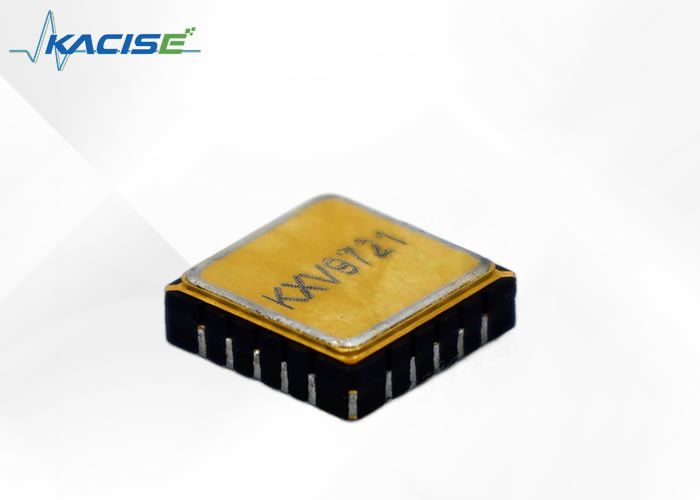

The KXV9721 possesses excellent characteristics such as superior bias output stability and low noise. The digital quartz gyroscope is crafted using quartz MEMS technology and semiconductor processing technology.
Furthermore, these sensors are compatible with multiple digital output interfaces such as SPI and I2C. Independent interface power supply voltage settings facilitate communication with various interfaces. User-selectable low-pass filters and high-pass filters also allow for a vast range of cut-off frequencies. Notably, these sensors are designed with low power consumption in mind, making them suitable for a broad range of applications ranging from wearable devices, consumer electronics to industrial equipment.
● Excellent bias temperature coefficient 0.0016 (°/s)/°C Typ
● Low angle random walk 0.065 °/√h Typ
● Integrated user-selectable digital filter and detuning frequency eliminate filter
● SPI or I2C serial interface
● Angular rate output (16 bits or 24 bits resolution)
● Operating temperature -20 °C to +80 °C
● Embedded temperature sensor
● Low current consumption 900 μA Typ
| Parameter | KFOGD020A | Explanation | |
| Power supply parameter | |||
| Supply voltage VDDM | +2.7V~+3.6V | ||
| Supply voltage for interface VDDI | +1.65V~+3.6V | ||
| Product performance | |||
| Scale factor So | 70 LSB/(°/s) ±2% | 16 bits,Ta=+25℃ | |
| 17920 LSB/(°/s) ±2% | 24 bits,Ta=+25℃ | ||
| Scale factor variation over temperature Spt | ±3% | VDDM=3V,Ta=+25℃ reference | |
| Bias ZRL | ±1°/s (0 LSB Typ) | Ta=+25℃ | |
| Bias variation over temperature A ZRLta | ±0.25°/h | -10℃~+50℃,Ta=+25℃ reference | |
| Bias variation over temperature B ZRLtb | ±1°/h | -20℃~+80℃,Ta=+25℃ reference | |
| Bias temperature coefficient ZRLs | 0.0016(°/s)/℃ (Typ) | VDDM = 3v,Average of absolute value,ΔT=1℃ | |
| Rate range I | ±400°/s | ||
| Non-linearity NI | ±0.5%FS | Ta=+25℃ | |
| Cross-axis sensitivity CS | ±5% | Ta=+25℃ | |
| Current consumption Iop1 | 900μA Typ | ||
| Sleep current Iop3 | 3μA Typ | ||
| Noise density Nd | 0.0015 (°/s)/√Hz | @ 10Hz, LPF default setting | |
| Angle random walk N | 0.065 °/√h | ||
| Environment | |||
| Operating temperature TOPR | -20℃～+80℃ | ||
| Storage temperature TSTG | -40℃～+85℃ | ||
Dimensions
Our company offers a variety of cutting-edge technologies to cater to various industrial applications. We specialize in anti-vibration and attitude control mechanisms that are crucial for maintaining stability in industrial settings. These technologies are designed to improve the accuracy and efficiency of complex machines, allowing for smoother and more reliable operations.
We also provide motion detection sensors, which are ideal for human machine interface systems. These sensors are capable of detecting subtle movements and translating them into commands that can be easily understood by machines. This technology is perfect for applications where hands-free or touchless operation is desirable.
Additionally, we offer solutions for wearable devices, which are increasingly popular in today's age of technology. Our wearable technologies are lightweight, easy to use, and designed to integrate seamlessly into people's everyday lives. They are perfect for tracking fitness, monitoring health, and facilitating communication while on the go.
Our medical motion detection equipment is specifically tailored to meet the needs of the healthcare industry. These devices are designed to detect and monitor the movements of patients, providing valuable insights into their physical condition. They are useful for a variety of medical applications, ranging from rehabilitation to surgical procedures.
Our cutting-edge technologies are also ideal for optical, photography, and other platforms that require stability and precision. Our motion control mechanisms ensure that images and videos are captured with crystal clear clarity, even in situations where there is a lot of movement or other environmental factors that might otherwise interfere with image quality. Our inertial measurement instruments provide reliable data for a variety of fields, from aerospace engineering to robotics.
Welcome to our Technical Support and Services for the Gyroscope Sensor. Our dedicated team is here to assist you with any technical issues or inquiries you may have regarding the use, installation, or maintenance of your gyroscope sensor. We are committed to providing you with the best possible support to ensure your product functions optimally.
Our support includes detailed product documentation, frequently asked questions (FAQs), and troubleshooting guides designed to help you resolve common issues quickly. For more complex or specific concerns, our technical support team is ready to provide personalized assistance.
If you require further assistance, please refer to the 'Contact Us' section of our website (contact information excluded as per request) where you can find additional resources and support channels to get in touch with our professional technical support team.
Thank you for choosing our Electronic Gyroscope Sensor. We look forward to serving you and ensuring the success of your project
he Electronic Gyroscope Sensor is housed in a robust, anti-static packaging to ensure the device remains secure and undamaged during transit. The interior of the packaging is lined with a cushioning material that absorbs shocks and vibrations, providing additional protection for the sensitive components of the sensor.
Prior to shipment, each package is sealed and subjected to a thorough inspection to guarantee that the sensor is securely enclosed. The exterior of the packaging is clearly labeled with handling instructions and the package contents to facilitate careful handling and to inform the recipient about the enclosed device.
For shipping, the packaged Electronic Gyroscope Sensor is placed in a larger, durable cardboard box designed to withstand the rigors of transport. This box is further secured with packing tape and, if necessary, additional cushioning materials are added to prevent movement within the box during shipment.
Each shipment includes a detailed packing slip with product information and a unique serial number for inventory tracking and quality control purposes. The package is then dispatched through a reliable courier service with options for tracking and insurance to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and in pristine condition.
