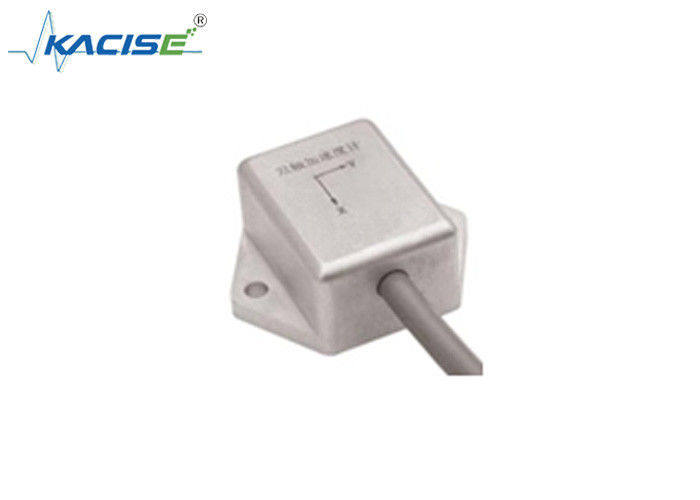

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability

  • 0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability
  • 0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability
  • 0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability
  • 0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability
0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: K-2JSJ , K-JSJ200
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Type: K-2JSJ,K-2JSJ-200 Input Voltage: 5±0.25 VDC
Input Current: ≤2mA Output Mode: 0.5~4.5 V
Axial Direction: X、Y Range: ±2g
Bandwidth: ≤ 50 Hz Sensitivity: 1000±30 MV / G
Resolution: 0.005 G Nonlinear: ≤ 0.5% Fs
High Light:

linear acceleration sensor

,

triaxial acceleration sensor

0.5~4.5 V voltage output Biaxial Accelerometer Sensor Module



1. Product Description



An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of  analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.



Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability 0









2.Parameter



Type K-2JSJ K-2JSJ-200
Electric character
Input voltage

5±0.25 VDC

Input current ≤2mA
Output Mode 0.5~4.5 V
Performance index
Axial direction X,Y
Range ±2g
Bandwidth ≤ 50 Hz

Sensitivity

1000±30 mV / g
Resolution (°/s) 0.005 g 0.001 g
Nonlinear (%FS) ≤ 0.5% Fs
Bias 2.5±0.1 V
Start-up time (ms) ≤1 s
Environmental characteristics
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Resistant to shock 2000g
Physical Characteristics
Weight (g) 20g

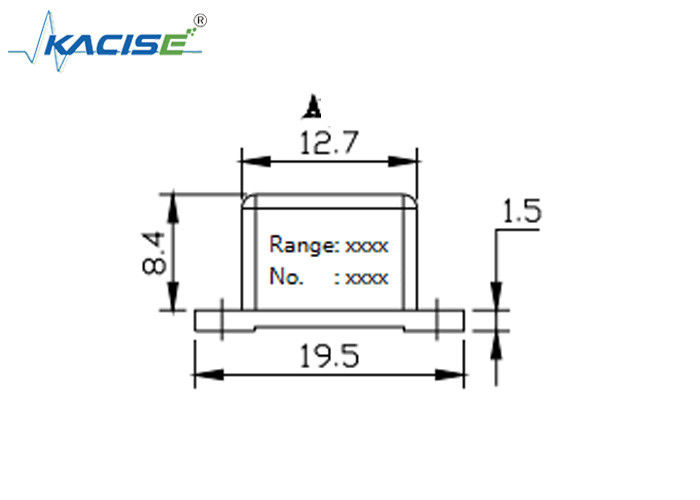

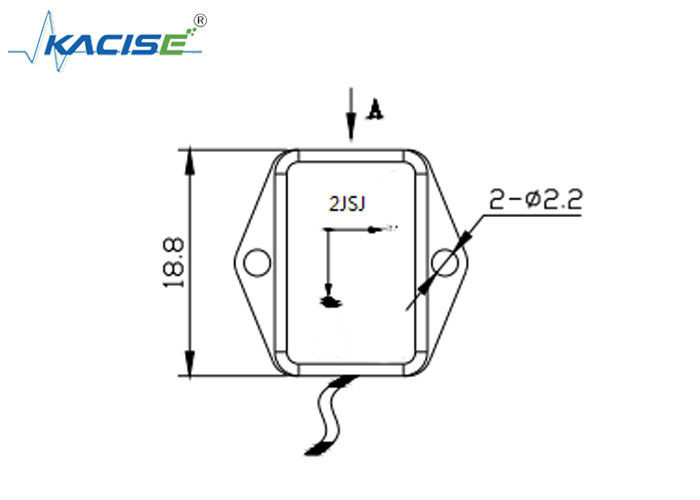

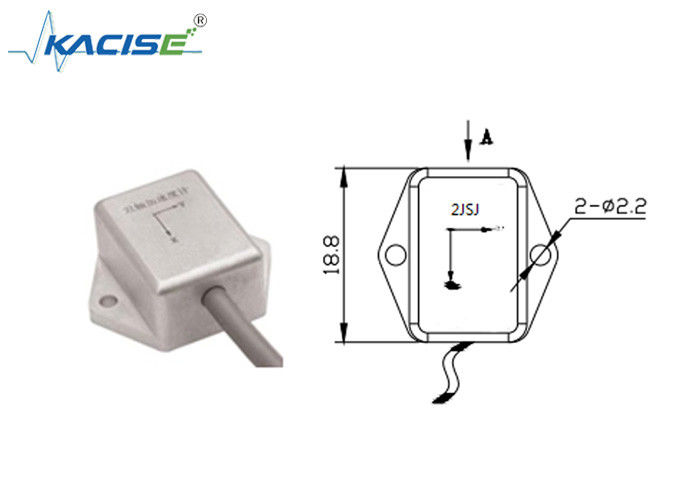

Dimensions 18.8×12.7×8.4 mm



0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability 1



3.Feature



  • Analog voltage output

  • Small size, light weight

  • Wide measuring range

  • impact resistance, vibration performance





4.Application Field



  • Aircraft Stability control

  • seismic detection
