Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: K-JSJ-400
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Type: K-JSJ-400 Input Voltage: 10±0.1 VDC
Input Current: ≤10mA Output Mode: ±1 V
Range: ±2000 G Bandwidth: ≤ 1500 Hz
Sensitivity: ≤ 5000 Hz Axial Direction: Z
Temperature: -40℃~+70℃ Storage Temperature: -40℃~+150℃
High Light:

triaxial acceleration sensor

,

accelerometer speed sensor

High Reliability High g value and Bandwidth Uniaxial Accelerometer Sensor Module



1. Product Description



An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of  analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.



Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.

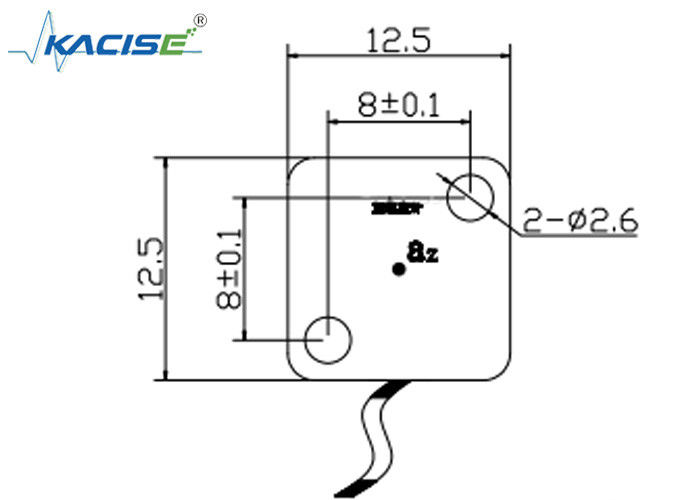

Automobi Uniaxial Accelerometer Sensor Module High G Value / Bandwidth 0









2.Parameter



Type K-JSJ-400
Electric character
Input voltage 10±0.1 VDC
Input current ≤10mA
Output Mode ±1 V
Performance index
Axial direction Z
Range ±2000 g
Bandwidth ≤ 5000 Hz



Sensitivity

100±30 mV / g
Resolution (°/s) ≤ 0.002 g
Nonlinear (%FS) ≤ 1% Fs
Bias ±0.2 V
Start-up time (ms) ≤1 s
Environmental characteristics
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Resistant to shock 10000g
Physical Characteristics
Weight (g) 45g
Dimensions 12.5×12.5×9.5 mm

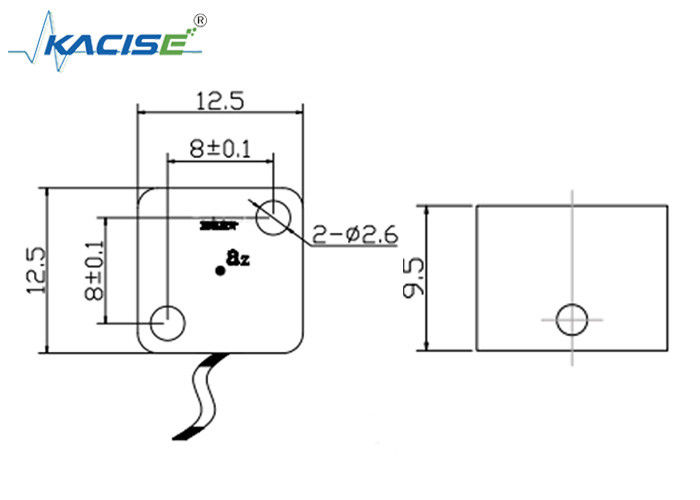

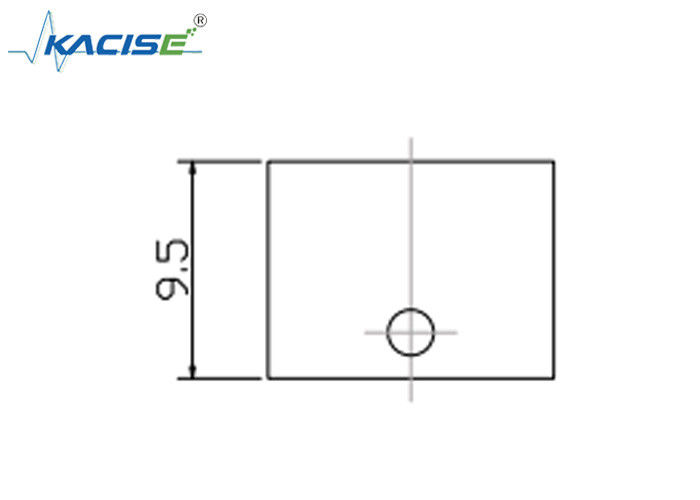

Automobi Uniaxial Accelerometer Sensor Module High G Value / Bandwidth 1Automobi Uniaxial Accelerometer Sensor Module High G Value / Bandwidth 2



3.Feature



  • Analog voltage output

  • High g value and Bandwidth

  • Small size, light weight

  • piezoelectric accelerometer

  • impact resistance, vibration performance



4.Application Field



  • Measure the overload value g

  • Linear acceleration measurement
