Name: Dwyer 1823-10 Low Differential Pressure Switch 2-10 in WC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 1823-10
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer 1823-10 Low Differential Pressure Switch 2-10 in WC

Dwyer 1823-10 pressure switch

low differential pressure sensor

2-10 in WC pressure switch

Brand Name:

Dwyer

Certification:

Model Number:

1823-10

Request A Quote

Product Details

Brand Name:

Dwyer

Model:

1823-10

Type:

Differential Pressure Switch

Operating Range:

2.0 To 10" W.c.

Temperature Limits:

-34 To 82.2°C

Repeatability:

±2%

Highlight:

Dwyer 1823-10 pressure switch

low differential pressure sensor

2-10 in WC pressure switch

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

Dwyer 1823-10 Low Differential Pressure Switch Manual

Product Overview

The Dwyer 1823-10 Low Differential Pressure Switch is a compact, high-performance device designed for monitoring and controlling low differential pressure in industrial applications. With 2% repeatability, it delivers reliable performance for most non-critical pressure control scenarios, featuring an operating range of 2.0 to 10" w.c. (water column). Its user-friendly design simplifies installation, adjustment, and maintenance, making it suitable for process applications and mechanical equipment control.

Technical Specifications

Attribute	Value
Brand Name	Dwyer
Model	1823-10
Type	Differential Pressure Switch
Operating Range	2.0 To 10" W.c.
Temperature Limits	-34 To 82.2°C
Repeatability	±2%

Product Features

Compact Design: Space-saving construction allows easy integration into tight industrial environments, ideal for applications with limited installation space.
High Repeatability: 2% repeatability ensures consistent performance, reducing false triggers and ensuring reliable pressure control.
Easy Adjustment: Setpoint adjustment is located inside the mounting stud, enabling access from the opposite side of a wall or panel after installation.
Versatile Mounting: Compatible with both panel and wall mounting, offering flexibility to suit different installation scenarios.

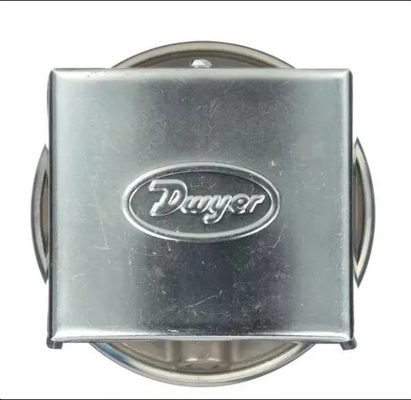

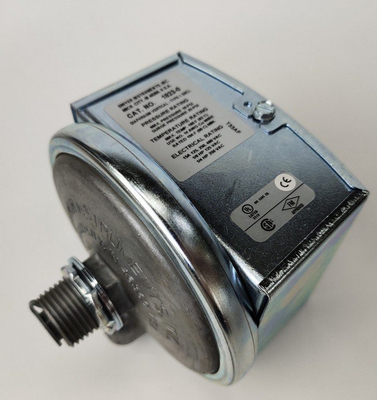

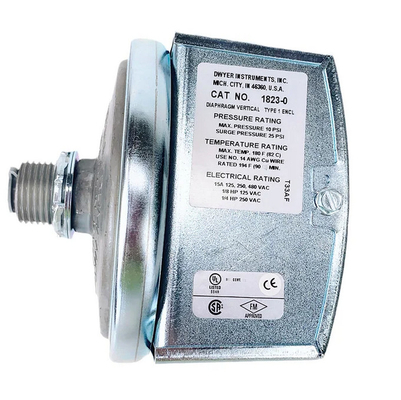

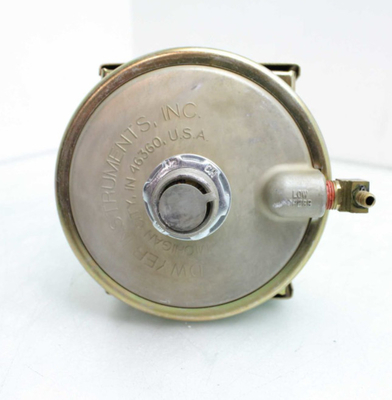

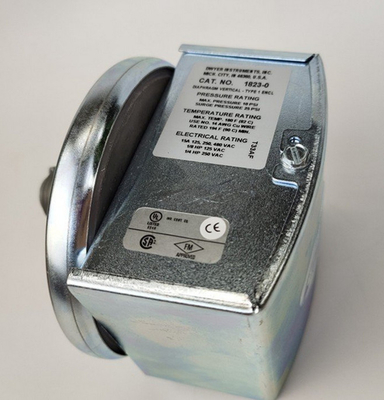

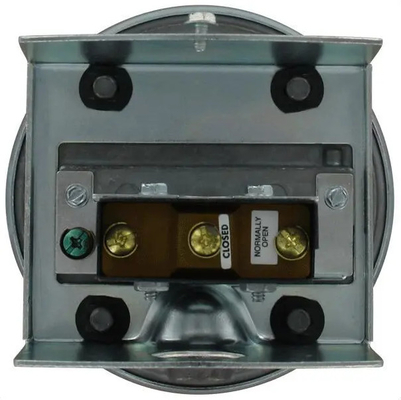

Product Images
