Dwyer A3000-250PA Pressure Switch / Gauge

A3000-250PA Pressure Switch Gauge

Dwyer A3000-250PA Pressure Switch

Brand Name:

Dwyer

Model Number:

A3000-250PA

Request A Quote

Product Details

Service:

Air And Non-combustible, Compatible Gases

Accuracy:

±2% Of FS At 70°F

Pressure Limits:

-20" Hg. To 25 Psig

Temperature Limits:

20 To 120°F

Process Connections:

1/8" Female NPT

Size:

4" (101.6 Mm) Dial Face, 5" (127 Mm) O.D. X 8-1/4" (209.55 Mm)

Highlight:

A3000-250PA Pressure Switch Gauge

Dwyer A3000-250PA Pressure Switch

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

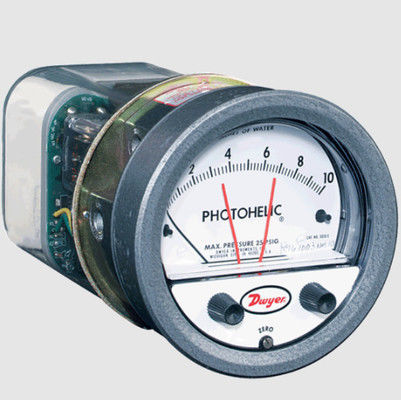

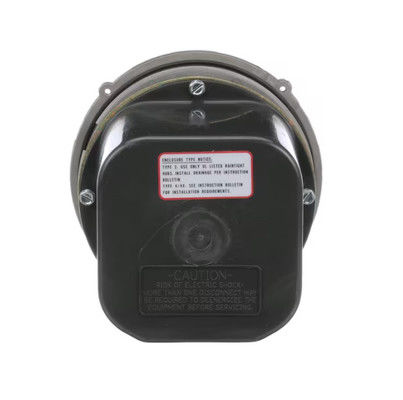

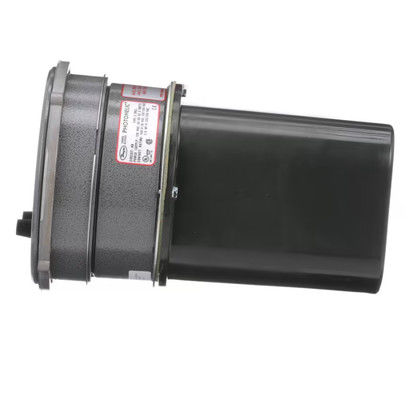

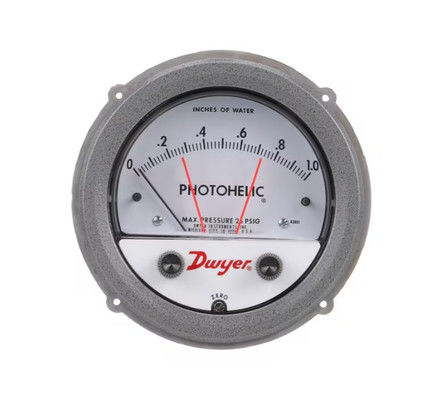

Dwyer A3000-250PA Pressure Switch / Gauge

Product Overview

The Dwyer A3000-250PA Pressure Switch/Gauge is a versatile 3-in-1 device designed for precise pressure monitoring and control in low-pressure applications. Combining an indicating gauge with both low-limit and high-limit control functions, it's ideal for critical environments requiring accurate pressure management.

Technical Specifications

Attribute	Value
Service	Air And Non-combustible, Compatible Gases
Accuracy	±2% Of FS At 70°F
Pressure Limits	-20" Hg. To 25 Psig
Temperature Limits	20 To 120°F
Process Connections	1/8" Female NPT
Size	4" (101.6 Mm) Dial Face, 5" (127 Mm) O.D. X 8-1/4" (209.55 Mm)

Key Features

3-in-1 Functional Design: Combines pressure indication with low/high limit control switches
Precision Measurement: 0-250 Pa range for monitoring subtle pressure variations
Industrial Applications: Ideal for HVAC systems, clean rooms, and fume exhaust systems
User-Friendly Operation: Clear gauge display with adjustable limit switches
Reliable Construction: Durable design for low-pressure applications with compact form factor

Applications

Air Conditioning Systems

Maintains optimal pressure for efficient HVAC performance

Clean Rooms

Ensures positive pressure to prevent contamination in critical environments

Fume Exhaust Systems

Monitors exhaust pressure to maintain safe ventilation

Model Information

A3000-250PA | Pressure switch/gage, range 0-250 Pa.
