Name: Dwyer DM-2000 Differential Pressure Transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-2002-LCD
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer DM-2000 Differential Pressure Transmitter

Brand Name:

Dwyer

Model Number:

DM-2002-LCD

Request A Quote

Dwyer DM-2000 Differential Pressure Transmitter

Product Details

Accuracy:

±1%

Warranty:

1 Year

Model Number:

DM-2000

Temperature Effect:

20 To 120°F (-6.67 To 48.9°C)

Certification:

CCC,ISO

Output:

4 To 20 MA

Highlight:

Dwyer DM-2000 Differential Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

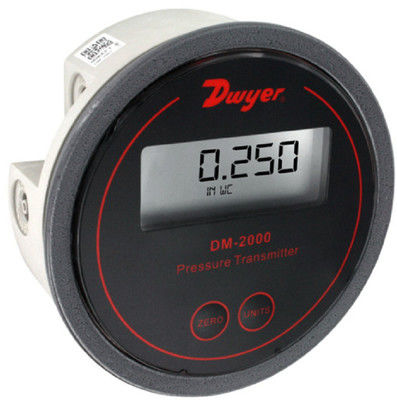

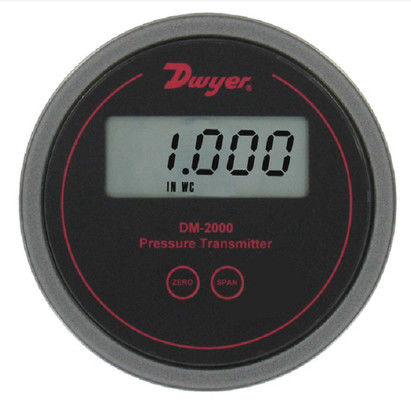

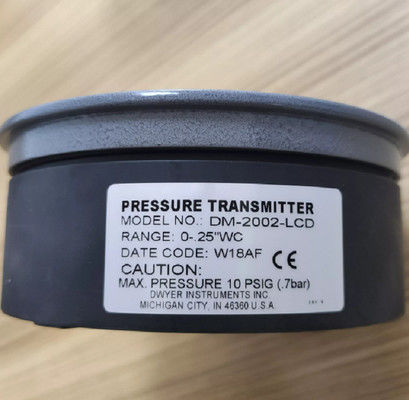

Dwyer DM-2000 Differential Pressure Transmitter

Attribute	Value
Accuracy	±1%
Warranty	1 Year
Model Number	DM-2000
Temperature Effect	20 To 120°F (-6.67 To 48.9°C)
Certification	CCC, ISO
Output	4 To 20 MA

Product Introduction

The Dwyer DM-2000 Differential Pressure Transmitter is engineered to measure air and compatible gas pressures, delivering a 4-20 mA output for industrial control systems. Designed with a housing matching the standard Magnehelic gauge mounting dimensions, it enables seamless field upgrades from analog to digital monitoring.

The FRP laminated film casing features integrated pressure interfaces for quick installation, while digital push-button calibration (zero and span) replaces traditional potentiometers for precision. A 3.5-bit LCD display offers real-time readings in 4-6 engineering units, making it ideal for HVAC, filter monitoring, and process control applications.

Key Features

Precision Measurement & Output:

4-20 mA current loop output for reliable integration with PLCs and control systems
Factory-calibrated across multiple ranges for immediate use

User-Friendly Interface:

3.5-bit LCD display with selectable engineering units (e.g., Pa, in w.c., psi) via single button
Digital push-button zero/span adjustment eliminates potentiometer drift

Rugged & Compatible Design:

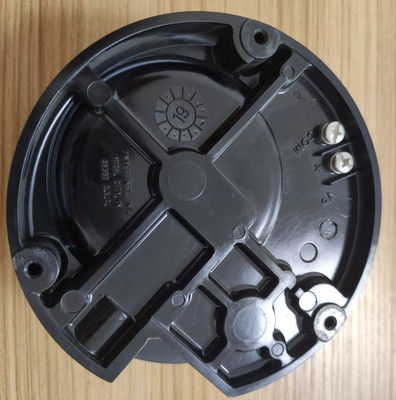

FRP laminated film housing with integrated pressure ports for quick connections
Mounting hole pattern matches Magnehelic gauges for drop-in replacement

Environmental Stability:

Operational temperature: -6.67 to 48.9°C (20 to 120°F) with minimal temperature effect
Tamper-proof button configuration prevents accidental setting changes

Industrial Compliance:

CCC and ISO certifications for safety and quality assurance
Rapid response for immediate signal transmission of pressure changes

Additional Specifications

Warranty	1 year
Customized support	OEM, ODM
Place of Origin	America
Brand Name	Dwyer
Electrical connection	Screw-type terminal block
