Name: Dwyer DM-2000 Series Differential Pressure Transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-2012-LCD
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer DM-2000 Series Differential Pressure Transmitter

Dwyer DM-2000 Series Transmitter

Dwyer DM-2000 Pressure Transmitter

DM-2000 Differential Pressure Transmitter

Brand Name:

Dwyer

Certification:

Model Number:

DM-2012-LCD

Request A Quote

Dwyer DM-2000 Series Differential Pressure Transmitter

Product Details

Warranty:

1 Year

Customized Support:

OEM, ODM

Certification:

IECEE, CCC, ISO

Accuracy:

±1% F.S. At 70°F.

Connection Location:

Screw-type Terminal Bloc

Output Signal:

4 To 20 MA.

Highlight:

Dwyer DM-2000 Series Transmitter

Dwyer DM-2000 Pressure Transmitter

DM-2000 Differential Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

Dwyer DM-2000 Series Differential Pressure Transmitter

Warranty

1 Year

Customized Support

OEM, ODM

Certification

IECEE, CCC, ISO

Accuracy

±1% F.S. At 70°F.

Connection Location

Screw-type Terminal Bloc

Output Signal

4 To 20 MA.

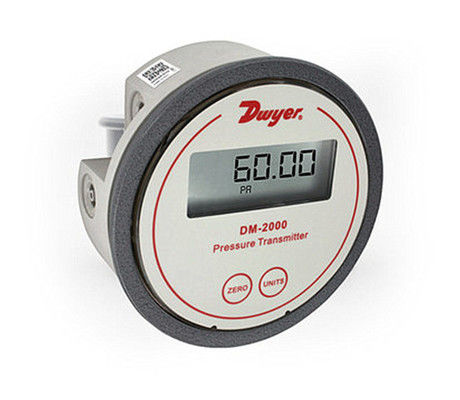

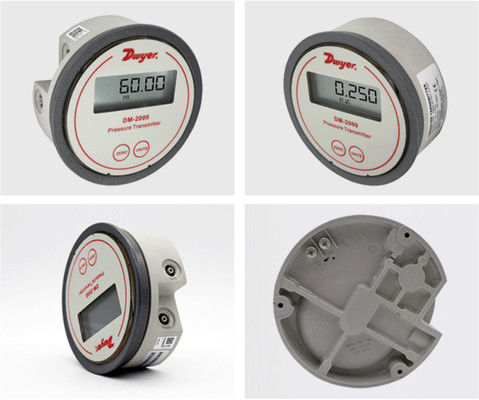

The Dwyer DM-2000 Series Differential Pressure Transmitter is engineered to monitor pressure for air and compatible gases, delivering a standard 4-20 mA output signal for seamless integration with industrial control systems.

Its housing is precision-designed to fit the same diameter cutout as the standard Magnehelic® gauge, enabling effortless replacement and system upgrades. Factory-calibrated across a wide range of pressure spans--including models with optional 3.5-digit LCD displays--the transmitter combines quick response times with user-friendly digital push-button zero and span adjustments, eliminating the need for traditional potentiometer calibrations.

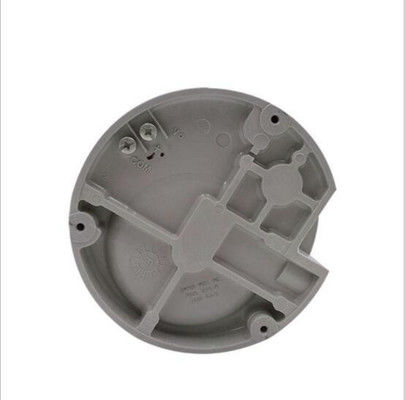

The glass-filled plastic molded housing incorporates inherent pressure connections for rapid installation, while field-selectable engineering units (4-6 options, depending on range) enhance versatility for diverse applications.

Product Features

Accuracy & Stability: ±1% FS accuracy at 70°F (21°C); long-term stability of ±1% FS/year. Thermal effect: ±0.055% FS/°F (0.099% FS/°C) for reliable performance across temperatures.
Output & Power: Standard 4-20 mA output signal compatible with 10-35 VDC (2-wire system). Loop resistance: up to 1250 Ω; current consumption: 38 mA max for efficient operation.
Display & Units: Optional 3.5-digit LCD display (0.7" height) for real-time pressure visualization. Field-selectable engineering units (e.g., in w.c., Pa, mbar, kPa, psi) based on model range.
Construction & Installation: Glass-filled plastic molded housing with integrated pressure connections for quick setup. Process connections: 1/8" ID tubing; vertical mounting orientation matches legacy systems. Compact design: weighs 4.8 oz (136 g) for space-efficient installations.
Environmental Specs: Temperature range: 20-120°F (-6.67-48.9°C); pressure limit: 10 psig (0.69 bar). Suitable for air and non-combustible gases; NIST calibration available via product configurator.
Calibration & Customization: Digital push-button zero and span adjustments for field calibration without tools. Diverse factory-calibrated ranges (e.g., 0.1" w.c. to 5" w.c.) and bi-directional models (e.g., ±0.25" w.c.) for specialized needs.
