Name: Dwyer Magnesense MS2 Differential Pressure Transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: MS2-W021
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer Magnesense MS2 Differential Pressure Transmitter

Dwyer MS2 Differential Pressure Transmitter

MS2 Differential Pressure Transmitter

Brand Name:

Dwyer

Certification:

Model Number:

MS2-W021

Request A Quote

Dwyer Magnesense MS2 Differential Pressure Transmitter

Product Details

Warranty:

1 Year

Customized Support:

OEM, ODM

Application:

Industries

Current Consumption:

40 MA Max.

Electrical Entry:

1/2" NPS Thread

Stability:

±1% / Year FSO

Highlight:

Dwyer MS2 Differential Pressure Transmitter

MS2 Differential Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

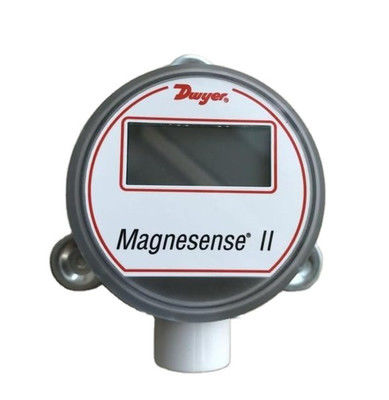

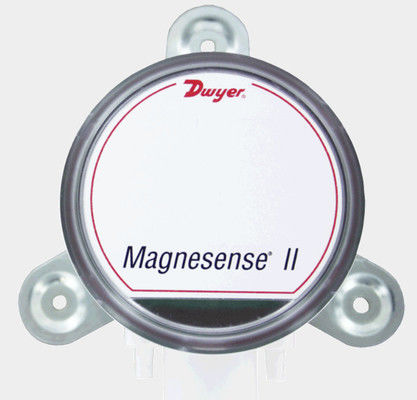

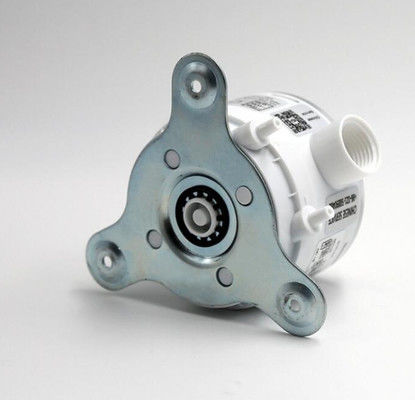

Dwyer Magnesense MS2 Differential Pressure Transmitter

Attribute	Value
Warranty	1 Year
Customized Support	OEM, ODM
Application	Industries
Current Consumption	40 MA Max.
Electrical Entry	1/2" NPS Thread
Stability	±1% / Year FSO

Product Introduction

The Dwyer Magnesense MS2 Differential Pressure Transmitter elevates industrial pressure monitoring with advanced Hall Effect sensing technology and enhanced functionality. Building on the legacy of the original MS Series, this second-generation transmitter streamlines installation with field-selectable ranges, dual output signals, and optional BACnet/MODBUS connectivity—ideal for smart building automation and process control systems.

Product Features

Enhanced Range Flexibility: 4 selectable pressure ranges + 4 bidirectional ranges, configurable via dip switches.
Dual Output Signals: Simultaneous 4-20 mA (2-wire) and 0-5/10 VDC (3-wire) outputs for controller integration and local testing.
Digital Connectivity: Optional BACnet or MODBUS protocols support daisy-chaining (≤32 nodes per segment).
Square Root Functionality: Converts pressure to linear velocity/flow for Pitot tube or orifice plate applications.

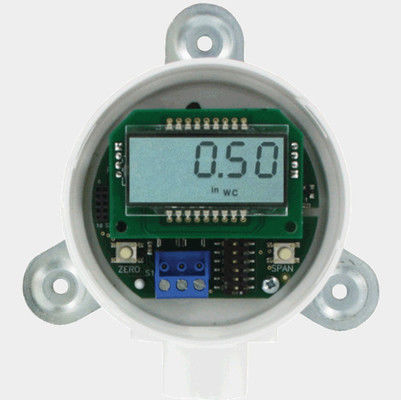

Field-Upgradable Display: 5-digit LCD with English/metric unit selection via pluggable or remote tools.

Technical Specifications

Model	MS2 (Series MS2)
Pressure Range	Selectable: 0.1-25 in. WC (25 Pa-5 kPa); bidirectional ranges available
Accuracy	±1% FS (0.15-25 in. WC); ±2% FS (0.1 in. WC and bidirectional ranges)
Media	Air and non-combustible gases
Power Supply	10-35 VDC (2-wire); 17-36 VDC / 21.6-33 VAC (3-wire)
Temperature Range	-18-66°C (-4-150°F)
Pressure Limits	1 psi (operating); 10 psi (burst)
Communication Protocols	BACnet®, MODBUS® (optional)
Output Signals	4-20 mA, 0-5 VDC, 0-10 VDC (invertible)
Response Time	Adjustable: 0.5-15 sec. (95% response in 1.5-45 sec.)
Enclosure Rating	IP66 (dust-tight and water-resistant)
