Name: Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 645-4
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)

Wet/Wet Differential Pressure Transmitter

645 Wet/Wet Differential Pressure Transmitter

Dwyer Wet/Wet Differential Pressure Transmitter

Brand Name:

Dwyer

Model Number:

645-4

Request A Quote

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)

Product Details

Service:

Compatible Gases Or Liquids On Both Pressure And Reference Sides.

Wetted Materials:

17-4 PH Stainless Steel, 300 Series Stainless Steel, Fluoroelastomer And Silicone O-rings And Bleed Screw Seals.

Accuracy:

±0.25% FS (RSS)

Output Signal:

4 To 20 MA, 2-wire

Loop Resistance:

0 To 1000Ω.

Weight:

0.4g

Highlight:

Wet/Wet Differential Pressure Transmitter

645 Wet/Wet Differential Pressure Transmitter

Dwyer Wet/Wet Differential Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)

Product Specifications

Attribute	Value
Service	Compatible Gases Or Liquids On Both Pressure And Reference Sides
Wetted Materials	17-4 PH Stainless Steel, 300 Series Stainless Steel, Fluoroelastomer And Silicone O-rings And Bleed Screw Seals
Accuracy	±0.25% FS (RSS)
Output Signal	4 To 20 MA, 2-wire
Loop Resistance	0 To 1000Ω
Weight	0.4g

Product Overview

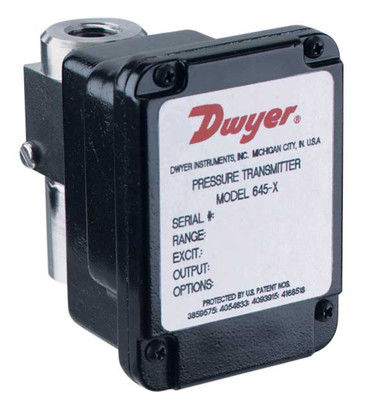

The Dwyer Series 645 Wet/Wet Differential Pressure Transmitter is a high-precision instrument designed for measuring differential pressure in compatible gases and liquids. Featuring a quick-response capacitance sensor, it delivers a 4-20 mA output proportional to pressure changes with ±0.25% accuracy.

The 2-wire design simplifies installation, while bleed ports in the optional 3-valve manifold allow air elimination for reliable readings. Ideal for process control, filter monitoring, HVAC systems, and liquid level measurement, this transmitter combines rugged performance with ease of maintenance for industrial applications.

Key Features

High-Accuracy Measurement: ±0.25% full-scale accuracy ensures precise differential pressure monitoring with fast response capacitance sensor
2-Wire Design: Simplifies wiring and reduces installation costs in industrial setups
Wet/Wet Compatibility: Suitable for both gas and liquid media on pressure and reference ports
Versatile Applications: Process control, filter monitoring, refrigeration equipment, pump control, HVAC, and liquid level measurement

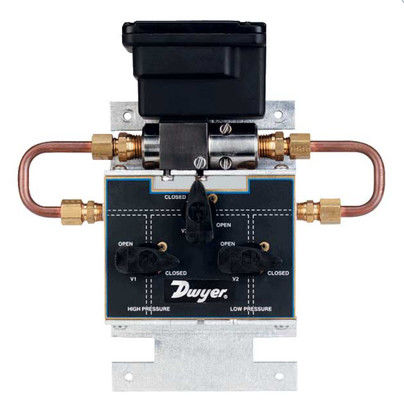

Optional 3-Valve Manifold: Enables easy installation and maintenance with bleed ports for air elimination
Reliable Performance: Robust construction with stainless steel components for long-term industrial use

Available Models

Model	Description
645-0	Wet/wet differential pressure transmitter, range 0-1 psid
645-0-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-1 psid
645-1	Wet/wet differential pressure transmitter, range 0-2 psid
645-1-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-2 psid
645-10	Wet/wet differential pressure transmitter, range ±0.5 psid
645-10-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±0.5 psid
645-11	Wet/wet differential pressure transmitter, range ±1 psid
645-11-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±1 psid
645-12	Wet/wet differential pressure transmitter, range ±2.5 psid
645-12-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±2.5 psid
645-13	Wet/wet differential pressure transmitter, range ±5 psid
645-13-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±5 psid
645-14	Wet/wet differential pressure transmitter, range ±10 psid
645-14-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±10 psid
645-15	Wet/wet differential pressure transmitter, range ±25 psid
645-15-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±25 psid
645-16	Wet/wet differential pressure transmitter, range ±50 psid
645-16-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±50 psid
645-2	Wet/wet differential pressure transmitter, range 0-5 psid
645-2-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-5 psid
645-3	Wet/wet differential pressure transmitter, range 0-10 psid
645-3-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-10 psid
645-4	Wet/wet differential pressure transmitter, range 0-25 psid
645-4-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-25 psid
645-5	Wet/wet differential pressure transmitter, range 0-50 psid
645-5-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-50 psid
645-6	Wet/wet differential pressure transmitter, range 0-100 psid
645-6-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-100 psid
