|Place of Origin:||Shaanxi, China (Mainland)|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||carton or customers requests available|
|Delivery Time:||Shipped in 7 days after payment|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||3000 Piece/Pieces per Month|
|Temperature Rating:||-50~350℃||Pressure Rating:||0~4.0MPa|
|Accuracy Class:||0.10~0.20%||Product Name:||Coriolis Mass Flowmeter|
coriolis flow meter,
coriolis type mass flow meter
Wholesale High Quality High Accuracy High Pressure Application Coriolis Mass Flow Meter

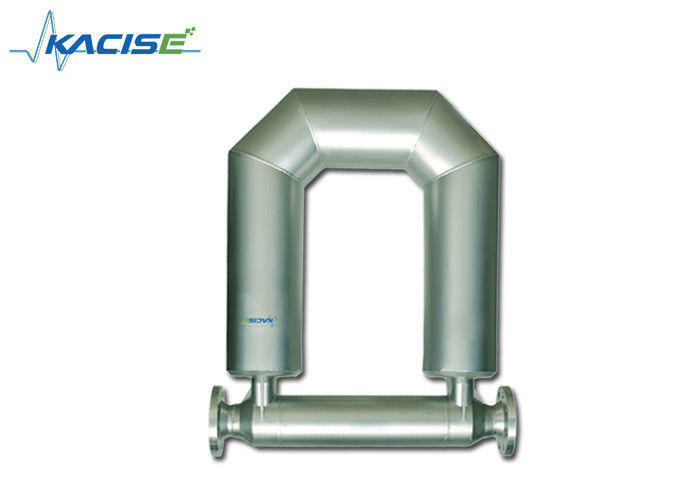

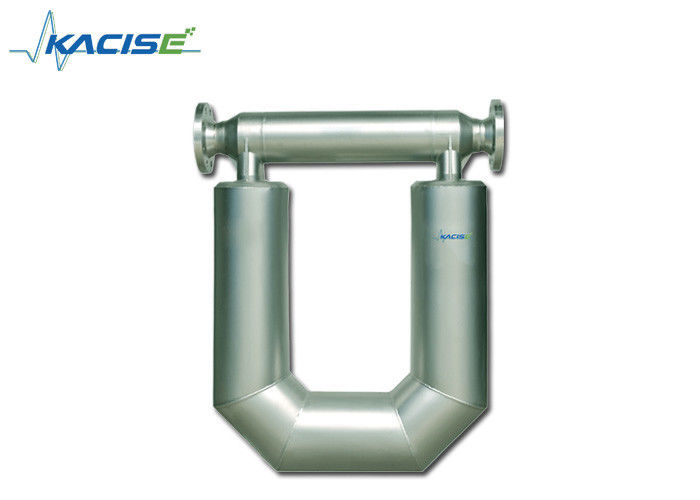

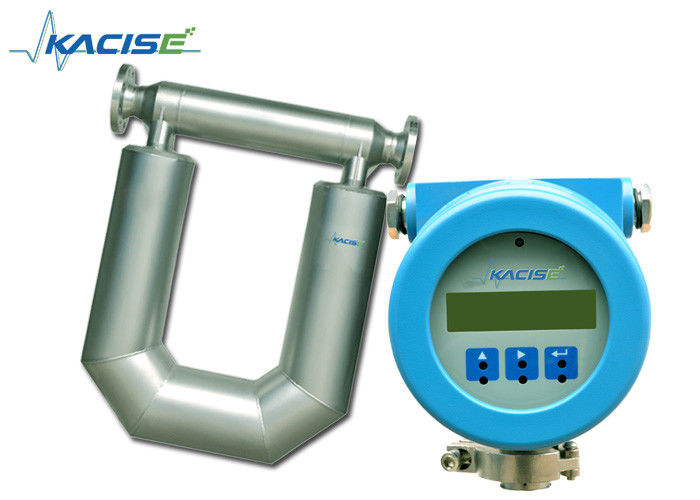

KMF-Series Coriolis Mass Flow Meter directly measures the "Mass" of the medium with high accuracy based on the Coriolis Principle (Coriolis Force). The accuracy would not be affected by any factors like the temperature, pressure, density, viscosity, etc. And the compensation calculation is not required. The Coriolis Mass Flow Meter consists of two parts: the Sensor and the Transmitter. The Corioils Mass Flow Meter is designed and produced based on the national standard of explosion- proof standards. The Explosion- proof standard is Ex d ib ⅡC T5 Gb.
Principles of Measurement
The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.
A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.
|Module||DN||Measurement Scope||Work Pressure (MPa)||Connection Type(mm)|
|KMF-1-1AB||1.5||0～4(kg/h)||0～4||Weld Joints Φ6×1.5|
|KMF-1-1A||3||0～40(kg/h)||0～4||Weld Joints Φ6×1.5|
|KMF-1-1B||6||0～100(kg/h)||0～4||Weld Joints Φ10×2|
|KMF-1-2A||8||0～200(kg/h)||0～4||Weld Joints Φ10×1|
The KMF Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.
Oil & Gas
Food & Beverage
Metals and Mining
Pulp & Paper
Water & Wastewater
² Reduced fill time with higher flow rate capacity
² Compact design with no moving parts, no special mounting and no flow conditioning required
² Fast delivery and global support
1. Q: May I put my own logo on the product?
A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
2. Q: How about the quality control?
A: All products will be tested for 3 times before packed.
3. Q: May I release trial order, 1 pc for example?
A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
4. Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our food grade pipe coriolis mass flow meter work perfectly at your end.
7 working days quick delivery. / Suggested Express company: DHL.
