Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: kacise
Certification: ce
Model Number: GXPS460
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Pressure Range: 0~1….100mH2O/–1bar~0~100bar/ 0~980Kpa Operating Temperature: –20℃~70℃
Accuracy: ±0.5%F.S Output Signal: 4~20mA
Medium: All Kinds Of Sea Water Power Supply: :10~36Vdc
High Light:

piezoresistive pressure transmitter

,

explosion proof pressure transmitter

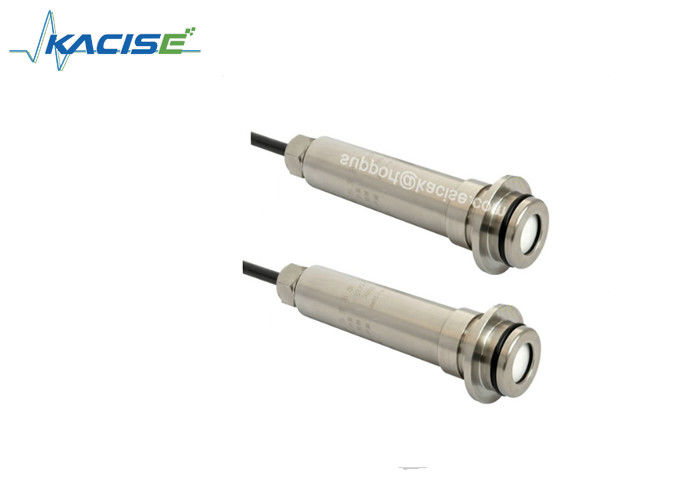

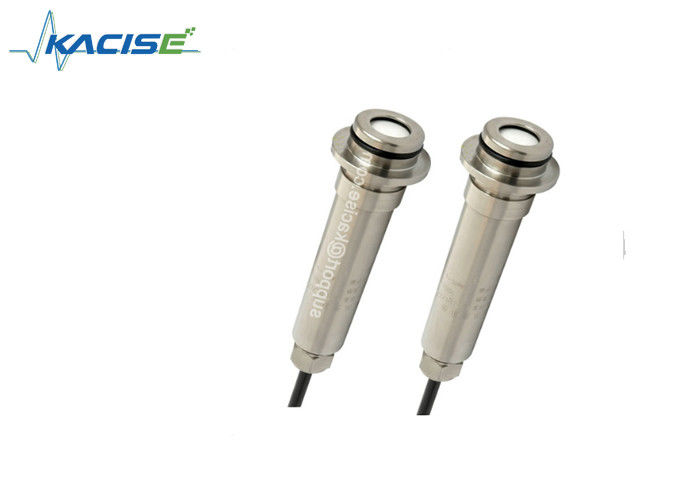

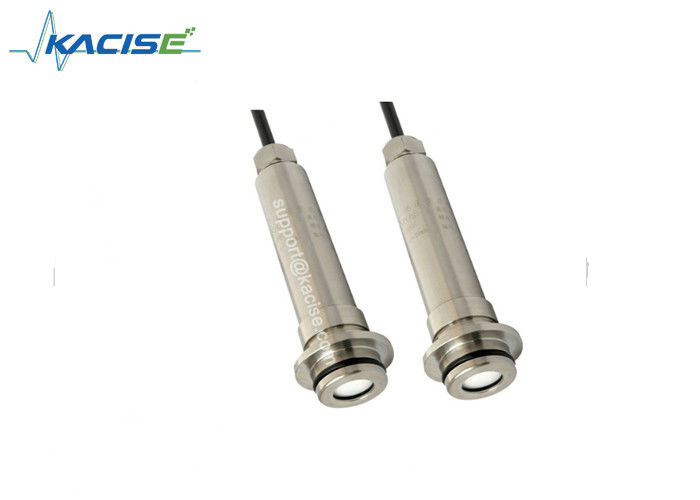

GXPS460 Marine Titanium Alloy Corrosive Media Higher Temperature Field Liquid Level Transmitter





Application

  • Sea water measurement
  • Draft marks detection
  • With corrosive media
  • Thermal boiler
  • Chemical experiment
  • Higher temperature field
  • Harbor wharf depth
  • Sea bridge altitude measurement


Feature

  • Accuracy: ±0.25, ±0.5%F.S
  • The whole temperature range to ensure accuracy
  • Titanium alloy oil filled core body
  • Heat resistant, resistant to strong acid
  • Antimicrobial mucous corrosion
  • Various of measuring range and signal output
  • Non polarity two wire system current output
  • Digital calibration



Introduction



GXPS460 series level transmitter is a highly reliable, high stability, high accuracy, the whole temperature digitized compensation level transmitter is designed for all kinds of sea water measurement design.

Oil-filled core and shell of the products used in all the titanium alloy structure, long-term safe use in -20 ℃ ~ 70 ℃ seawater, the latest digitized compensation to ensure the accuracy of the temperature region does not decrease or loss of, computer interface to its zero and full scale calibration can also be externally programmed adjustment of zero and span.

Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.



Electronic interface and signals definition



High Temperature Field Precision Pressure Sensor Sea Water Level Transmitter 0

High Temperature Field Precision Pressure Sensor Sea Water Level Transmitter 1





Parameter



Pressure range: 0~1….100mH2O/–1bar~0~100bar/ 0~980Kpa
Over pressure safe: 2times span of nominal value Secondary Containment: 4times span of nominal value
Operating temperature: –20℃~70℃ Compensated temperature: –20℃~70℃
Accuracy: ±0.5%F.S Stability: 0.25%F.S/year
Output signal: 4~20mA Power supply: 10~36Vdc
Load voltage: (U-10)/0.02(Ω) Minimum isolation between case and terminations: >100M Ω@50V
Medium: all kinds of sea water Protection: IP68
Pressure type: G, A Certificate: ATEX
EMI/EMC: EN50081-1/-2; EN50082-2
