Product Description

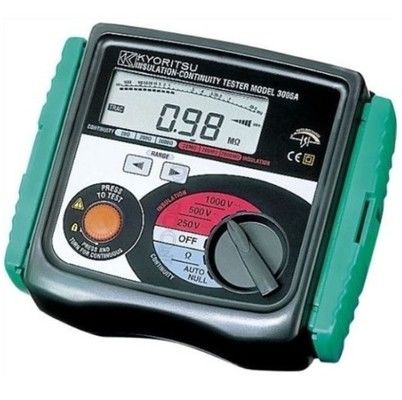

Kyoritsu 3005A Digital Insulation / Continuity Tester

Key Features

500V/250V/1000V Digital Insulation Continuity Testers
Professional-grade precision testing
Multiple test voltage options
Comprehensive safety features
Durable, compliant design

Product Overview

The Kyoritsu 3005A is a professional-grade digital tester designed for precise insulation resistance and continuity testing in electrical systems. Equipped with selectable test voltages (250V, 500V, 1000V DC), it measures insulation resistance up to 2000MΩ and ensures reliable continuity checks with a 200mA test current.

Precision Insulation Testing

Test Voltages: 250V, 500V, 1000V DC for versatile system evaluations
Measuring Ranges: 20MΩ (250V), 200MΩ (500V), 2000MΩ (1000V) with up to ±1.5% accuracy
Open-Circuit Voltage: Maintains rated test voltage 20% (no negative deviation) for consistent results

Reliable Continuity Testing

200mA Test Current: Meets IEC 61557 standards for robust continuity detection
Auto-Null Function: Subtracts test lead resistance (up to 10Ω) for true resistance readings

Safety & Protection

Live Circuit Warning: Audible beep and flashing symbol for 0-600V AC detection
Automatic Discharge: Releases stored charges when test button is released to prevent electrical shock

User-Friendly Interface

Bargraph Display: Visualizes insulation resistance for quick assessments
Digital Readout: Displays AC voltage (0-600V) with ±5% accuracy and live voltage warnings

Durable Design

IP54 Rating: Protects against dust and water splashes for field use
Safety Compliance: IEC 61010-1 CAT III 300V, Pollution Degree 2, and IEC 61557-1/2/4 certifications

Technical Specifications

AC Voltage Range	0 - 600V AC
Accuracy	±5%rdg±3dgt
Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61010-2-031 IEC 61557-1/2/4
IP Rating	IEC 60529-IP54
EMC Standard	IEC 61326-1
Power Source	R6 (AA) (1.5V) × 8
Dimensions	167(L) × 185(W) × 89(D)mm
Weight	970g approx

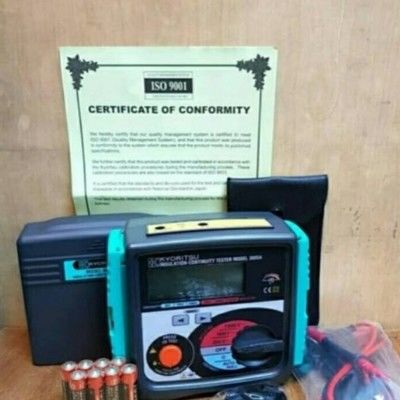

Included Accessories	7122B (Test leads) Pouch for test leads, 8923 (F500mA/600V fuse) × 2, Shoulder Strap, Instruction Manual
