Name: Omron MY2-GS 24VDC General-Purpose Relay DPDT 5A
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: MY2-GS
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Omron MY2-GS 24VDC General-Purpose Relay DPDT 5A

Omron MY2-GS 24VDC relay

DPDT general-purpose relay

5A power relay

Brand Name:

Omron

Certification:

Model Number:

MY2-GS

Request A Quote

Product Details

Coil Ratings:

24 VDC 36.3 MA

Coil Resistance:

662 Ω

Maximum Voltage:

110 % (23 ℃)

Power Consumption:

Approx. 0.9 W

Highlight:

Omron General-Purpose Relay, MY2-GS General-Purpose Relay, 24VDC General-Purpose Relay

Highlight:

Omron MY2-GS 24VDC relay

DPDT general-purpose relay

5A power relay

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

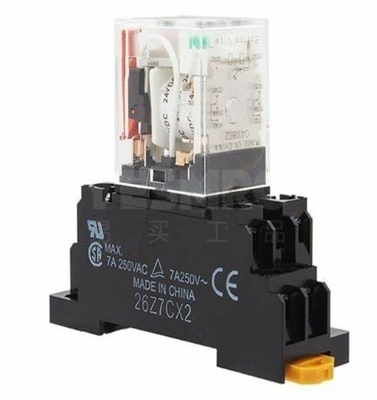

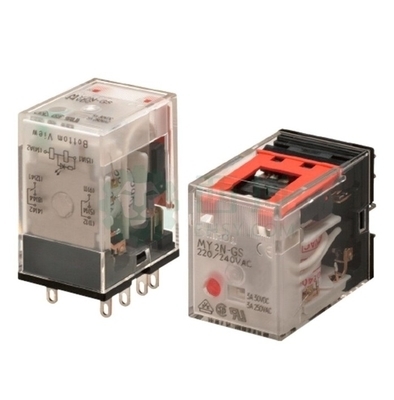

Omron MY2-GS General-Purpose Relay

Omron General-Purpose Relay, MY2-GS General-Purpose Relay, 24VDC General-Purpose Relay

Product Overview

The Omron MY2-GS is a reliable general-purpose relay with CE certification, designed for industrial and electrical applications. Operating at 24VDC with 662 Ω coil resistance, it delivers consistent performance in various conditions. Available in stock with flexible payment options.

Key Features

Stable 24VDC operation with 662 Ω coil resistance and 36.3 mA current
Durable construction with 100 million mechanical operations minimum
Wide temperature range (-55 to 70℃) and humidity tolerance (5-85%)
DPDT contact form with Ag contact material for versatile applications
Easy socket mounting compatible with multiple socket types

Technical Specifications

Electrical Characteristics

Coil Ratings	24 VDC 36.3 MA
Coil Resistance	662 Ω
Maximum Voltage	110 % (23 ℃)
Power Consumption	Approx. 0.9 W

Contact Specifications

Contact Rated Load	220 VAC 5 A (resistive), 220 VAC 2 A (inductive)
Max. Contact Voltage	250 VAC, 125 VDC
Max. Contact Current	5 A (AC/DC)
Contact Form	DPDT
Contact Material	Ag

Performance Parameters

Operating Time	20 ms max.
Reset Time	20 ms max.
Maximum Operating Frequency	18000 operations/hour (mechanical)
Insulation Resistance	≥100 MΩ (500 VDC)
Endurance	100 million operations (mechanical), 500,000 (electrical)

Ordering Information

Minimum Order Quantity	1
Price	USD$1.5
Packaging	Carton
Delivery Time	In stock
Supply Ability	500 pieces
