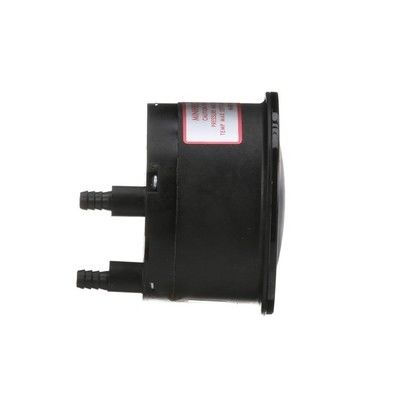

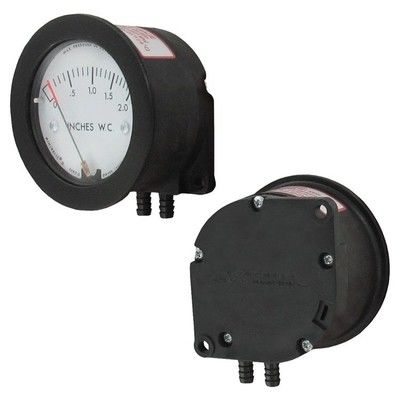

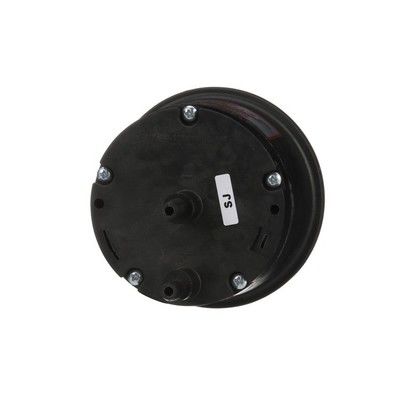

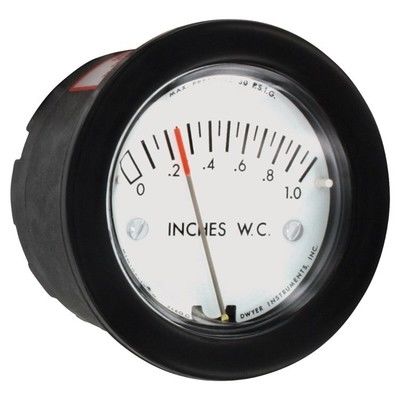

Name: SERIES 2-5000 MINIHELIC II DIFFERENTIAL PRESSURE GAGE
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 2-5000-100MM
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

SERIES 2-5000 MINIHELIC II DIFFERENTIAL PRESSURE GAGE

5000 MINIHELIC II DIFFERENTIAL PRESSURE GAGE

Brand Name:

Dwyer

Certification:

Model Number:

2-5000-100MM

Request A Quote

SERIES 2-5000 MINIHELIC II DIFFERENTIAL PRESSURE GAGE

Product Details

Warranty:

1 Year

Customized Support:

OEM ODM

Wetted Materials:

Consult Factory.

Accuracy:

±5% Of FS At 70°F (21.1°C)

Highlight:

ODM Differential Pressure Gauge

Highlight:

5000 MINIHELIC II DIFFERENTIAL PRESSURE GAGE

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

SERIES 2-5000 MINIHELIC II DIFFERENTIAL PRESSURE GAGE

Product Specifications

Attribute	Value
Warranty	1 Year
Customized Support	OEM ODM
Wetted Materials	Consult Factory
Accuracy	±5% Of FS At 70°F (21.1°C)
Highlight	ODM Differential Pressure Gauge

Product Description

The 2-5000 series Minihelic II differential pressure gauges are compact, small in size, low in price, and high in precision. They are widely used in various applications where differential pressure monitoring is required.

The Minihelic II differential pressure gauge is a full-featured analog gauge with a pressure resistance of 30psig, making it our smallest differential pressure gauge. Its compact design allows for easy panel installation through a 2-5/8" diameter round hole.

Standard push-in connector with optional 1/8" NPT male thread connector
Overpressure safety protection prevents damage below withstand voltage
Removable front and rear panels for easy access and maintenance
Fiberglass reinforced casing with plexiglass disk for durability
5% accuracy at competitive price point

Model Variations

Model	Description
2-5000-0	Differential pressure gage, range 0-0.5" w.c.
2-5001	Differential pressure gage, range 0-1.0" w.c.
2-5002	Differential pressure gage, range 0-2.0" w.c.
2-5003	Differential pressure gage, range 0-3.0" w.c.
2-5005	Differential pressure gage, range 0-5.0" w.c.
2-5010	Differential pressure gage, range 0-10" w.c.
2-5020	Differential pressure gage, range 0-20" w.c.
2-5040	Differential pressure gage, range 0-40" w.c.
2-5060	Differential pressure gage, range 0-60" w.c.
2-5100	Differential pressure gage, range 0-100" w.c.

Technical Specifications

Service: Air and compatible gases

Housing: Glass filled nylon; acrylic lens

Wetted Materials: Consult factory

Accuracy: ±5% of FS at 70°F (21.1°C)

Pressure Limits: 30 psig (2.067 bar) continuous to either pressure connection

Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)

Mounting Orientation: Diaphragm in vertical position (consult factory for other orientations)

Process Connections: Barbed for 3/16" ID tubing (standard); 1/8" male NPT (optional)

Weight: 6 oz (170.1g)

Agency Approvals: Meets EU Directive 2011/65/EU (RoHS II)

CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES

Ideal for OEM equipment including fume hoods, medical ventilators, air sampling machines, laminar flow hoods, and air handlers. The Minihelic II is suitable for applications that don't require the high accuracy and sensitivity of Magnehelic differential pressure gauges.
