Name: High precision small size refrigerant wireless pressure sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KEF Series
Price: 189.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

High precision small size refrigerant wireless pressure sensor

high accuracy pressure sensor

explosion proof pressure transmitter

Place of Origin:

China (Mainland)

Brand Name:

KACISE

Certification:

Model Number:

KEF Series

Request A Quote

High precision small size refrigerant wireless pressure sensor

Product Details

Product Name:

Pressure Transmitter

Measuring Range:

-0.1...0~0.01...100MPa

Overpressure:

200 %FS

Pressure Type:

Gauge Pressure

Accuracy:

±0.25%FS

Power Supply:

12~30V

Output Signal:

0~5V /0~10V

Long-term Stability:

0.2%FS/year

Highlight:

high accuracy pressure sensor

explosion proof pressure transmitter

Payment & Shipping Terms

Minimum Order Quantity

1 Piece/Pieces

Price

USD80-299

Packaging Details

carton or customers requests available

Delivery Time

Shipped in 7 days after payment

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

3000Piece/Pieces per Month

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price

86--17719566736

Contact Now

Product Description

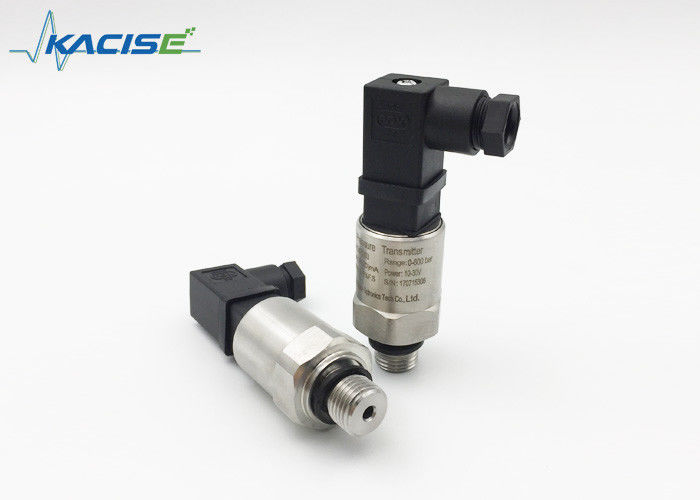

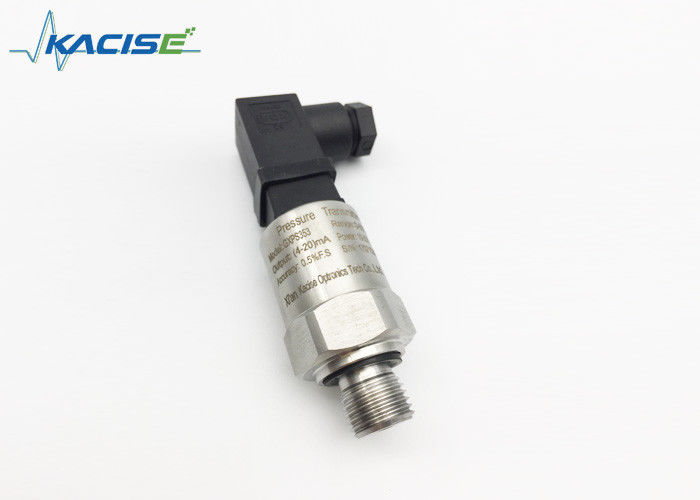

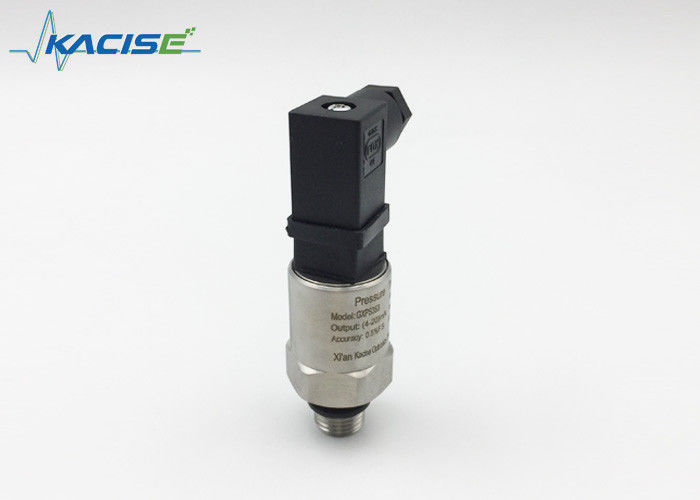

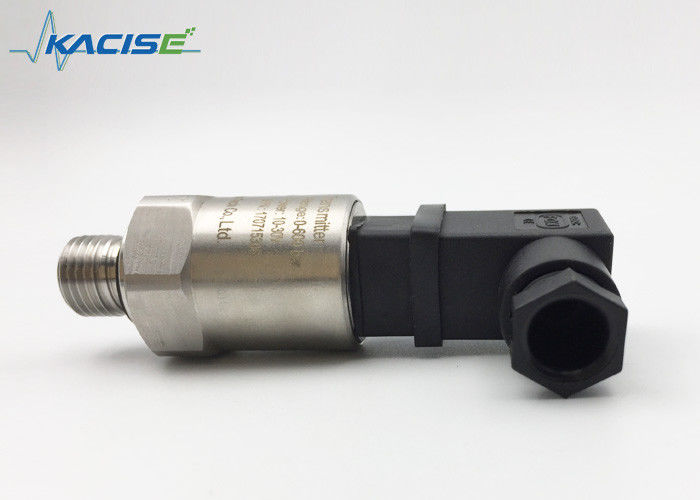

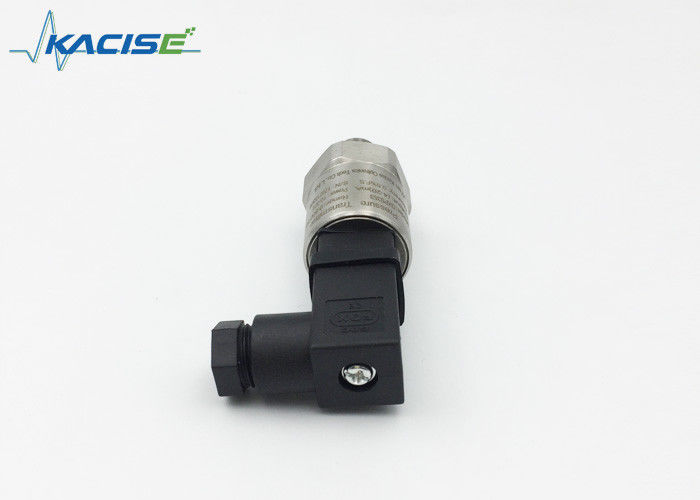

High precision small size refrigerant wireless pressure sensor

High precision small size refrigerant wireless pressure sensor 0

Product Description

High precision small size refrigerant wireless pressure sensor 1

Introduction

GXPS353 series pressure transmitter is a high-volume, low cost OEM, civil & industrial use, high-quality, high-reliability products. Small size, light weight, compact structure, and widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and by the intrinsically safe certification and CE certification.Standard voltage current output mode.

Specification

Spec.	Value
Pressure range	0~2bar ......600bar
Load pressure	1.5 times nominal value pressure (1.5X)
Rupture pressure	3times nominal value pressure (3X)
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value 0.5%F.S, Max. value: 1%F.S
Operating temperature	-40°C~125°C
Storage temp.	-40~120℃
