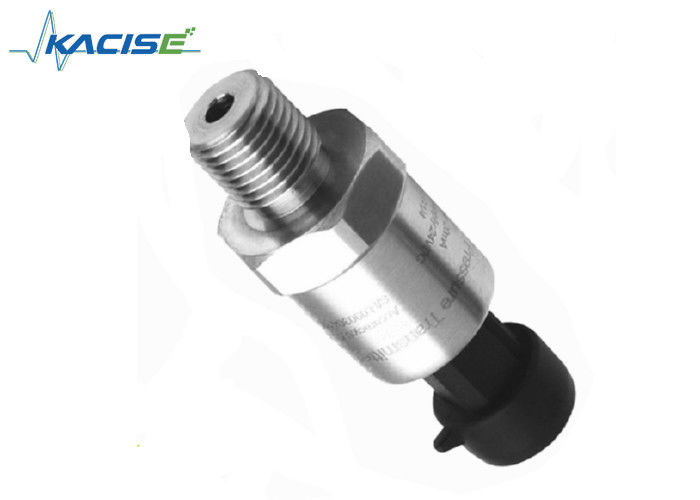

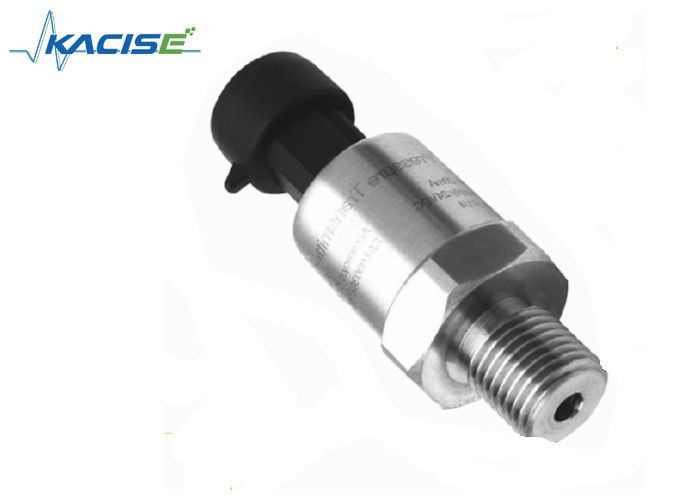

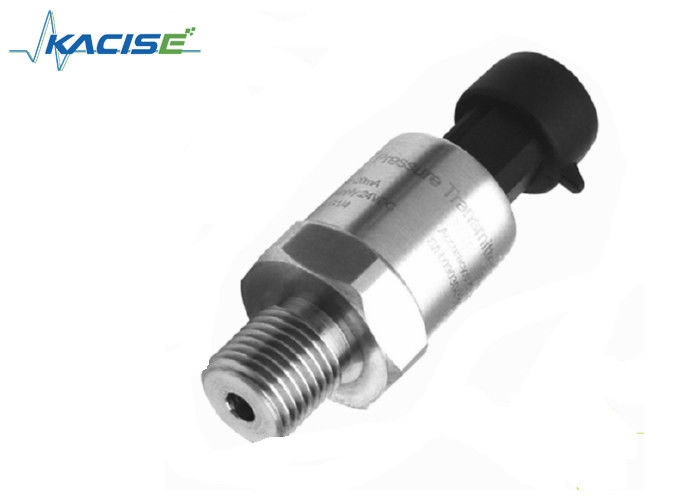

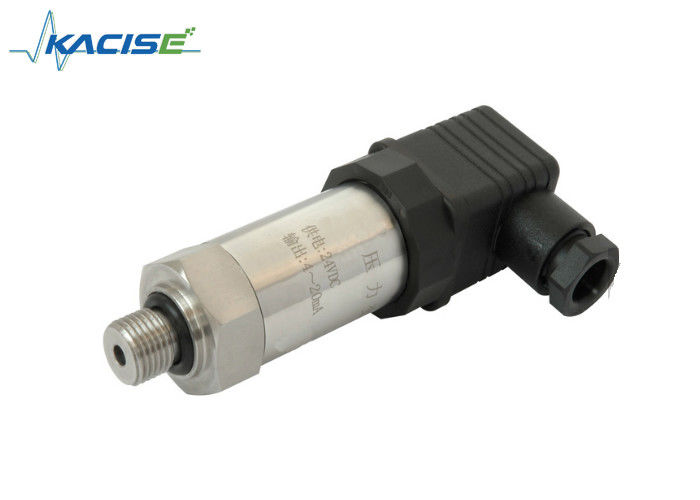

Compact design of precision pressure sensor Pressure transmitter air compressor hydraulic control 4-20mA output

Compact design of precision pressure sensor Pressure transmitter air compressor hydraulic control 4-20mA output

  • Compact design of precision pressure sensor Pressure transmitter air compressor hydraulic control 4-20mA output
  • Compact design of precision pressure sensor Pressure transmitter air compressor hydraulic control 4-20mA output
  • Compact design of precision pressure sensor Pressure transmitter air compressor hydraulic control 4-20mA output
  • Compact design of precision pressure sensor Pressure transmitter air compressor hydraulic control 4-20mA output
Compact design of precision pressure sensor Pressure transmitter air compressor hydraulic control 4-20mA output
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: Safe explosion-proof, RoHS, CE certificate
Model Number: GXPS1100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/pieces
Price: negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 pieces per week
Contact Now
Detailed Product Description
Pressure Range: 0~5bar......50bar Accuracy: ±0.5%F.S, ±1.0%F.S , ±2.0%F.S
Operating Temperature: -40°C~120°C Output Signal: 4~20mA 0.5~4.5V
Power Supply: 10~30Vdc 10~30Vdc Electrical Performance: 2 Wire System 3 Wire System
High Light:

high accuracy pressure sensor

,

piezoresistive pressure transmitter

GXPS1100 High Stability Packard Connector Air Compressor Industry Pressure Transmitter



Application

  • Compressor
  • Floor house water supply
  • Hydraulic control
  • Air conditioning unit
  • Automobile engine
  • Automatic detection system
  • Hydraulic unit

Feature

  • Accuracy 1~4%F.S
  • High stability, high reliability
  • Imported German ceramic core body
  • Digital calibration
  • Packard connector
  • Various of pressure port selection
  • Zero can be arbitrarily displaced
  • CE, and RoHS Compliant



Introduction

Barometric sensor is an instrument used to measure the absolute pressure of a gas. It is mainly used in physical experiments related to gas pressure, such as gas law, and can also be used in biological, chemical, industrial measurement of dry, non-corrosive gas pressure.

GXPS1100 series pressure transmitter is a high-volume, low cost OEM, civil, industrial, high-quality, high-reliability products. Small size, light weight, compact structure and are widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, using tuning and digital compensation techniques, and pass the intrinsically safe certification and CE certification.

Standard voltage output, current output mode.



Electronic interface and signals definition



Compact design of precision pressure sensor Pressure transmitter air compressor hydraulic control 4-20mA output 0


Parameter



Spec. Value
Pressure range 0~5bar......50bar
Load pressure 1.5times nominal value pressure (1.5X)
Rupture pressure 3times nominal value pressure (3X)
Accuracy ±0.5%F.S, ±1.0%F.S , ±2.0%F.S
Stability Typical value 0.5%F.S, Max. value: 1%F.S
Operating temperature -40°C~120°C
Compensation temperature -10°C~80°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 wire system 3 wire system
Output signal 4~20mA 0.5~4.5V
Power supply 10~30Vdc 10~30Vdc
Load pressure (U-10)/0.02(Ω) >100kΩ
Insulation >100M Ω@50V
Electric strength 500V@60 second
Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable 2×106pressure circle @25°C
Electrical connection Packard, protection: IP65
Pressure port G1/4, NPT1/4, 7/16-20UNF
Pressure type G, Response time: 10ms
Certificate Safe explosion-proof, RoHS, CE certificate
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2



Ordering information

GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

  • Type: GXPS1100=universal type
  • Range: /0~5bar…50bar= the upper limitation of the range
  • Output: 4~20mA, 0.5~4.5Vdc,
  • Power: 10~30Vdc,
  • Pressure port: G=G1/4, N=NPT1/4, U=7/16-20UNF
  • Electric connection: P=Packard
  • Cable length: XXm=XX meter 1-100m
  • Package: Bb, Foam
