Place of Origin: | Shaanxi, China (Mainland) |
Brand Name: | Kacise |
Certification: | CE |
Model Number: | GXPS605 |
Minimum Order Quantity: | 1piece |
---|---|
Price: | negotiable |
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 Piece/Pieces per Week |
Pressure Range: | 0~2MP……100MPa | Accuracy: | ±0.5%F.S |
---|---|---|---|
Operating Temperature: | -10℃~60℃ | Power Supply: | 9VDC Battery Box 3.6VDC Primary Li Batteries |
Output Signal: | USB RS485 | Pressure Port: | M20×1.5, G1/2, NPT1/2 |
High Light: | piezoresistive pressure transmitter,explosion proof pressure transmitter |
Application
Feature
Introduction

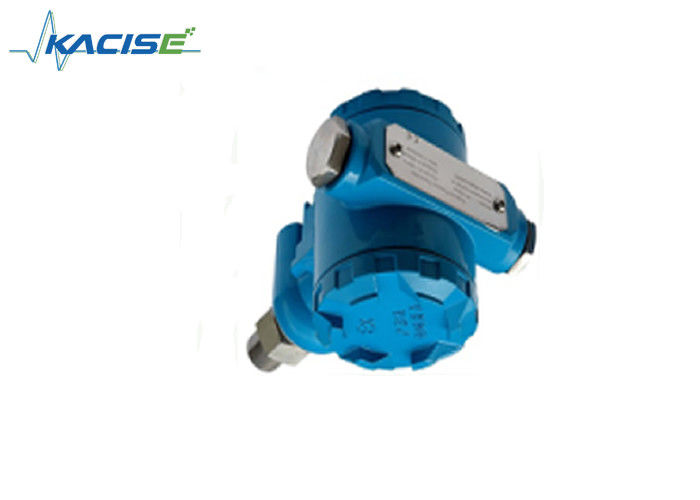

Smart Pressure memory is an intelligent, high-precision, high reliability, high stability of
the product. GXPS605A is designed for fire monitoring pipeline pressure, monitoring the
pressure changes in status of the fire pipe in 24 hours a day. Can record the scene’s
pressure value, as well as the corresponding time
Through the PC interface to set the record cycle as well as the time of calibration
Battery-powered, the longest working hours up to six months. The GXPS605B memory of
intelligent pressure increase the LCD display on the basis of the GXPS605A, mainly applied to
the field or power supply is not convenient occasion, to facilitate the implementation of the
monitoring records and displays the pressure value of the monitoring process.
Electronic interface and signals definition
GXPS605B Electrical connections | |
Connection defined | Terminal mark |
RS485+ | A |
RS485- | B |
Power | + |
Power | - |
GXPS605A The electrical connection cable for the USB standard |
Parameter
Spec. | Value | |
Type | GXPS605A | GXPS605B |
Pressure range | 0~2MP……100MPa | |
Over load safe | 1.5times nominal pressure(1.5X) | |
Secondary Containment | 3times nominal pressure(3X) | |
Accuracy | ±0.5%F.S | |
Stability | Typical 0.25%F.S/year | |
Compensated temperature range | -10℃~60℃ | |
Operating temperature | -10℃~60℃ | |
Output signal | USB | RS485 |
Power supply | 9VDC battery box | 3.6VDC Primary li batteries |
Electrical connection | USB standard line | Fixed terminals |
Min. isolation between case & terminations | >100M Ω@50V | |
Pressure port | M20×1.5, G1/2, NPT1/2 | |
Pressure type | Gage pressure, sealed gage | |
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
Ordering information
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package
