Digital DN40mm Coriolis Mass Flow Meter Explosion Proof For Hydraulic Oil

Digital DN40mm Coriolis Mass Flow Meter Explosion Proof For Hydraulic Oil

liquid mass flow meter

coriolis type mass flow meter

Place of Origin:

Shaanxi, China (Mainland)

Brand Name:

KACISE

Model Number:

KMF-Series

Contact Us
Request A Quote
Product Details
Diameter:
3~250mm
Measuring Rang:
0~1000t/h
Temperature Rating:
-50~350℃
Pressure Rating:
0~4.0MPa
Accuracy Class:
0.10~0.20%
Display:
LCD Display
Highlight:

liquid mass flow meter

,

coriolis type mass flow meter

Payment & Shipping Terms
Minimum Order Quantity
1 Piece/Pieces
Price
Negotiable
Packaging Details
carton or customers requests available
Delivery Time
Shipped in 7 days after payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
3000 Piece/Pieces per Month
Product Description

Digital LCD Display DN40mm Explosion Proof Hydraulic Oil Coriolis Mass Flow Meter

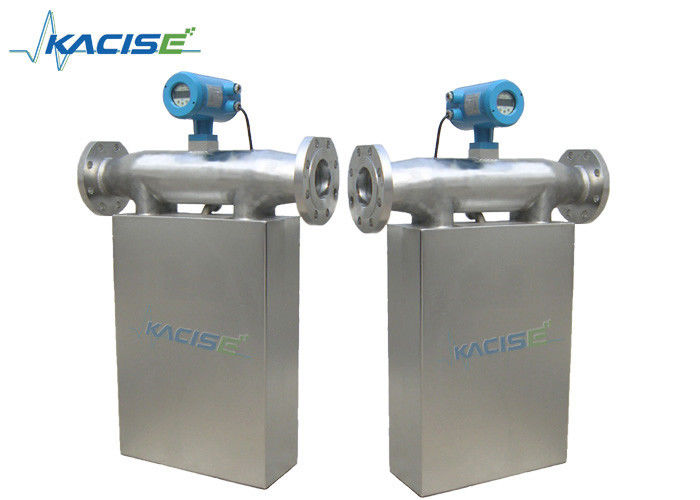

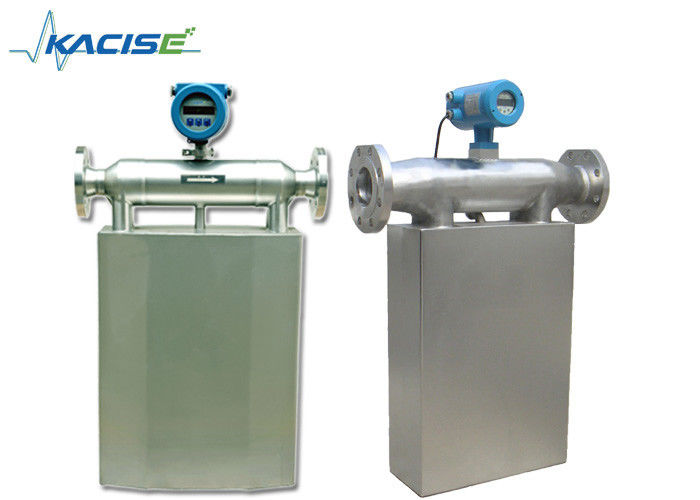

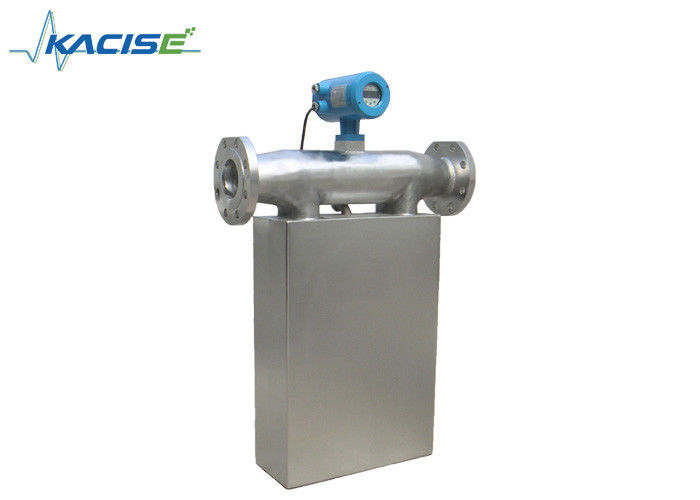

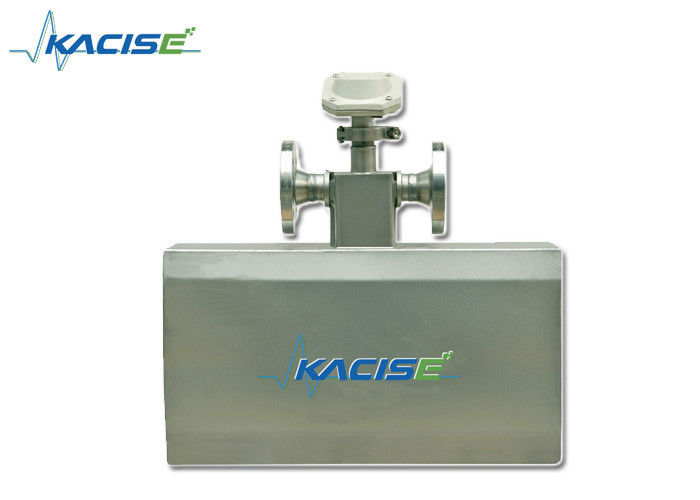

Digital DN40mm Coriolis Mass Flow Meter Explosion Proof For Hydraulic Oil 0

 Description



Explosion Proof Hydraulic Oil Coriolis Mass Flow Meter directly measures the "Mass" of the Medium with high accuracy based on the Coriolis Principle (Coriolis Force). The accuracy would not be affected by any factors like the temperature, pressure, density, viscosity,etc. And the compensation calculation is not required. The Coriolis Mass Flow Meter consists of two parts: the Sensor and the Transmitter. The Corioils Mass Flow Meter is designed and produced based on the national standard of explosion- proof standards.



Principles



The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.

A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.



Parameters



Module DN Measurement Scope Work Pressure (MPa) Connection Type(mm)
KMF-1-1AB 1.5 0~4(kg/h) 0~4 Weld Joints Φ6×1.5
KMF-1-1A 3 0~40(kg/h) 0~4 Weld Joints Φ6×1.5
KMF-1-1B 6 0~100(kg/h) 0~4 Weld Joints Φ10×2
KMF-1-2A 8 0~200(kg/h) 0~4 Weld Joints Φ10×1
KMF-1-3A 10 0~500(kg/h) 0~4 Flange DN10
KMF-1-3B 15 0~1000(kg/h) 0~4 Flange DN15
KMF-1-4 20 0~3000(kg/h) 0~4 Flange DN20
KMF-1-5A 25 0~10(T/h) 0~4 Flange DN25
KMF-1-5B 40 0~20(T/h) 0~4 Flange DN40
KMF-1-6A 50 0~30(T/h) 0~4 Flange DN50
KMF-1-6AB 65 0~50(T/h) 0~4 Flange DN65
KMF-1-6B 80 0~100(T/h) 0~2.5 Flange DN80
KMF-1-6C 100 0~150(T/h) 0~2.5 Flange DN100
KMF-1-6CD 125 0~200(T/h) 0~2.5 Flange DN125
KMF-1-6D 150 0~400(T/h) 0~2.5 Flange DN150
KMF-1-6E 200 0~500(T/h) 0~2.5 Flange DN200





Application



The KMF Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.

Alternative Energy

Oil & Gas

Chemical

Food & Beverage

Industrial Energy

Life Sciences

Marine

Metals and Mining

Power

Pulp & Paper

Refining

Water & Wastewater

Others



Instrument Selection



mass flowmeter lectotype 1mass flowmeter lectotype 2


Applied Range

Our products are widely used in petroleum, chemical, metallurgy, electricity, food, pharmaceutical, environmental protection and energy fields. More than 30 provinces and cities across the country, and exports in some countries.

Work Shop


Digital DN40mm Coriolis Mass Flow Meter Explosion Proof For Hydraulic Oil 3



our service



1. Q: May I put my own logo on the product?

A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

2. Q: How about the quality control?

A: All products will be tested for 3 times before packed.

3. Q: Could you design according to my requirements?

A: Of course, our team will design for you, to make our food grade pipe coriolis mass flow meter work perfectly at your end.

4. Q: May I release trial order, 1 pc for example?

A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.



Delivery details



7 working days quick delivery. / Suggested Express company: DHL.
