Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
KACISE
Model Number:
KMF-Series

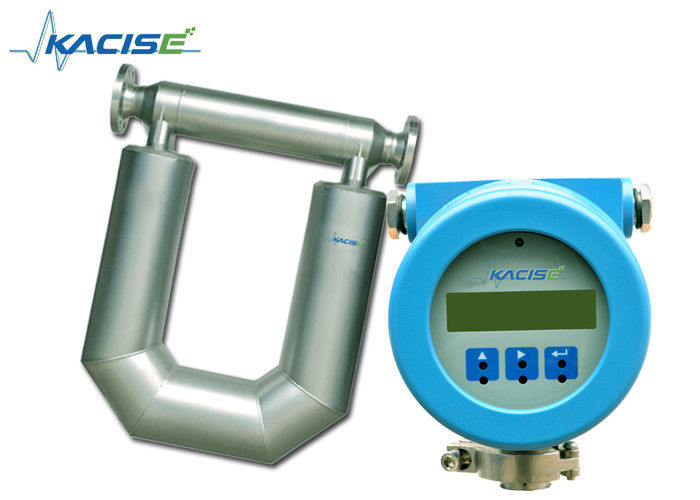

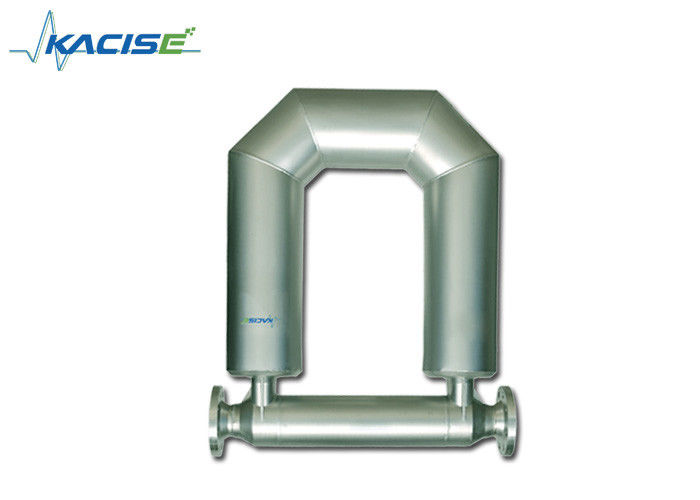

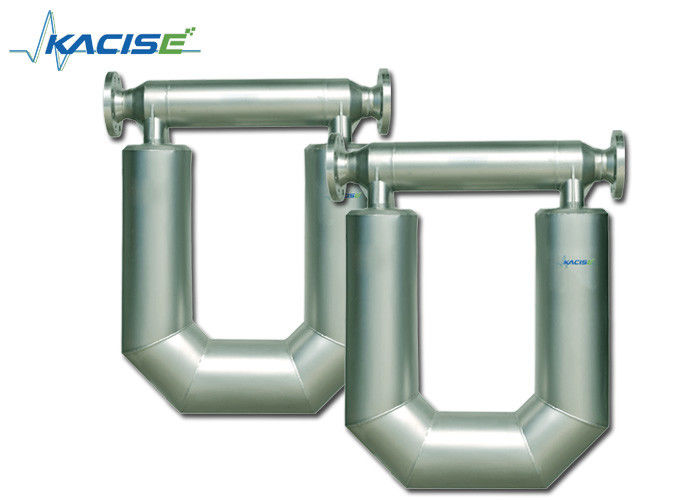

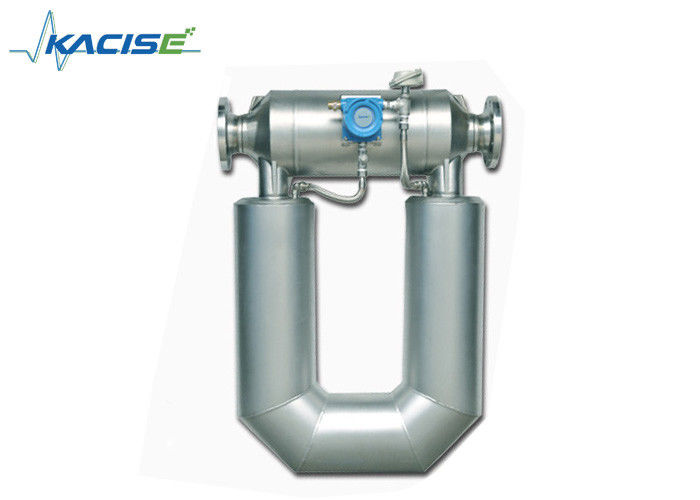

LCD Display Stainless Steel Viscous Slurry Coriolis Mass Flow Meter
Description
Viscous Slurry Coriolis Mass Flow Meter directly measures the "Mass" of the Medium with high accuracy based on the Coriolis Principle (Coriolis Force). The accuracy would not be affected by any factors like the temperature, pressure, density, viscosity,etc. And the compensation calculation is not required. The Coriolis Mass Flow Meter consists of two parts: the Sensor and the Transmitter. The Corioils Mass Flow Meter is designed and produced based on the national standard of explosion- proof standards.
Principles
The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.
A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.
Parameters
Module | DN | Measurement Scope | Work Pressure (MPa) | Connection Type(mm) |
KMF-1-1AB | 1.5 | 0~4(kg/h) | 0~4 | Weld Joints Φ6×1.5 |
KMF-1-1A | 3 | 0~40(kg/h) | 0~4 | Weld Joints Φ6×1.5 |
KMF-1-1B | 6 | 0~100(kg/h) | 0~4 | Weld Joints Φ10×2 |
KMF-1-2A | 8 | 0~200(kg/h) | 0~4 | Weld Joints Φ10×1 |
KMF-1-3A | 10 | 0~500(kg/h) | 0~4 | Flange DN10 |
KMF-1-3B | 15 | 0~1000(kg/h) | 0~4 | Flange DN15 |
KMF-1-4 | 20 | 0~3000(kg/h) | 0~4 | Flange DN20 |
KMF-1-5A | 25 | 0~10(T/h) | 0~4 | Flange DN25 |
KMF-1-5B | 40 | 0~20(T/h) | 0~4 | Flange DN40 |
KMF-1-6A | 50 | 0~30(T/h) | 0~4 | Flange DN50 |
KMF-1-6AB | 65 | 0~50(T/h) | 0~4 | Flange DN65 |
KMF-1-6B | 80 | 0~100(T/h) | 0~2.5 | Flange DN80 |
KMF-1-6C | 100 | 0~150(T/h) | 0~2.5 | Flange DN100 |
KMF-1-6CD | 125 | 0~200(T/h) | 0~2.5 | Flange DN125 |
KMF-1-6D | 150 | 0~400(T/h) | 0~2.5 | Flange DN150 |
KMF-1-6E | 200 | 0~500(T/h) | 0~2.5 | Flange DN200 |
Application
The KMF Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.
Alternative Energy
Oil & Gas
Chemical
Food & Beverage
Industrial Energy
Life Sciences
Marine
Metals and Mining
Power
Pulp & Paper
Refining
Water & Wastewater
Others
Instrument Selection
our service
1.Q: May I put my own logo on the product?
A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
2.Q: How about the quality control?
A: All products will be tested for 3 times before packed.
3.Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our food grade pipe coriolis mass flow meter work perfectly at your end.
4.Q: May I release trial order, 1 pc for example?
A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
Delivery details
7 working days quick delivery. / Suggested Express company: DHL.
