|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||each unit has individual box and all boxes are packed in standard packages or customers requests available|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||2000 pieces per week|
|Accuracy:||±0.5% Of F.S||Pressure Range:||0~0.2MPa......60MPa; 2bar…600bar 29psi…8700psi; 20000MmH20…6118000mmH2O 1.97atm…592stm|
|Display Panel:||No Display||Media:||Compatible With Stainless Steel 1Cr18Ni9Ti|
|Surge Immunity:||500V@60 Second||Power Supply:||3.6V/1bettery（1 Pcs）|
wireless pressure sensor,
wireless pressure switch
Pressure transmitter is a device that converts pressure into pneumatic signal or electric signal for control and remote transmission.
It can convert the physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.) to supply secondary instruments such as indicator alarm, recorder, regulator, etc. for measurement, indication and process adjustment.
Pressure transmitter is the most commonly used sensor in industrial practice. It is widely used in various industrial automation environments, including water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries.

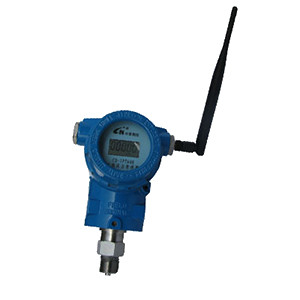

GX-iPS600-8A/8B series of low-power wireless pressure transmitter is a battery-powered LCD display, real-time data precision smart pressure measurement instruments; embedded Zigbee wireless communication module using the Zigbee protocol standard 2.4GHzRF transceiver, CSMA / CA anti-collision mechanism effectively avoid channel blocking send data at the same time and data loss.
It uses the 1# battery dry cell to supply the power, low-power design, the service life can up to six months or more.
Electronic interface and signals definition
|Over pressure safe||1.5 times span of nominal value|
|Secondary Containment||3 times span of nominal value|
|Accuracy||±0.5% of F.S|
|Long term stability||0.25%F.S/Year|
|Compensated temperature range||-10°C~60°C|
|Media||compatible with Stainless Steel 1Cr18Ni9Ti|
|Data transmission channel||Wireless ZIGBEE|
|Power supply||3.6V/1bettery(1 pcs)|
|Minimum isolation between case and terminations||100M Ω@50V|
|Surge immunity||500V@60 second|
|Shock and vibration||10g/5~2000Hz, axes X/Y/Z20g sine 11ms|
|Display panel||No display||0.001~999999|
|Pressure Port:||M20×1.5, G1/4, G1/2, R1/2, NPT1/2|
|Pressure type||Gauge, compound Gauge||React time: 10ms|
|EMI/EMC||EMI: EN50081-1/-2; EMC: EN50082-2|
