Place of Origin:
China
Brand Name:
Kacise
Certification:
CE
Model Number:
GX-iPS600-8B
Application
Feature
Introduction

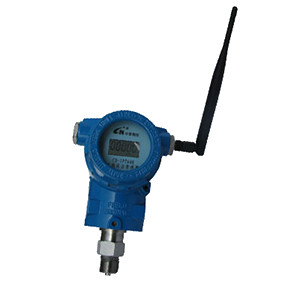

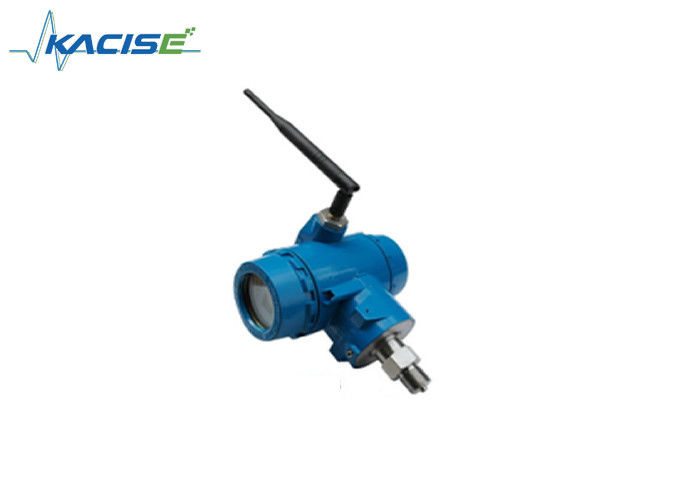

GX-iPS600-8A/8B series of low-power wireless pressure transmitter is a battery-powered LCD display, real-time data precision smart pressure measurement instruments; embedded Zigbee wireless communication module using the Zigbee protocol standard 2.4GHzRF transceiver, CSMA / CA anti-collision mechanism effectively avoid channel blocking send data at the same time and data loss.
It uses the 1# battery dry cell to supply the power, low-power design, the service life can up to six months or more.
Electronic interface and signals definition
Parameter
| Spec. | Value | ||
| Type | GXiPS600-8A | GXiPS600-8B | |
| Pressure range |
0~0.2MPa......60MPa; 2bar…600bar 29psi…8700psi; 20000MmH20…6118000mmH2O 1.97atm…592stm |
||
| Over pressure safe | 1.5 times span of nominal value | ||
| Secondary Containment | 3 times span of nominal value | ||
| Accuracy | ±0.5% of F.S | ||
| Long term stability | 0.25%F.S/Year | ||
| Operate temperature | -10°C~60°C | ||
| Compensated temperature range | -10°C~60°C | ||
| Media | compatible with Stainless Steel 1Cr18Ni9Ti | ||
| Data transmission channel | Wireless ZIGBEE | ||
| Power supply | 3.6V/1bettery(1 pcs) | ||
| Minimum isolation between case and terminations | 100M Ω@50V | ||
| Surge immunity | 500V@60 second | ||
| Shock and vibration | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||
| Display panel | No display | 0.001~999999 | |
| Pressure Port: | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | ||
| Pressure type | Gauge, compound Gauge | React time: 10ms | |
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
