Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
kacise
Certification:
CE
Model Number:
GXPS480
Application
Feature
Introduction

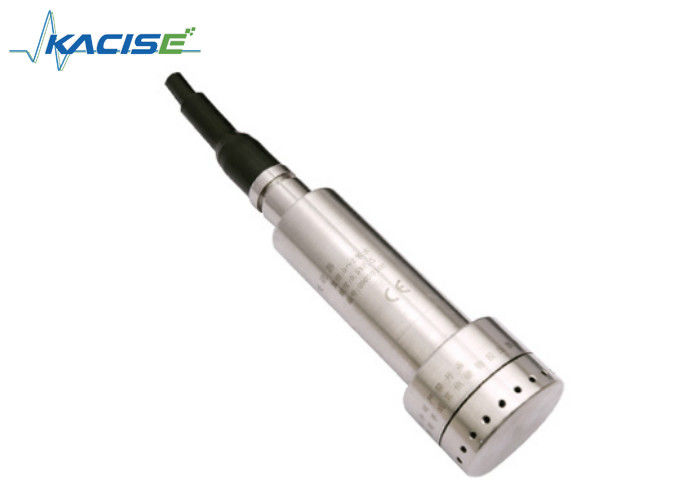

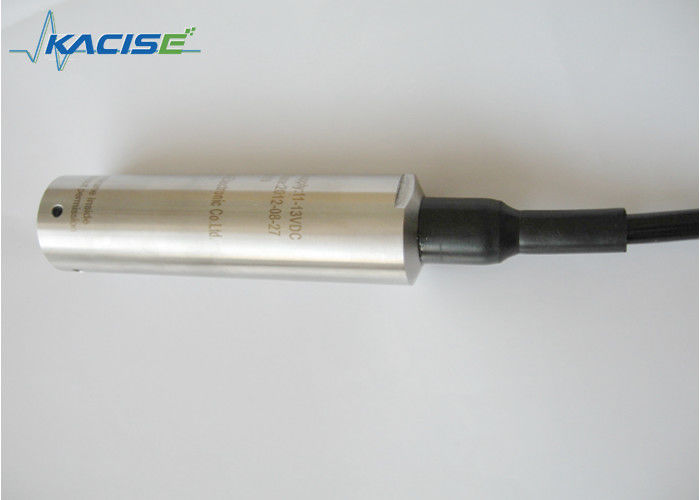

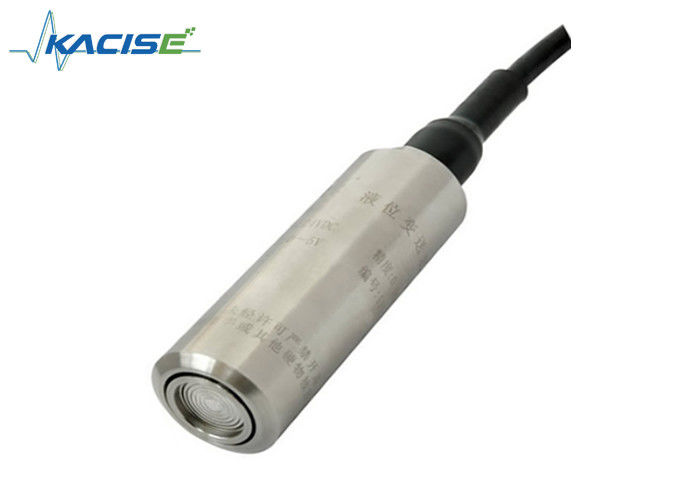

GXPS480 pressure transmitter has high reliability, high stability, with the characteristics of the
digital output. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive
liquids and gases. The series uses 1Cr18Ni9Ti stainless steel structure, RS485 output.
| Direct lead way electrical connections | |
| Connection definition | Cable color |
| RS485+ | White |
| RS485- | Blue |
| Power | Red |
| Power ground | Black |
| Shield | Yellow |
Electronic interface and signals definition
Parameter
| Spec. | Value | |
| Pressure range | 0~2….200mH2O/ 0–2bar~0~200bar | |
| Load pressure | 1.5times nominal value pressure (1.5X) | |
| Rupture pressure | 3times nominal value pressure (3X) | |
| Accuracy | ±0.5%F.S | |
| Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S | |
| Operating temperature | －40℃~85℃ | |
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |
| Output signal | RS485 | |
| Power supply | 10~30Vdc | |
| Insulation | ＞100M Ω@50V | |
| Electrical connection | water proof cable | |
| Pressure port | Submersible, thread, M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |
| Pressure type | G, S | Response time: 10ms |
| Certificate | Intrinsically safe mode E, CE | |
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |
