Long Service Life Gas Vortex Flow Meter With Stable Performance CE Approval

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Certification:	CE
Model Number:	KVF Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time:	8
Payment Terms:	Western Union, T/T
Supply Ability:	2000 pieces per week

Contact Now

Detailed Product Description

Material:	SST	Medium:	Air Oxygen,coal Gas Natural Gas
Accuracy:	1.0	Output:	4-20ma, HART, Modbus, RS485, RS232 Options
Power Supply:	12~28VDC,85~265VDC	Operating Condition:	Temperature: -25℃~60℃ Humidity: 5%~9
High Light:	compressed air flow meter , insertion type flow meter

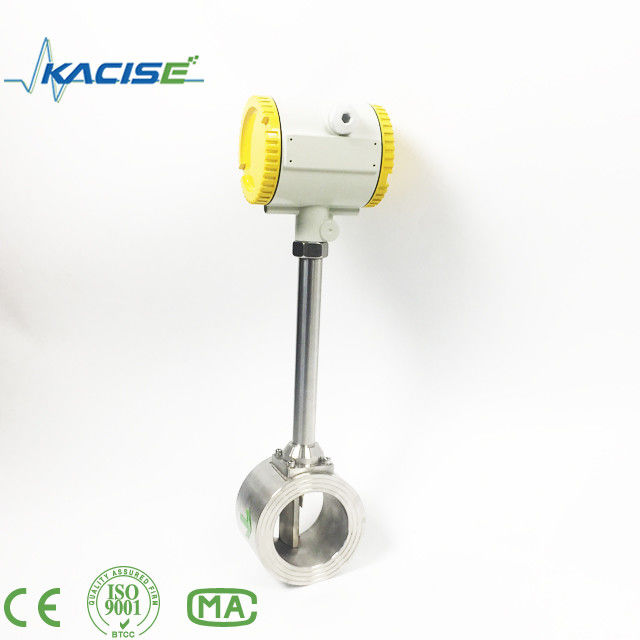

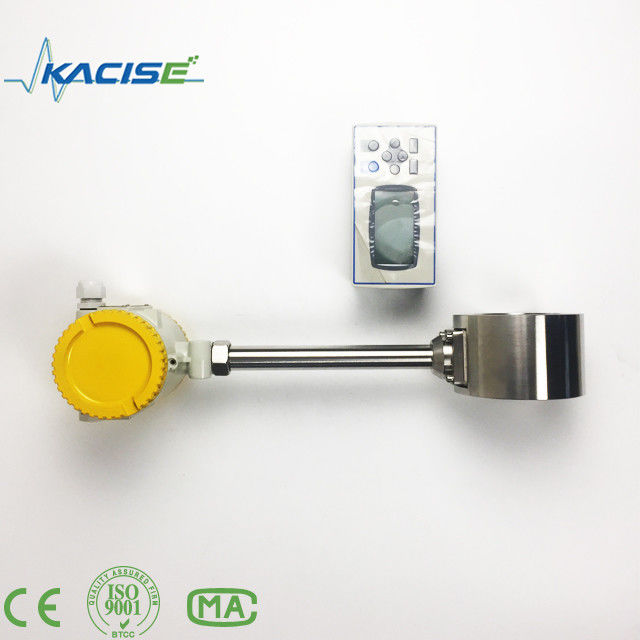

Gas Vortex Flow meter

Name: Long Service Life Gas Vortex Flow Meter With Stable Performance CE Approval
Brand: Kacise
SKU: KVF Series
Rating: 4.8 (146 reviews)

Application

Air, compressed air, oxygen, nitrogen, coal gas, natural gas, chemical gas, etc.

Feature

1. Without movable parts and adopt simple structure, it is very easy to install and maintain the product.
2. Sensor output is with pulse signal, there is a linear relation between frequency of the signal and actual flow rate
of the medium. The product is with stable performance and no zero drifting, offering pipe and insertion sensor type
options.
3. Wide measurement range, the highest range ratio could reach to 20:1
4. Low pressure loss and consumption.
5. Measure components will not contact with medium, which helped the product to maintain stable performance
and long service life.
6. Assemble with anti-interference circuit and anti-vibration sensors, which could ensure anti-vibration
performance of the product

Introduction

Vortex flowmeter is based on the principle of Karman vortex
research and production, mainly for
industrial pipe flow measurement fluid medium, such as a gas, liquid,
steam and other media. It features a small pressure loss, large
measuring range, high accuracy in the measurement of actual volume
flow is hardly affected by fluid density, pressure, temperature, viscosity
and other parameters. No moving mechanical parts, so high reliability
and low maintenance. Instrument parameters can be long-term stability.
Vortex flowmeter piezoelectric stress sensors, high reliability, can work
within the operating temperature range of -20 ℃ ~ + 250 ℃ for.
Standard analog signals, digital pulse signal output, easily with
computers and other digital systems supporting the use of a more
advanced and ideal measuring instruments.

Parameter

Item	Data
Medium	Air, compressed air, oxygen, nitrogen, coal gas, natural gas, chemical gas, etc.
Accuracy	Pipe type: Class 1.0 Insertion type: Class 2.5
Medium temperature	-40℃~+400℃
Nominal pressure	≤1.6Mpa (offer ≤2.5Mpa and ≤4.0Mpa customization)
Flow rate	5-60m/s
Output	Voltage pulse, 4-20mA output, HART, Modbus, RS485, RS232 options.
Installation	Flange, clamp flange, insertion, threat, clamp connection
Power	12~28VDC;85~265VAC (Remote display);3.6V lithium battery (on site display)
Operating condition	Temperature: -25℃~60℃ Humidity: 5%~90%

Flow rate

DN(mm)	liquild		Gas
DN(mm)	normalized form	extensive form	Gas
15 (1/2’’)	0.8~6	0.5~8	6~40	5~50
20 (3/4’’)	1~8	0.6~12	8~50	6~60
25 (1’’)	1.5~12	0.8~16	10~80	8~120
40 (11/2’’)	2.5~30	2~40	25~200	20~300
50(2’’)	3~50	2.5~60	30~300	25~500
65 (2 1/2’’)	5~80	4~100	50~500	40~800
80(3’’)	8~120	6~160	80~800	60~1200
100 (4’’)	12~200	8~250	120~1200	100~2000
125 (5’’)	20~300	12~400	160~1600	150~3000
150(6’’)	30~400	18~600	250~2500	200~4000
200(8’’)	50~800	30~1200	400~4000	350~8000
250(10’’)	80~1200	40~1600	600~600	500~12000
300(12’’)	100~1600	60~2500	1000~10000	600~16000
400(16’’)	200~3000	120~5000	1600~16000	1000~25000
500(20’’)	300~5000	200~8000	2500~25000	1600~40000
600(24’’)	500~8000	300~10000	4000~40000	2500~60000

Selection

KVF Series											Note
Nominal diameter	DNX X										DN15~DN1800 (mm)
Structure		F									Remote type with display
		Y									Compact type with display
Accuracy			A								Pipe type: Class 1.0
			B								Insertion type: Class 2.5
Nominal pressure				16							1.6Mpa
				XX							Customization
Max. temp. of medium					M						<250℃
					H						>250℃
Other function						P					With pressure compensation
						T					With temperature compensation
						PT					With pressure and temperature compensation
Power							1				12~28VDC
							2				3.6V lithium battery (on site display)
							3				85~265VAC (Remote display)
Output								A			4-20mA
								M			Voltage pulse
								H			HART
								R1			RS232
								R2			RS485
Installation									1		Flange
									2		Clamp flange
									3		Insertion
									4		Thread
									5		Clamp
Explosion proof										A	No explosion proof
										B	Intrinsic explosion proof
										G	Flame proof
