| Place of Origin: | CHINA |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | GXPS400M |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD50-150/pcs |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 3-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 1000000pcs/month |
| Range: | 0~200m | Accuracy: | ±0.1%F.S, ±0.25%F.S, ±0.5%F.S |
|---|---|---|---|
| Output: | 4-20mA, 0/1~5V, 0-10V | Power Supply: | 11~30Vdc |
| High Light: | piezoresistive pressure transmitter,explosion proof pressure transmitter |
||

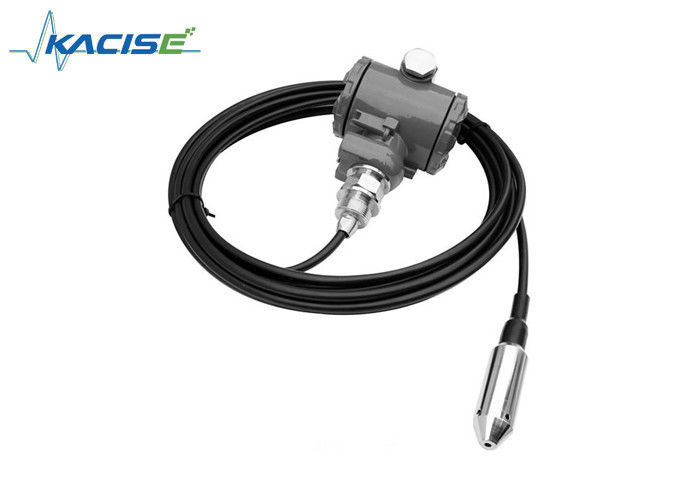

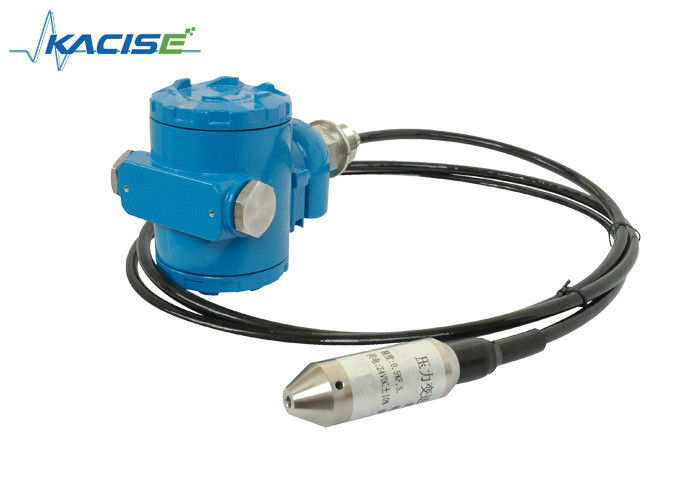

GXPS400M Split Type High Accuracy Liquid Level Sensor
GXPS400M is a split type liquid level sensor with stable performance, high accuracy and small size. It is widely used for the liquid level measurement of minor diameter tubes and tanks and can measure the level of water, oil and mildly corrosive liquids.
It uses 1Cr18Ni9Ti stainless steel material and branded oil-filled pressure core. It adopts professional amplier and V/I transmitter to convert circuit, making sure easy calibration and remote control of the zero scale and full scale.
Hard-wearing, oil-resistance, acid & alkali resistant and high-strength cable are available to meet the requirements of different applications.
It has passed the intrinsically safe test, explosion-proof test and CE.
1. Technical Features:
2. Electrical Interface & Signal Definition:
3. Technical Specification:
| Specs | Value |
| Pressure Voltage | 0~200m (1mH₂O≈9.81kPa) |
| Accuracy | ±0.1%F.S, ±0.25%F.S, ±0.5%F.S |
| Medium Temperature | -40℃~85℃ -40℃~125℃ (customized) |
| Compensation Temperature | -10℃~70℃ Full temperature compensation (cutomized) |
| Medium | All corrosive Medium Compatible with 1Cr18Ni9Ti and 316L |
| Output Signal | 4-20mA, 0/1~5V, 0-10V |
| Power Supply | 11~30Vdc |
| Pressure Interface | Submersible type, thread G1/4 type |
| Certificates | Intrincically safe, Isolation explosion-proof, CE (optional) |
| Electromagnetic Compatiblity | EMI: EN50081-1/-2, EMC: EN50082-2 |
4. Model Selection:
| Model | |||||||
| GXPS400 | Split type | ||||||
| Range | |||||||
| 0~1……200mH2O | 19 measurement units are available such as inch, feet, etc | ||||||
| Output Signal | |||||||
| A | 4-20mA | ||||||
| V | 0~5V | ||||||
| V1 | 1~5V | ||||||
| V2 | 0~10V | ||||||
| Other | Can be customized | ||||||
| Accuracy | |||||||
| 0.1 | ±0.1%F.S | ||||||
| 0.25 | ±0.25%F.S | ||||||
| 0.5 | ±0.5%F.S | ||||||
| Other | Can be customized | ||||||
| Power Supply | |||||||
| V | 11~30Vdc | ||||||
| Other | Can be customized | ||||||
| Pressure Interface | |||||||
| T | Submersible | ||||||
| Other | Can be customized | ||||||
| Cable length | L=Range + 1 | ||||||
5. Applications:
6.Company Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
